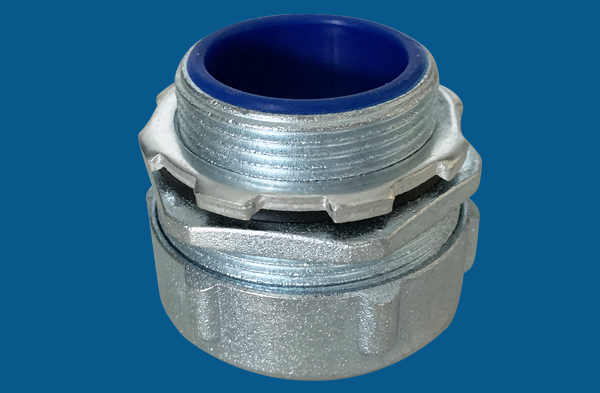

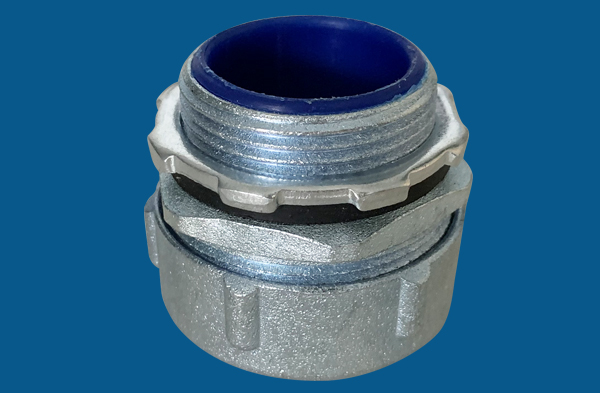

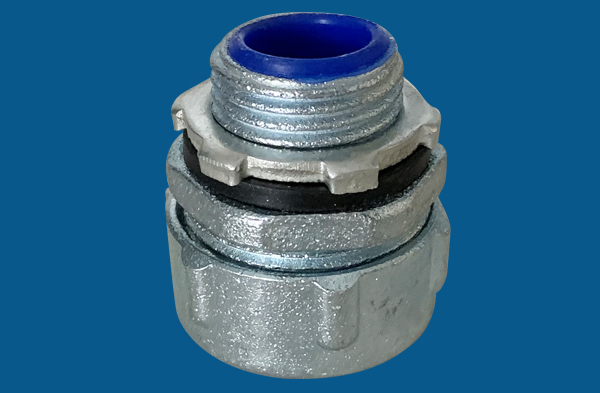

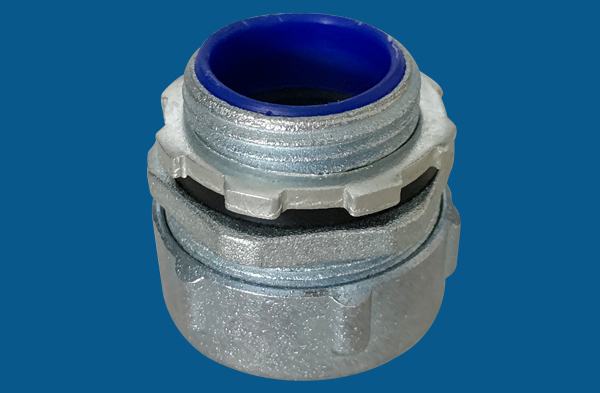

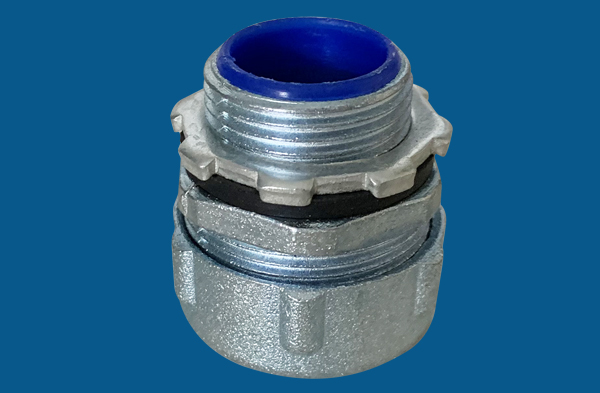

IEC Zinc Liquid Tight Connector Straight Type

Material : Zinc die cast

Surface Finish : Polishing

Type : Straight type

ELECMAN ® IEC Zinc Liquid Tight Connector

PRODUCT: IEC Zinc Liquid Tight Connector

MATERIAL: Zinc die cast

TYPE: Straight type



IEC Zinc straight liquid tight connectors are used to terminate and seal liquidtight flexible metal conduit to either olitight,liquidtight or raintight box or enclosure,connectors can be used with tapered thread female entry or unthreaded knockout using the provided sealing washer and lockut


·Zinc die cast body, aluminum cover, neoprene gasket and steel screws

·Easy to pull the wire when install

·Assembled with zinc die cast locknut

·Threaded ends (METRIC)

·Manufactured in accordance with IEC61386-1


CAT#Trade size
LLTS2020 mm
LLTS2525 mm
LLTS3232 mm
LLTS4040 mm
LLTS5050 mm
LLTS6363 mm
LLTS7575 mm
LLTS9090 mm
LLTS110110 mm



INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
