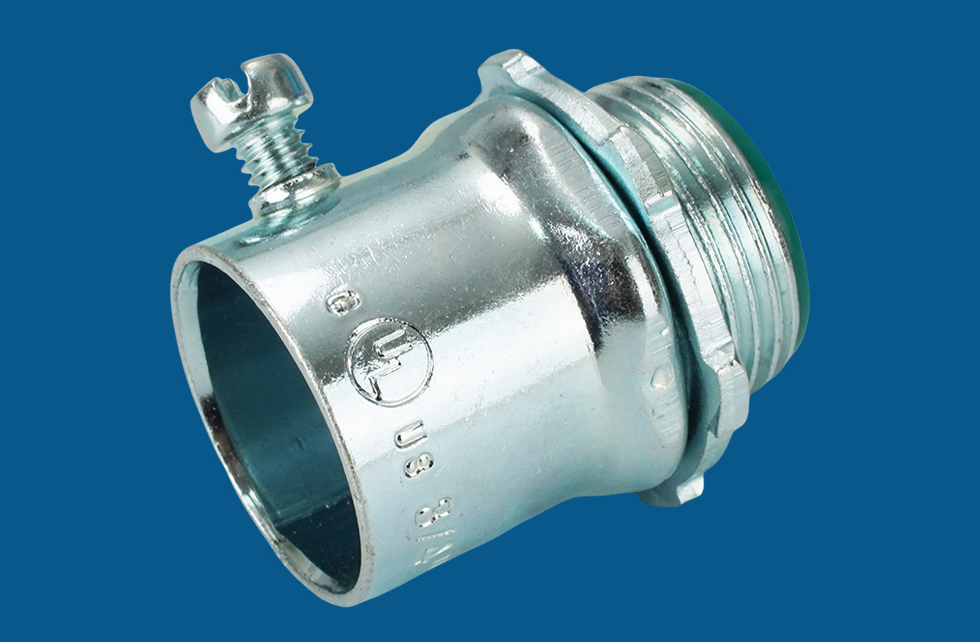

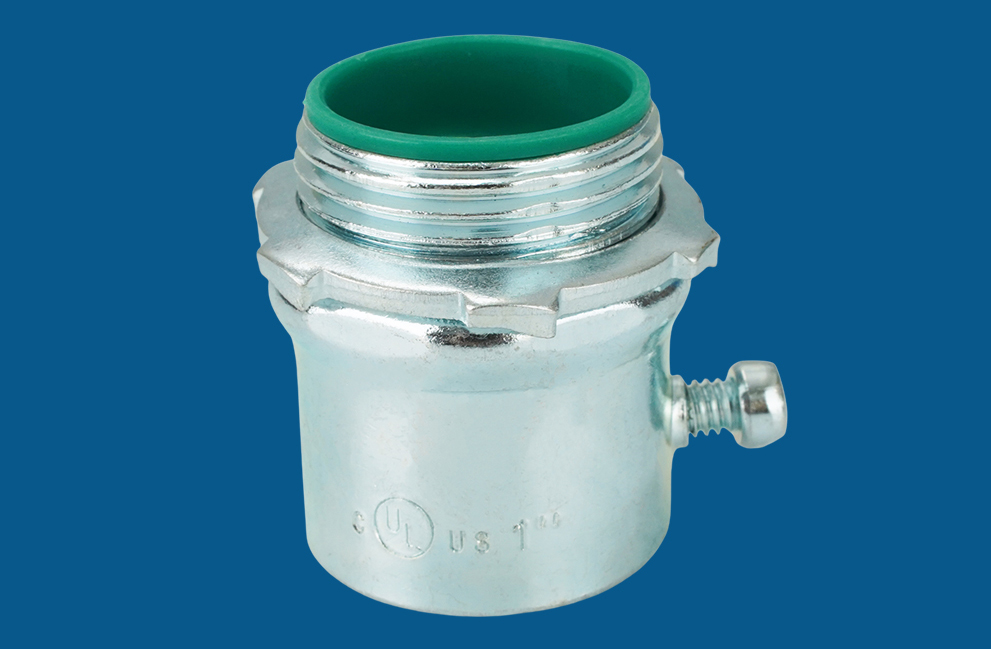

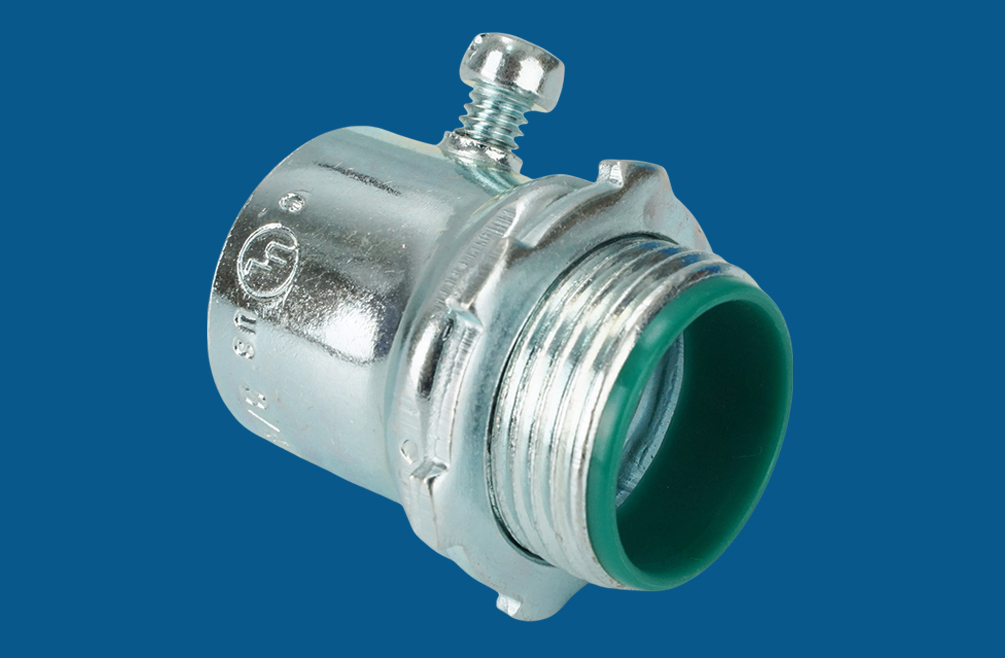

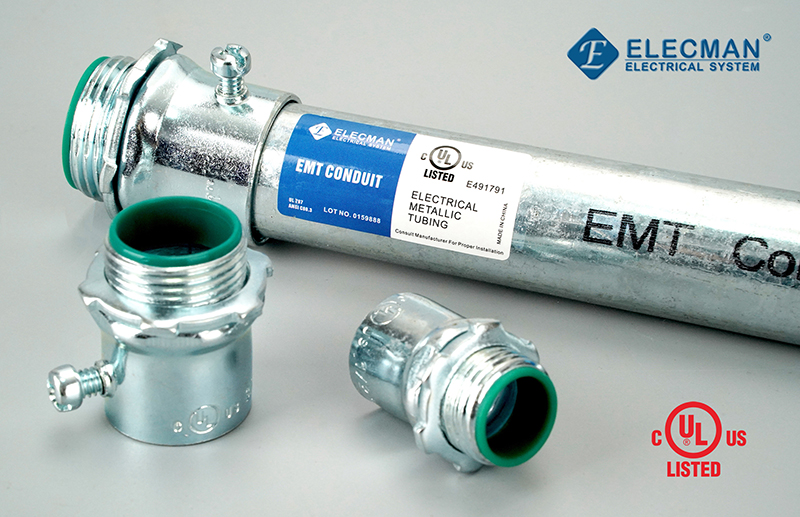

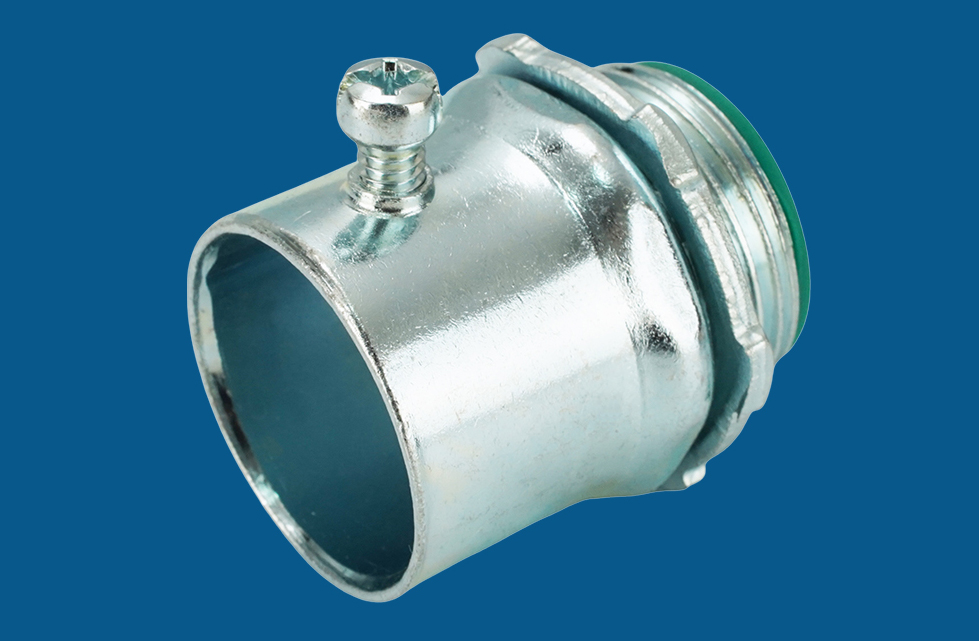

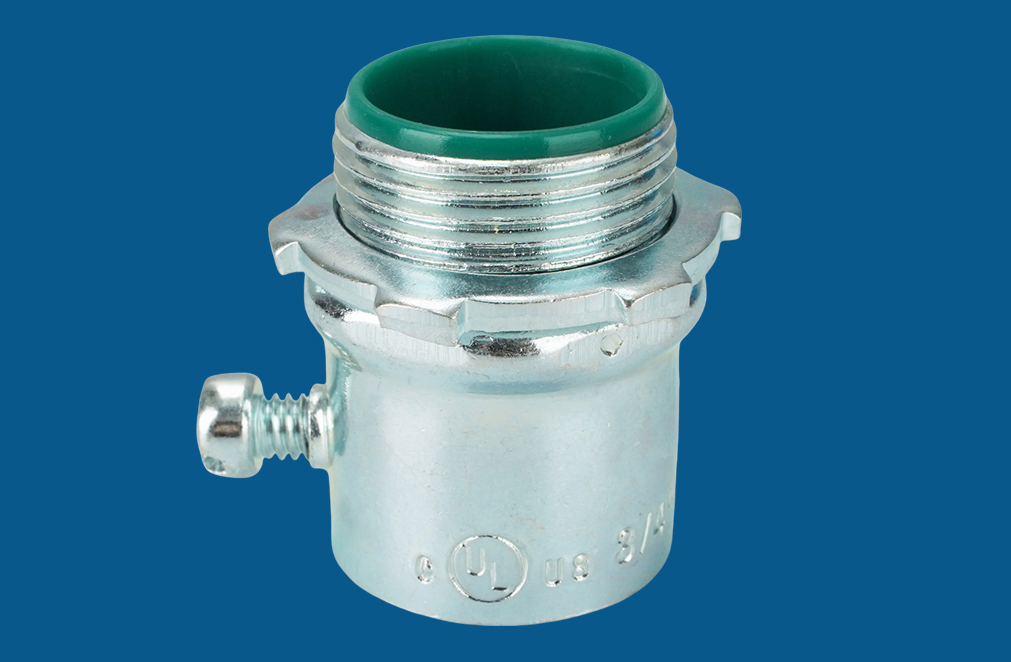

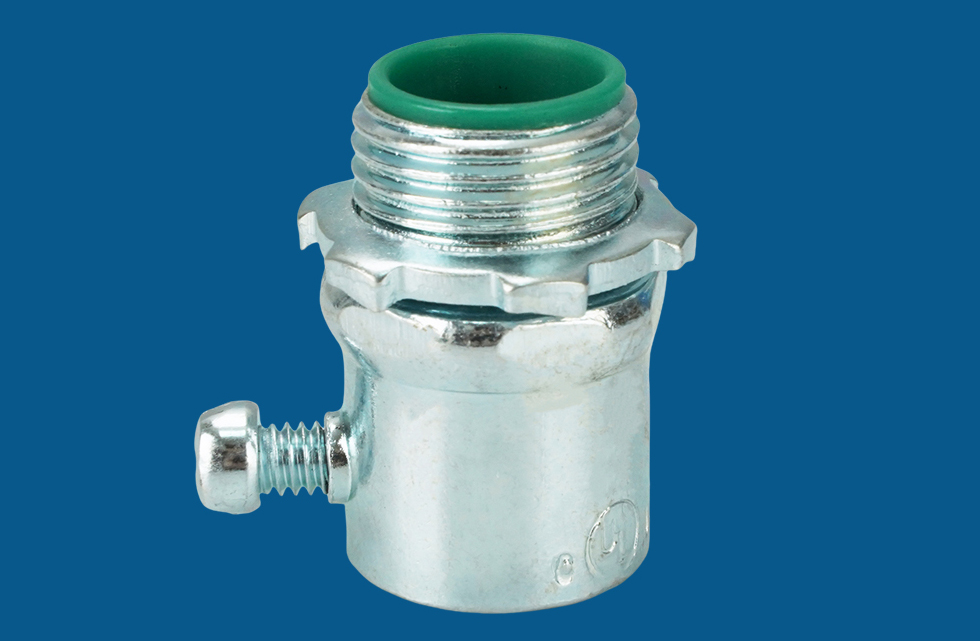

Steel EMT Connector Set Screw Insulated Type
Material : Steel
Surface Finish : Electro-galvanized
Type : Insulated , Set screw type
ELECMAN ® Steel EMT Connector Set Screw Insulated Type
PRODUCT: EMT connector
MATERIAL: Steel
TYPE: Set screw type,Insulated
APPLICATION:
For use in dry locations to economically bond EMT conduit to a box or enclosure
FEATURES:
·All steel construction insures mechanical protection for the raceway
·Provide concrete-tight connections when taped
·Male hub treads NPS
·All components are zinc electro-plated for corrosion protection.
·Insulated type
COMPLIANCE:
UL certification
File No.: E513114
| CATALOG NUMBER | TRADE SIZE | INNER PACK | MASTER PACK | WEIGHT PER C |
| ISCON050 | 1/2" | 50 | 500 | 19.55 |
| ISCON075 | 3/4" | 25 | 250 | 13.00 |
| ISCON100 | 1" | 50 | 200 | 17.30 |
| ISCON125 | 1-1/4" | 25 | 100 | 16.20 |
| ISCON150 | 1-1/2" | 10 | 100 | 18.50 |
| ISCON200 | 2" | 5 | 50 | 12.50 |
| ISCON250 | 2-1/2" | 12 | 6.75 | |
| ISCON300 | 3" | 12 | 8.80 | |
| ISCON325 | 3-1/2" | 6 | 5.10 | |
| ISCON400 | 4" | 6 | 5.80 |
PACKING INFORMATION:
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
Other names: insulated EMT connector, insulated EMT connector set screw type, Steel connector insulated type, EMT insulated connector.
EMT CONNECTORS AND COUPLINGS UL CERTIFICATION.pdf
