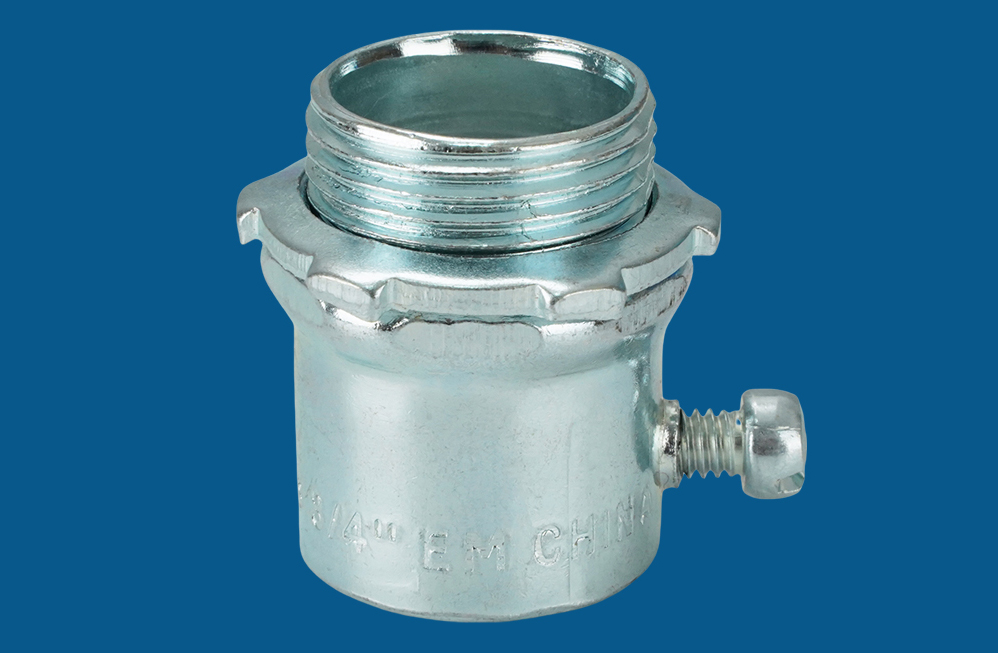

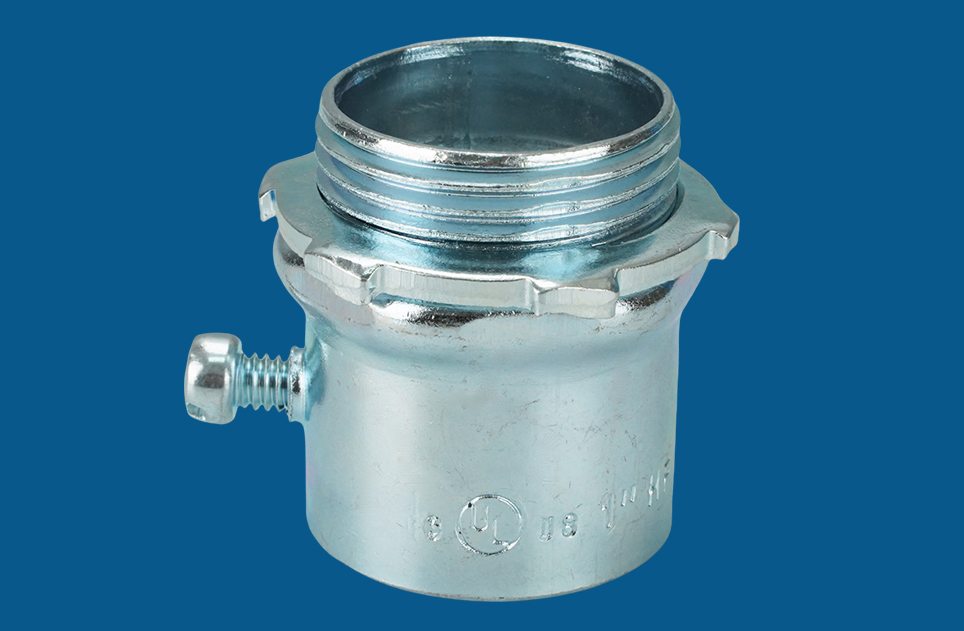

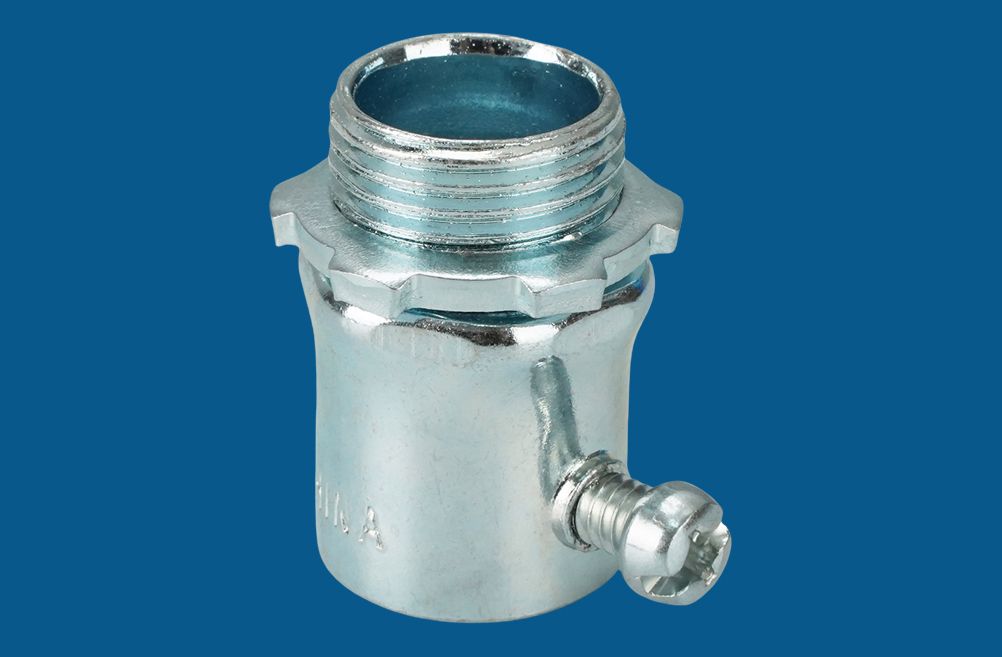

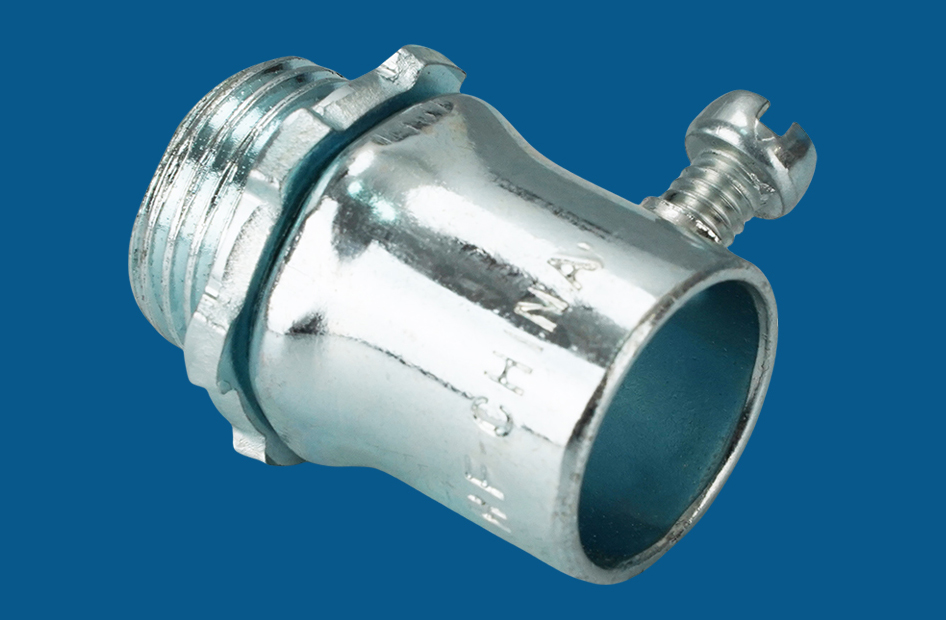

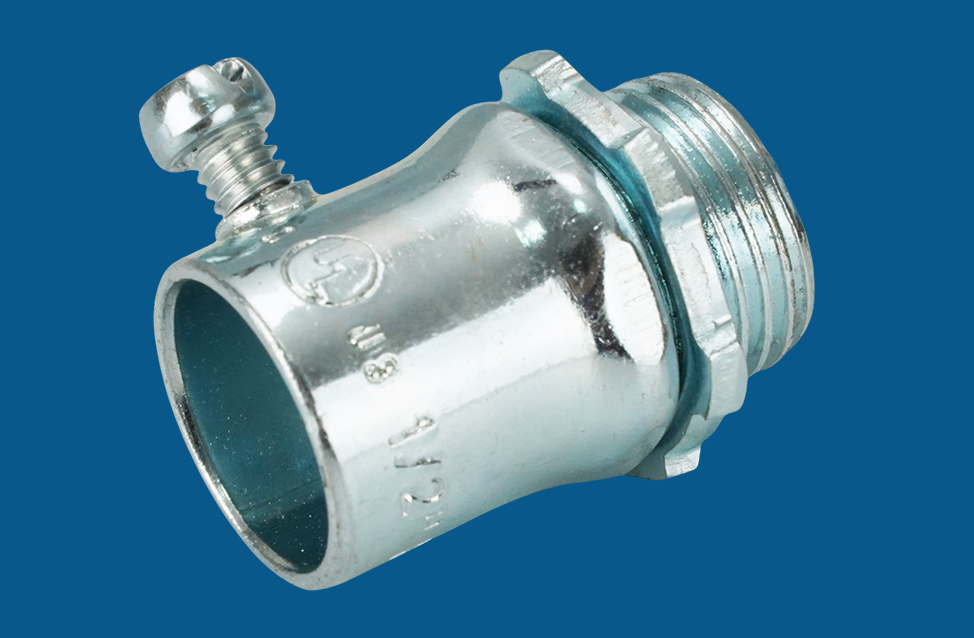

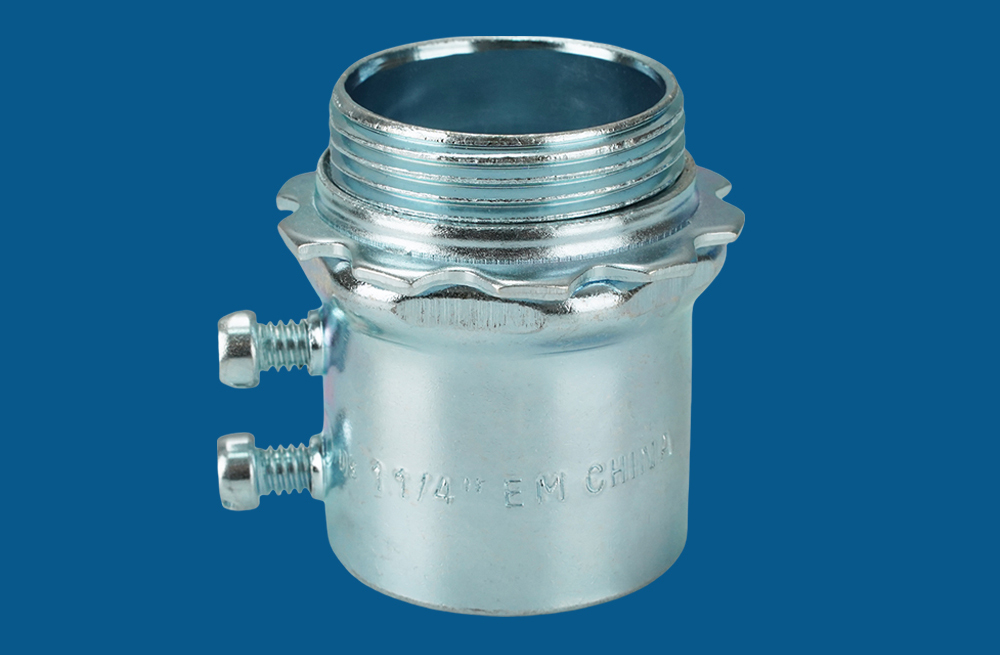

Steel EMT Connector Set Screw Type
Material : Steel
Surface Finish : Zinc plated
Type : Set screw type
ELECMAN® Steel EMT Connector Set Screw Type
PRODUCT: EMT connector
MATERIAL: Steel
TYPE: Set screw type
APPLICATION:

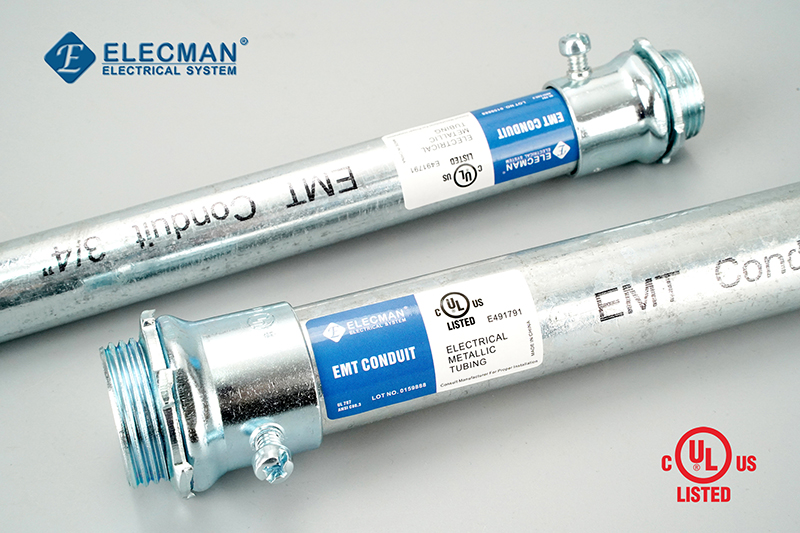

For use in dry locations to economically bond EMT conduit to a box or enclosure
FEATURES:
·All steel construction insures mechanical protection for the raceway
·Provide concrete-tight connections when taped
·Male hub treads NPS
·All components are zinc electro-plated for corrosion protection.
·Insulated type are available.
CERTIFICATION AND COMPLIANCE:
UL listed
File No.: E513114
| CATALOG NUMBER | TRADE SIZE | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCON050 | 1/2" | 50 | 500 | 19.50 |
| SCON075 | 3/4" | 25 | 250 | 12.80 |
| SCON100 | 1" | 50 | 200 | 17.26 |
| SCON125 | 1-1/4" | 25 | 100 | 16.15 |
| SCON150 | 1-1/2" | 10 | 100 | 18.25 |
| SCON200 | 2" | 5 | 50 | 12.39 |
| SCON250 | 2-1/2" | 12 | 6.53 | |
| SCON300 | 3" | 12 | 8.62 | |
| SCON325 | 3-1/2" | 6 | 5.00 | |
| SCON400 | 4" | 6 | 5.58 |
PACKING INFORMATION：
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
Other name: Conector EMT Acero,Conector recto EMT,Terminal EMT Acero,conector emt,conector recto conduit emt, EMT connector, steel EMT connector.
EMT CONNECTORS AND COUPLINGS UL CERTIFICATION.pdf
