Steel EMT Coupling Compression Type
Material : Steel
Surface Finish : Zinc plated
Type : Compression type

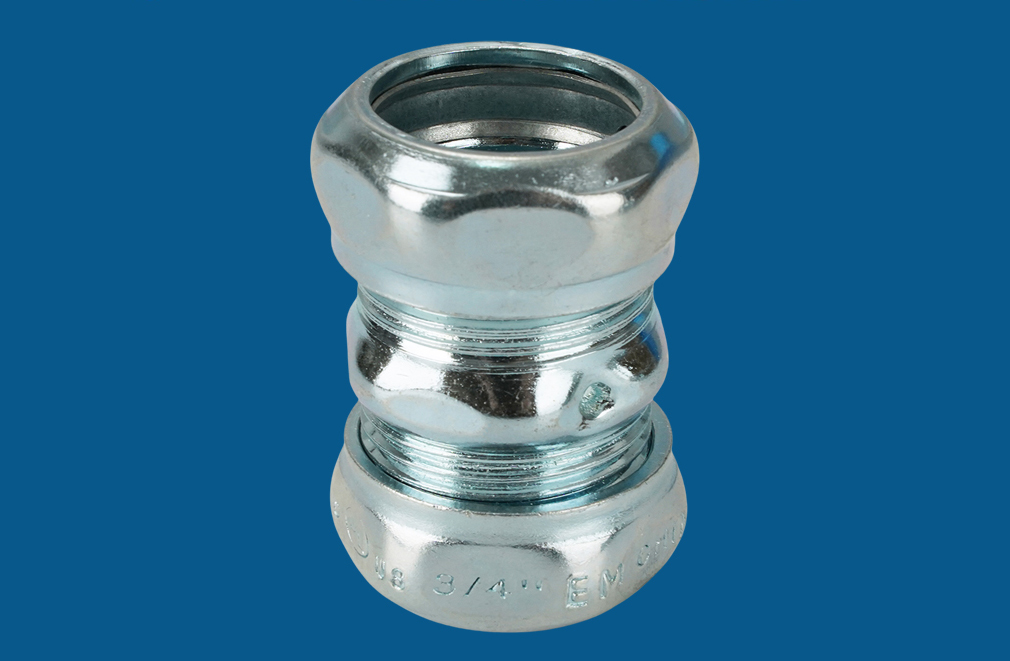

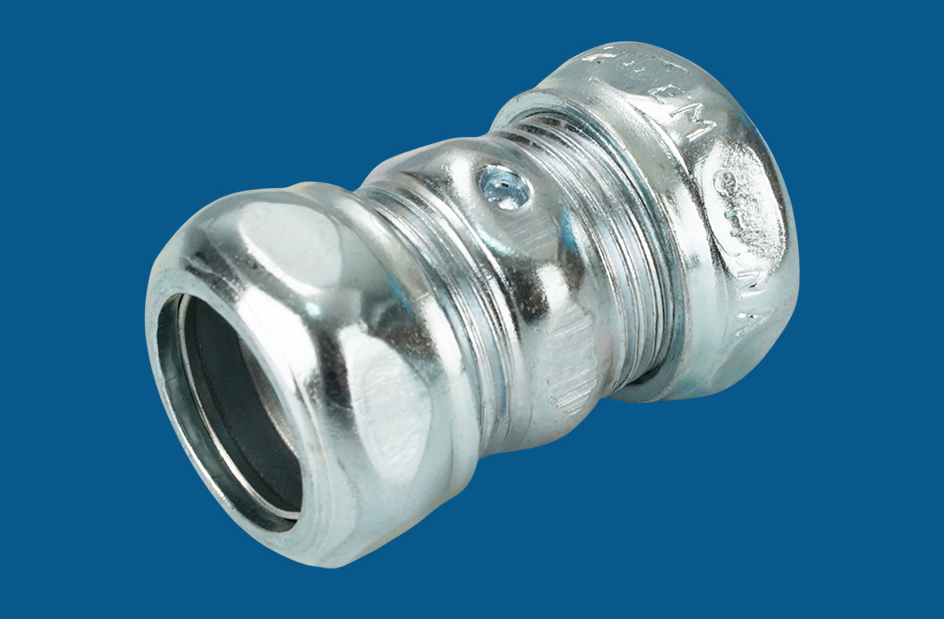

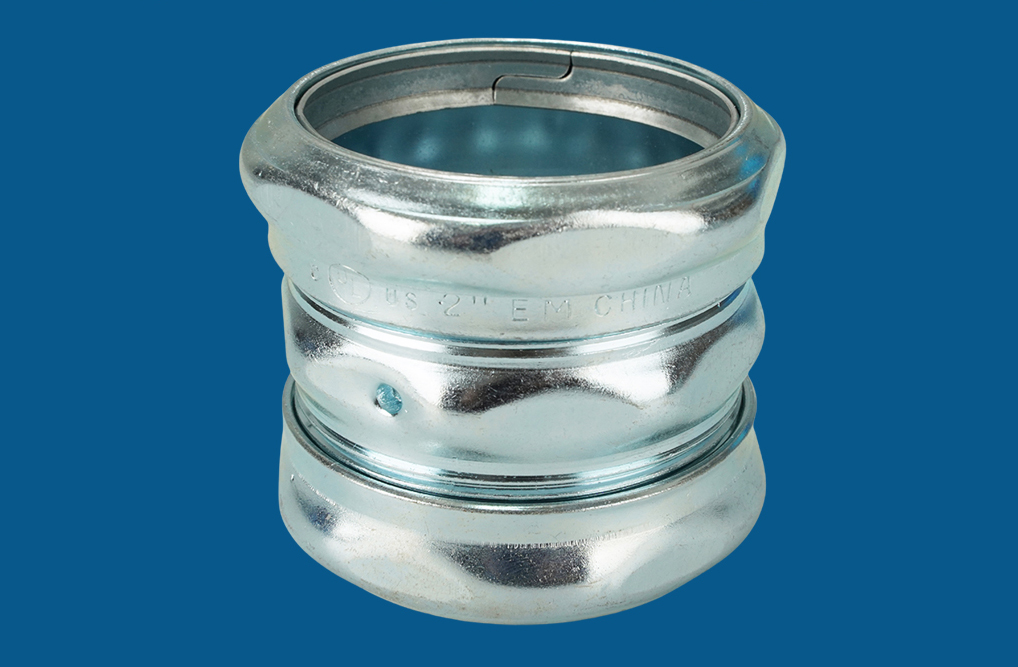

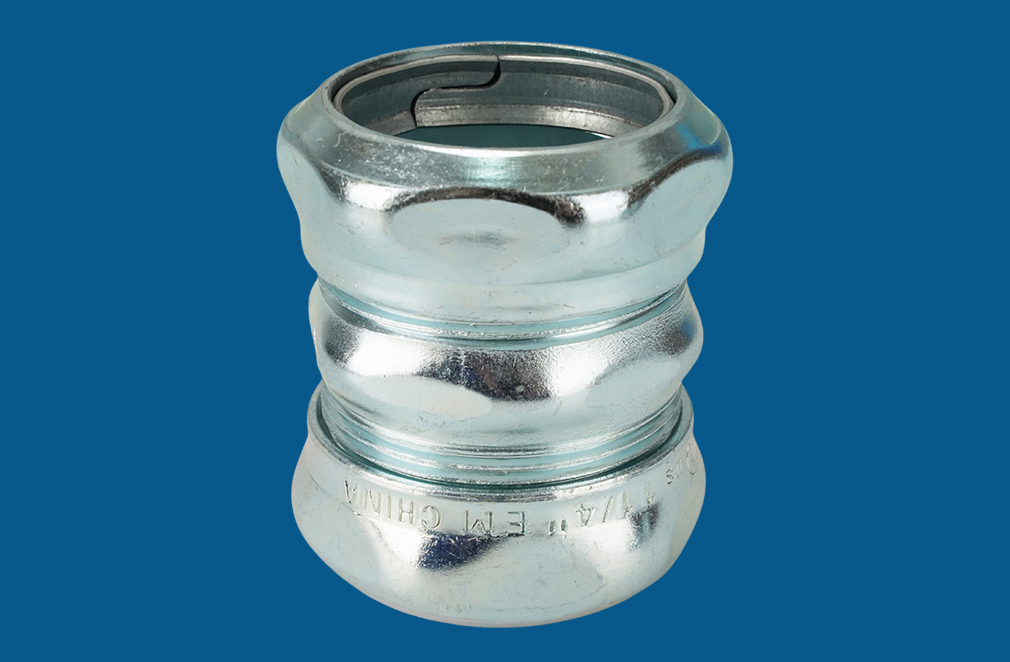

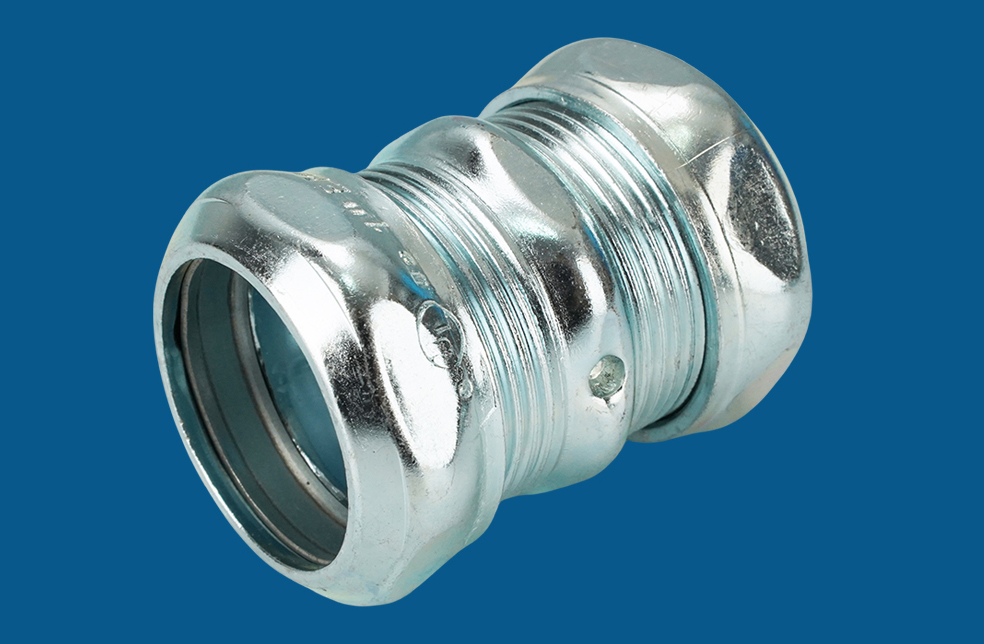

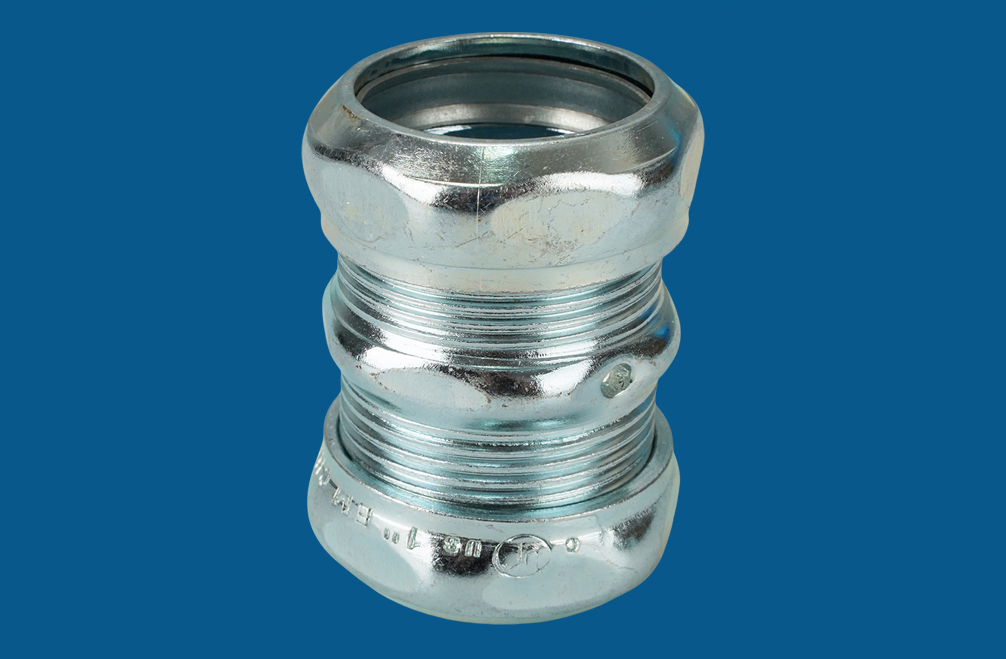

ELECMAN ® Steel EMT Coupling Compression Type
PRODUCT: EMT coupling
MATERIAL: Steel
TYPE: Compression type
APPLICATION:

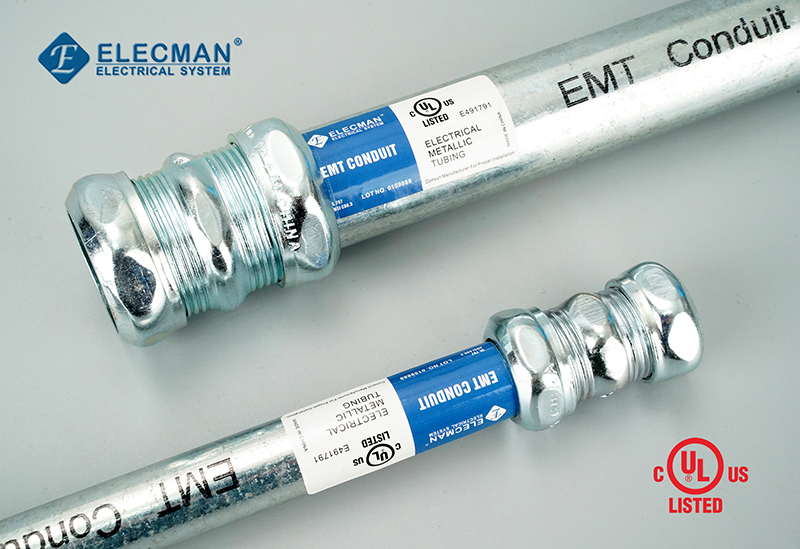

For use in dry locations to couple two ends of EMT conduit
FEATURES:
·All steel construction insures mechanical protection for the raceway
·Provide concrete-tight connections when taped
·All components are zinc electro-plated for corrosion protection.
CERTIFICATION AND COMPLIANCE:

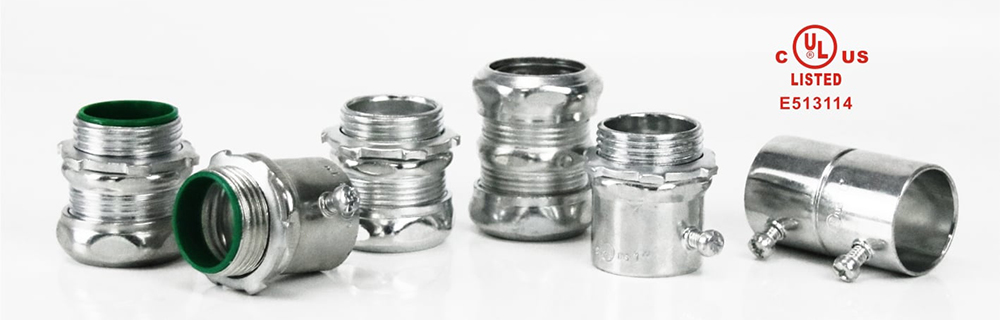

UL listed
File No.: E513114
| CATALOG NUMBER | TRADE SIZE | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCCP050 | 1/2" | 50 | 500 | 35.50 |
| SCCP075 | 3/4" | 25 | 250 | 22.20 |
| SCCP100 | 1" | 50 | 200 | 25.10 |
| SCCP125 | 1-1/4" | 25 | 100 | 20.50 |
| SCCP150 | 1-1/2" | 10 | 40 | 9.30 |
| SCCP200 | 2" | 5 | 20 | 6.00 |
| SCCP250 | 2-1/2" | 12 | 10.20 | |
| SCCP300 | 3" | 12 | 13.05 | |
| SCCP325 | 3-1/2" | 6 | 7.60 | |
| SCCP400 | 4" | 6 | 9.34 |
PACKING INFORMATION
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
Other names: Union EMT Tipo Compresión Acero,COPLE DE COMPRESIÓN PARA TUBO EMT, EMT coupling compression type, Steel compression EMT connector, compression EMT coupling.
