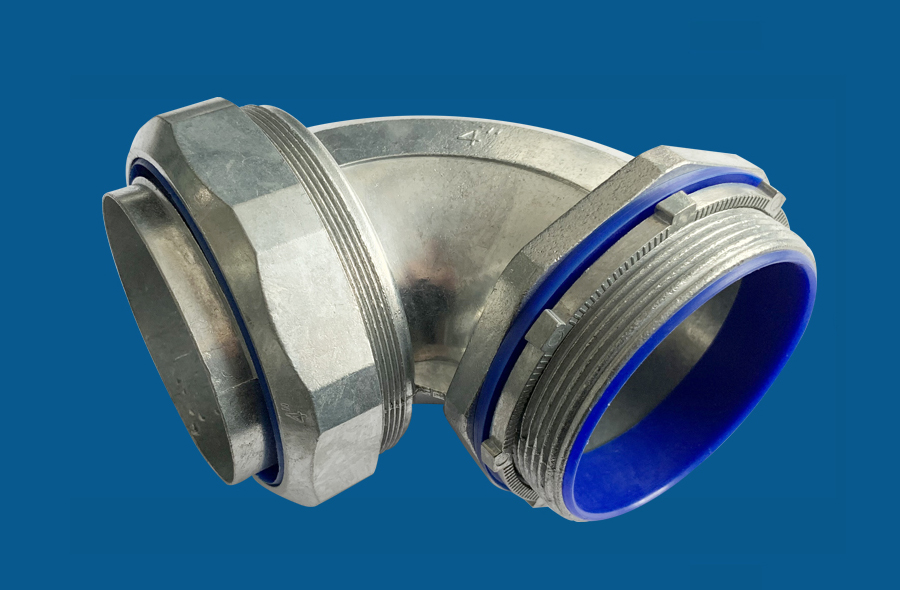

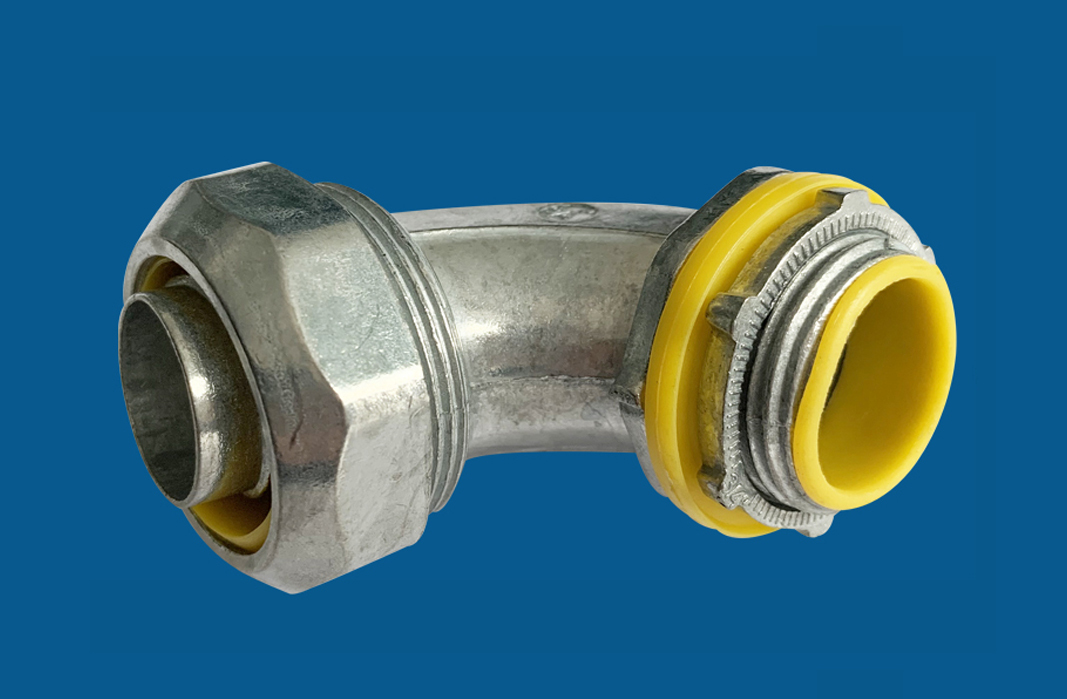

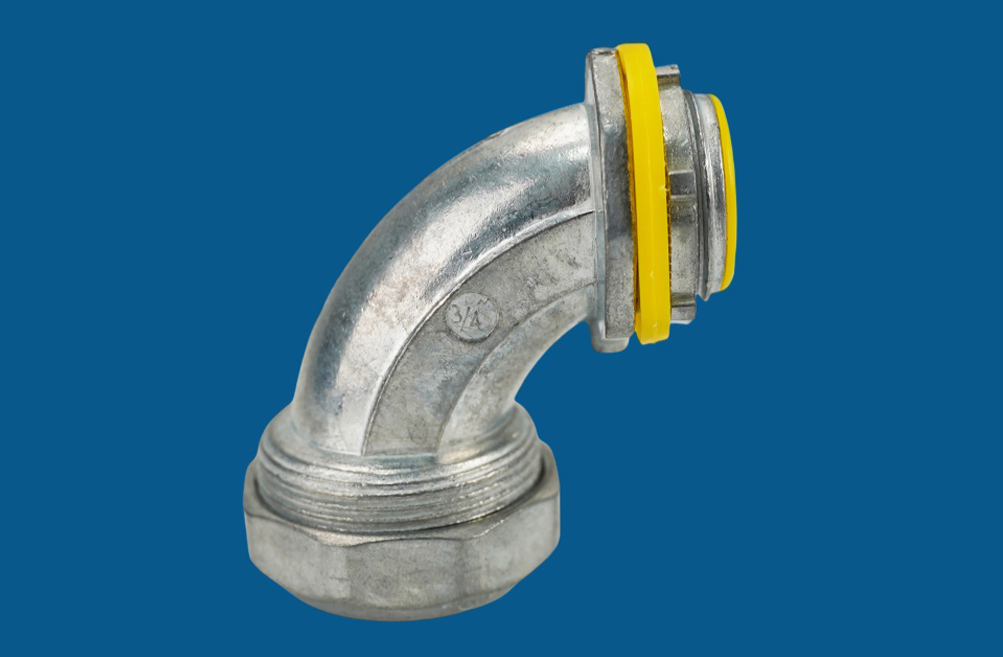

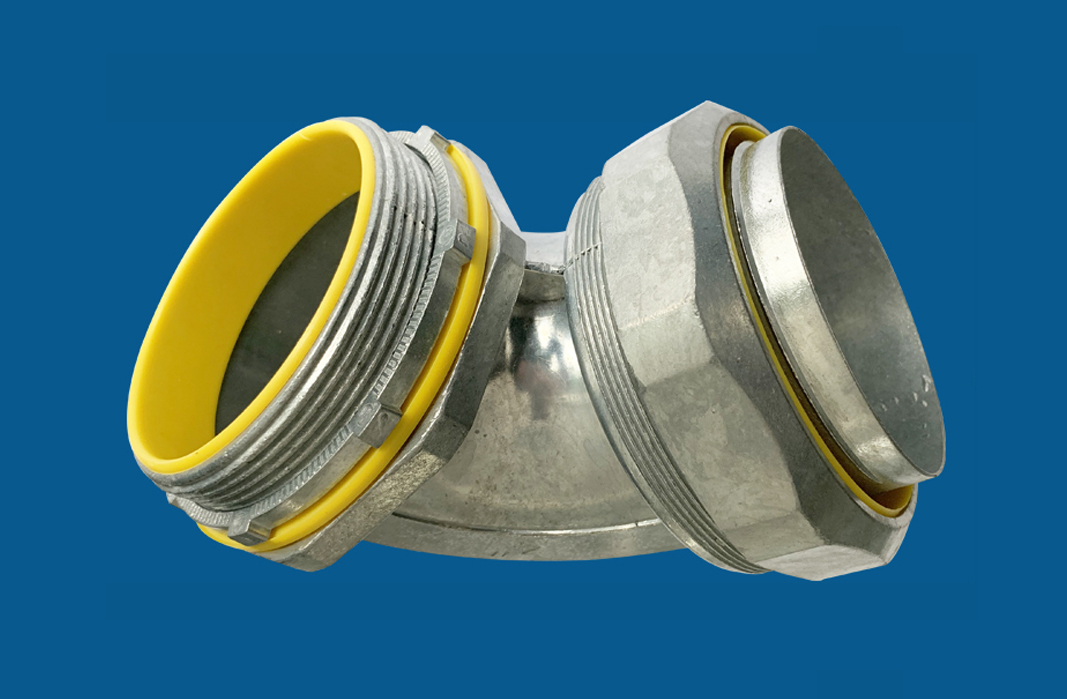

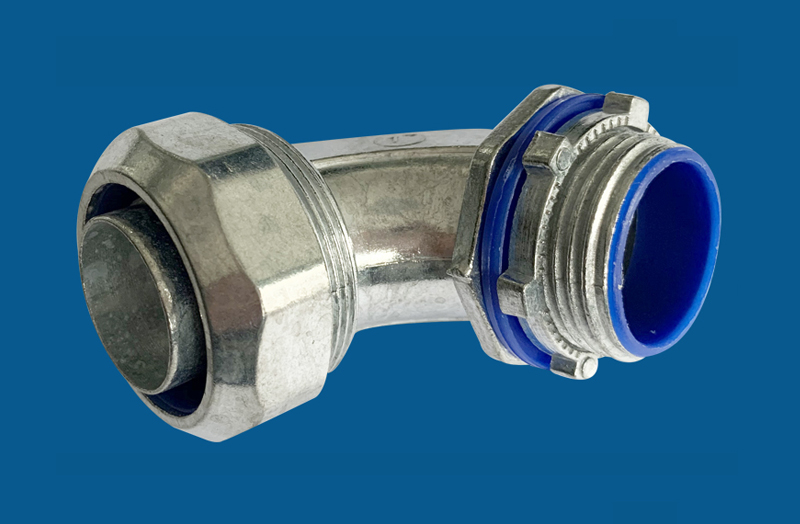

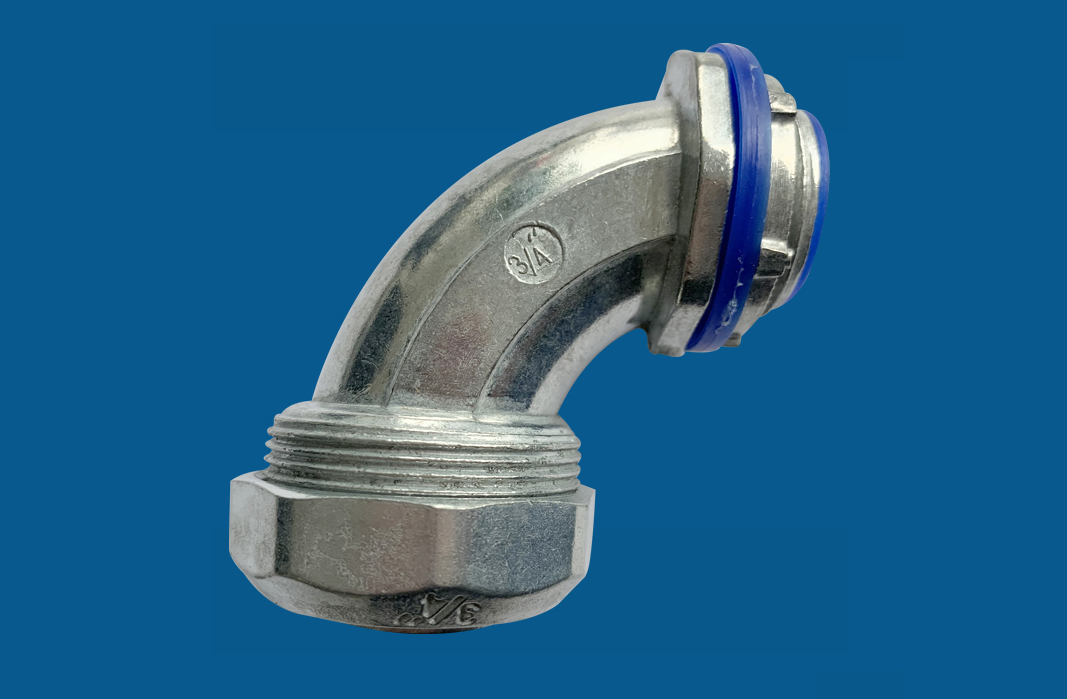

Zinc Liquid Tight Connector 90° Type

Material : Zinc die cast

Surface Finish : Polishing

Type : 90° type

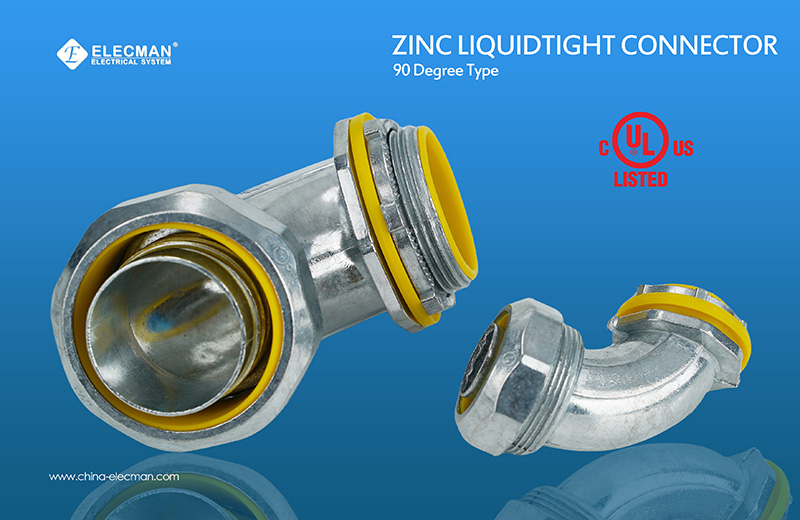

ELECMAN ® Zinc Liquid Tight Connector 90° Type



PRODUCT: Liquid tight connector

MATERIAL: Zinc die cast

TYPE: 90° type


APPLICATION:

Zinc 90° liquid tight connectors are used to terminate and seal liquidtight flexible metal conduit,at 90° angle, to either olitight, liquidtight or raintight box or enclosure.


FEATURES:

·90° component type connectors

·Assembled with a die cast locknut

·Insulated throat protects against abrasion damage


CERTIFICATIONS AND COMPLIANCES:

•  UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following hazardous locations under NEC:

- Class I, Division 2;

- Class II, Divisions 1 & 2; and

- Class III, Divisions 1 & 2;

- Suitable for grounding in sizes 3 /8” through 11 /4” under NEC

• UL Standards 514B, 467

• cUL Standard C22.2 No. 18F

• UL File No. E503810



CAT#Trade Size
LTN0501/2"
LTN0753/4"
LTN1001"
LTN1251-1/4"
LTN1501-1/2"
LTN2002"
LTN2502-1/2"
LTN3003"
LTN3503-1/2"
LTN4004"

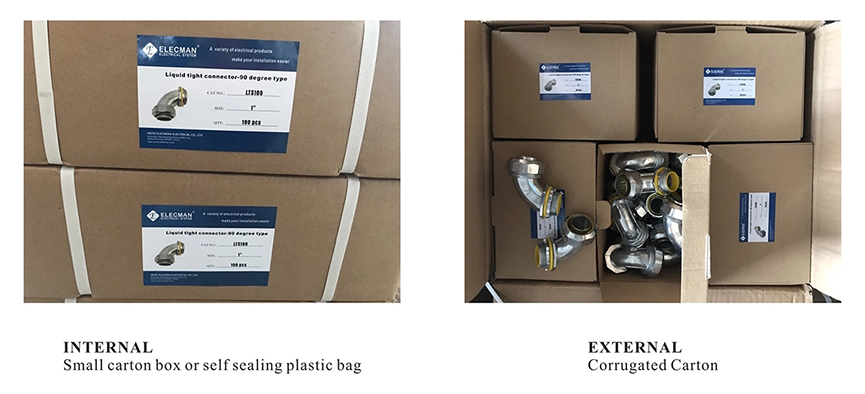

PACKING INFORMATION

INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton


90° Liquid tight connector.jpg

Other names: Codo 90º Liquid Tight,curvos herméticos también,Conector Curvo Hermético,CONECTOR LIQUID TIGHT CURVO, Conector Curvo Hermetico Liquid Tight




CONDUIT FITTINGS UL CERTIFICATION.pdf.pdf
