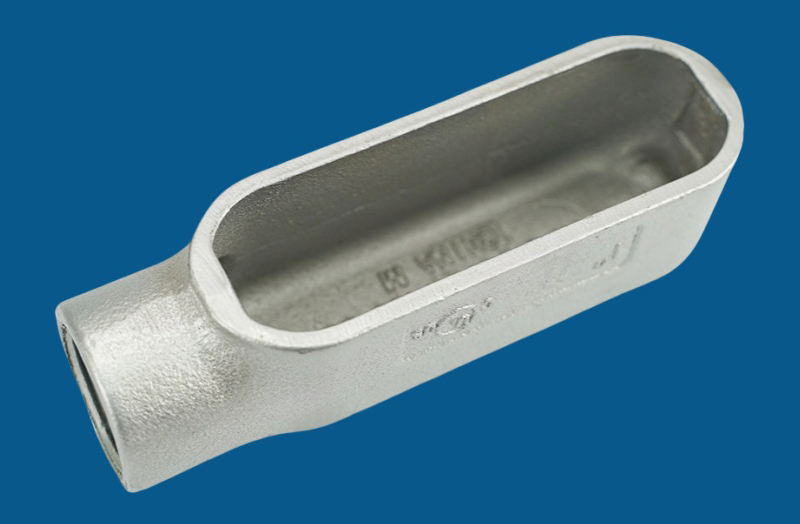

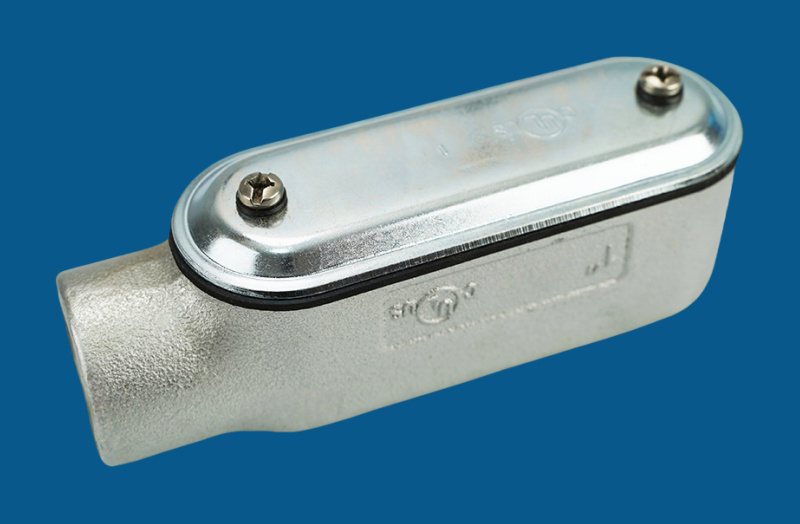

Form 7 Threaded E Conduit Body with Cover and Gasket

Material : Gray iron & steel & stainless steel & neoprene rubber

Surface Finish : Zinc plated,Aluminum enameled,Hot dip galvanized

Type : Threaded E type

ELECMAN® Form 7 Threaded E Conduit Bodies with Cover and Gasket


STANDARD MATERIALS:

• Gray iron body

• Steel cover

• Gasket - Neoprene rubber

• Stainless steel screws


TYPE: Threaded E type


APPLICABLE THIRD PARTY STANDARDS:

• UL Standard 514A

• Fed.Spec. W-C-586D

• NEMA:FB-1


APPLICATION:

Form 7 gray iron conduit bodies are used in conduit systems to:

• Serve  as  pulling  fittings.

• Make  bends  in  conduit  system.

• Provide  openings  for  splicing.

• Connect  and  change  direction  of  conduit  runs.

• Allow  connections  for  branch  runs.

• Permit  access  to  conductors  for  maintenance.


FEATURES:

• Smooth, rounded integral bushings in hubs protect conductor insulation.

• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity.

• Gray iron bodies with cast covers and gasket are suitable for use in wet   locations.

• Unique clip cover design allows easy removal at any later time, without damaging the conduit body, the cover is secured with clips, not screws.

• Flat back design provides greater cubic content for easier wire pulling, and more room for splicing, Fits flush and snug against flat surfaces for more stable installation.

• Smooth hub bushings and cover openings protect conductor insulation. Smooth hub openings  allow easy conduit joining.

• Pan-head cover screws secure cover clips and provide superior screwdriver seating and torque. Cover screws and clips are captive to prevent loss.

• Hub size (inches), body style, compliance data, maximum wire number/size  and cubic capacity molded into body.

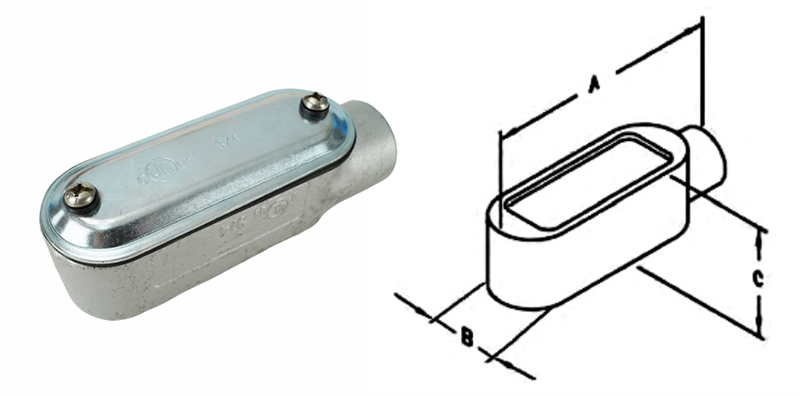

FORM 7 E C.png


PACKING INFORMATION


External packing: Corrugated carton


Other names: Condulet form 7, form 7 conduit outlet bodies, form 7 conduit body, China form 7 condulet.
