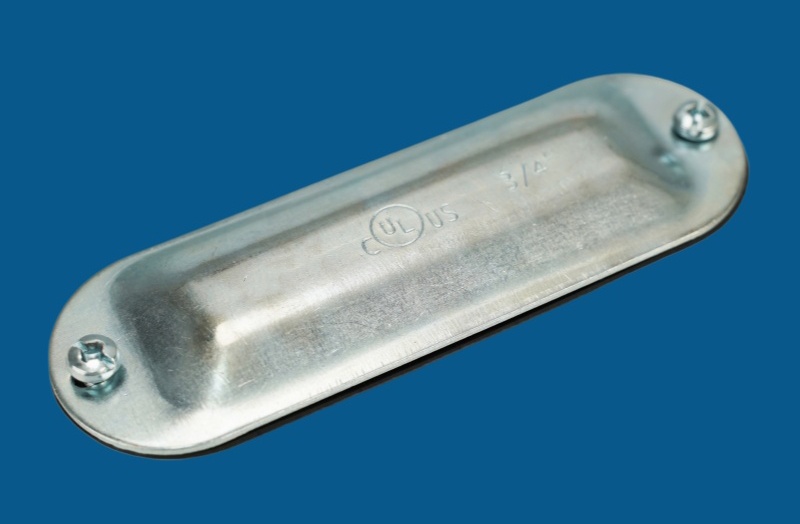

Raised Dome Stamped Steel Form 5 Conduit Body Covers & Neoprene Gaskets
Material : Steel & stainless steel & neoprene rubber
Surface Finish : Zinc plated,Aluminum enameled,Hot dip galvanized
Type : Form 5
ELECMAN® Raised Dome Stamped Steel Form 5 Conduit Body Covers & Neoprene Gaskets
MATERIAL: Steel & stainless steel & neoprene rubber
APPLICABLE THIRD PARTY STANDARDS:
• UL Standard 514A
• Fed.Spec. W-C-586D
• NEMA:FB-1
NEMA4
APPLICATION:
Raised dome stamped steel form 5 conduit body covers & neoprene gaskets are used with form 5 series conduit bodies.
FEATURES:

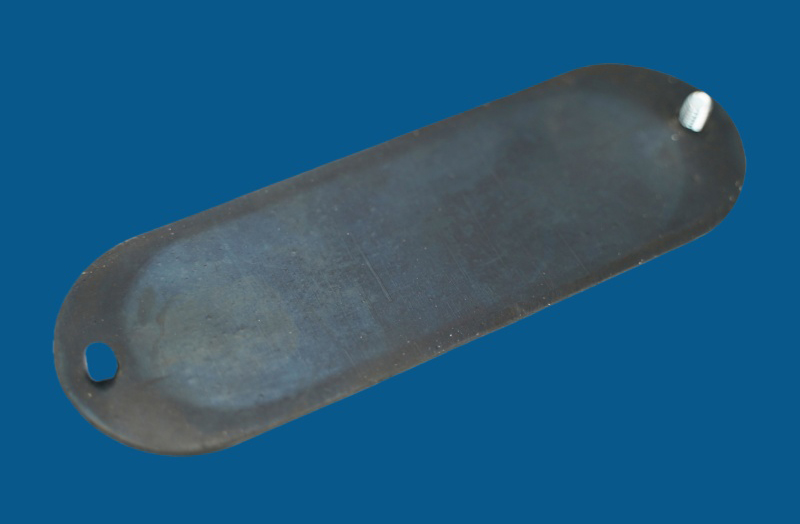

• Solid neoprene gaskets may be converted to open type by pulling out perforated center section.
• Stainless steel cover screws.
• Domed sheet steel covers provide additional cubic capacity.
• Integral gasket cover provides NEMA 4 rating.
PACKING INFORMATION
External packing: Corrugated carton
