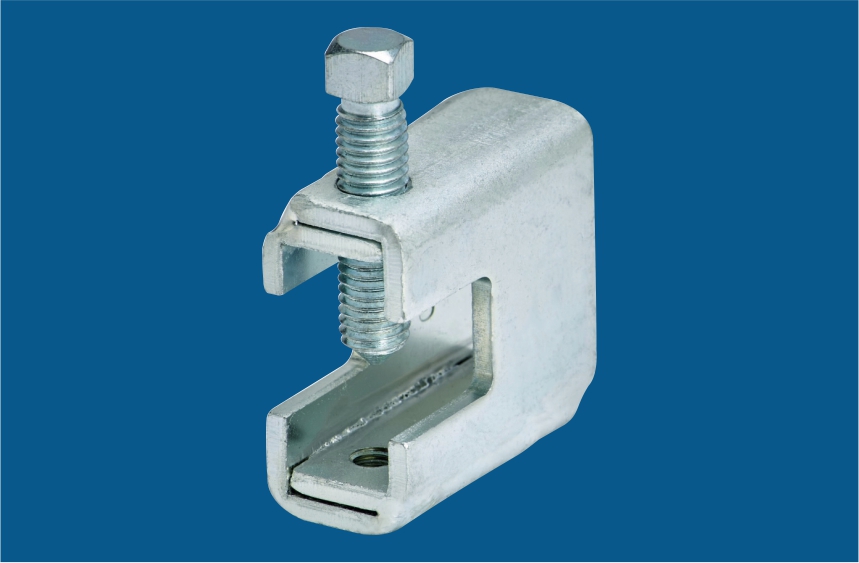

Beam Clamps
Material : Steel
Surface Finish : Electro-Galvanized or Hot-Dip Galvanized
Type : B series
ELECMAN® Malleable Iron Beam Clamps
MATERIAL: Malleable Iron
APPLICATION:
ELECMAN® beam clamp are used to attach a hanger rod to the flange of a beam.
| Cat.# | Rod Size | Throat Opening | C | T | Design Load | Approx. Wt./100 |
| A | in. | in. | Lbs. | Lbs. | ||
| LBP303 | 1/4" - 20 | 3/8" - 16 | 2-5/16" | 11 Ga. | 400 | 72 |
| LBP304 | 5/16" - 18 | 3/8" - 16 | 2-5/16" | 11 Ga. | 600 | 72 |
| LBP305 | 3/8" - 16 | 3/8" - 16 | 2-5/16" | 11 Ga. | 600 | 72 |
| LBP306 | 3/8" - 16 | 1/2" - 13 | 2-7/16" | 7 Ga. | 1100 | 97 |
| LBP307 | 1/2" - 13 | 1/2" - 13 | 2-7/16" | 7 Ga. | 1100 | 97 |
| LBP308 | 1/2" - 13 | 1/2" - 13 | 2-9/16" | 1/4" | 1500 | 133 |
| LBP309 | 5/8" - 11 | 1/2" - 13 | 2-9/16" | 1/4" | 1500 | 133 |
