Watertight Conduit Hubs
Material : Zinc die cast
Surface Finish : Polishing
Type : Watertight

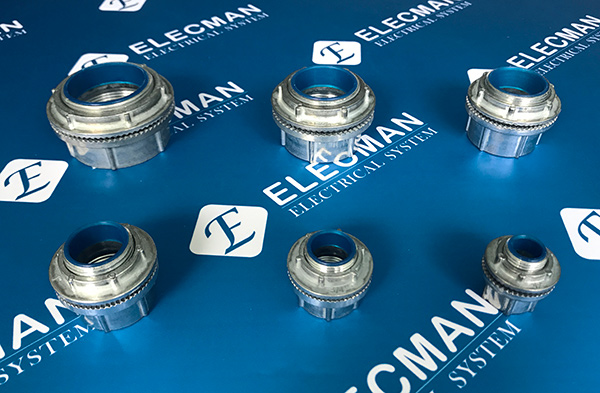

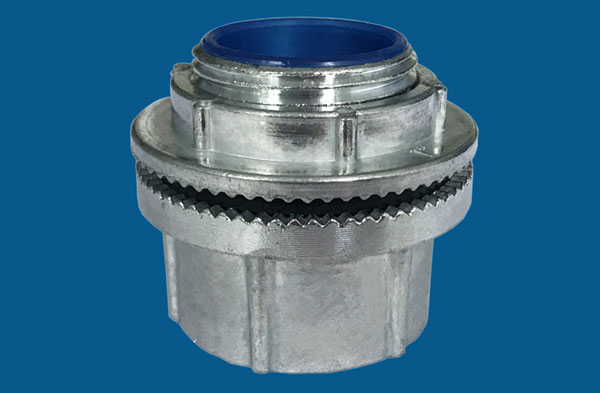

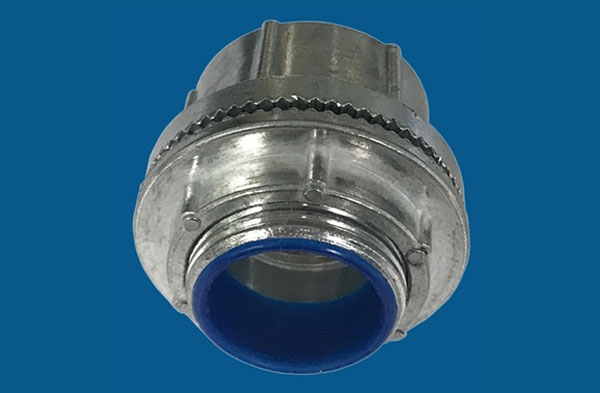

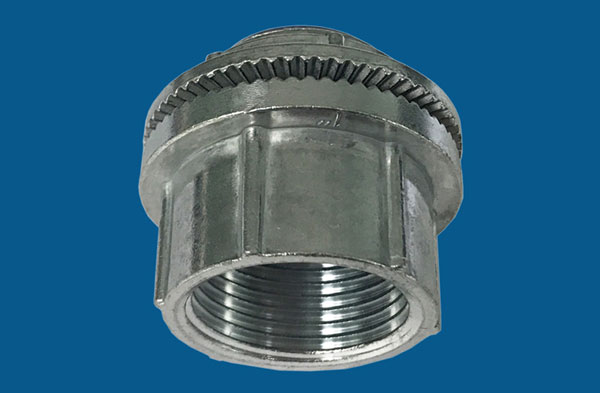

PRODUCT: Watertight conduit hubs
MATERIAL: Zinc die cast
TYPE: Watertight
APPLICATION:
ELECMAN®Watertight conduit hubs are used to connect threaded IMC/RIGID conduit to an enclosure or load center requiring a water-tight joint at knockout or slip-fit holes in dry or wet locations.
FEATURES:
·Rugged metallic construction insures mechanical protection
·Insulated throat protects wires and reduces the pulling effort
·Rain, oil, and dust tight
| Cat.# | Trade Size |
| WHB050 | 1/2" |
| WHB075 | 3/4" |
| WHB100 | 1" |
| WHB125 | 1-1/4" |
| WHB150 | 1-1/2" |
| WHB200 | 2" |
| WHB250 | 2-1/2" |
| WHB300 | 3" |
| WHB350 | 3-1/2" |
| WHB400 | 4" |
PACKING INFORMATION
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
WATERTIGHT CONDUIT HUBS UL CERTIFICATION.pdf
