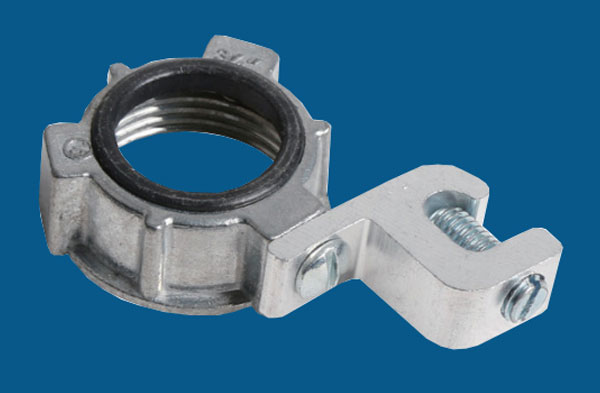

Insulated Grounding Bushings
Material : Zinc die cast
Surface Finish : Polishing
Type : Grounding
PRODUCT: Insulated grounding bushings
MATERIAL: Zinc die cast body, plastic insulator, aluminum lug,steel clamping screw , steel set screw
TYPE: Grounding
APPLICATION:
ELECMAN®Insulated grounding bushings are used with threaded IMC/Rigid conduit to provide a means of grounding conduit through an insulated bushing.
FEATURES:
·Resilient plastic liner, resists corrosion chem and temperature extremes
·1 set screw provide with each fittings locks bushing in any desired position
·External stainless steel hardware as standard
| Cat.# | Trade Size | Grounding Lug Wire Size | |
| min | max | ||
| ZGB050 | 1/2" | 14 | 4 |
| ZGB075 | 3/4" | 14 | 4 |
| ZGB100 | 1" | 14 | 4 |
| ZGB125 | 1-1/4" | 14 | 4 |
| ZGB125-1 | 1-1/4" | 14 | 1/0 |
| ZGB150 | 1-1/2" | 14 | 4 |
| ZGB150-1 | 1-1/2" | 14 | 1/0 |
| ZGB200 | 2" | 14 | 4 |
| ZGB200-1 | 2" | 14 | 1/0 |
| ZGB250 | 2-1/2" | 14 | 1/0 |
| ZGB250-1 | 2-1/2" | 6 | 250 MCM |
| ZGB300 | 3" | 14 | 1/0 |
| ZGB300-1 | 3" | 6 | 250 MCM |
| ZGB400 | 4" | 14 | 1/0 |
| ZGB400-1 | 4" | 6 | 250 MCM |
PACKING INFORMATION
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
