Galvanized Flexible Steel Conduit
Material : Galvanized steel
Surface Finish : Galvanized
Type : JS

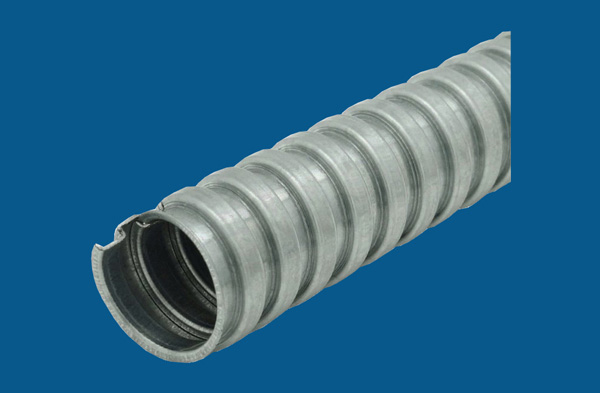

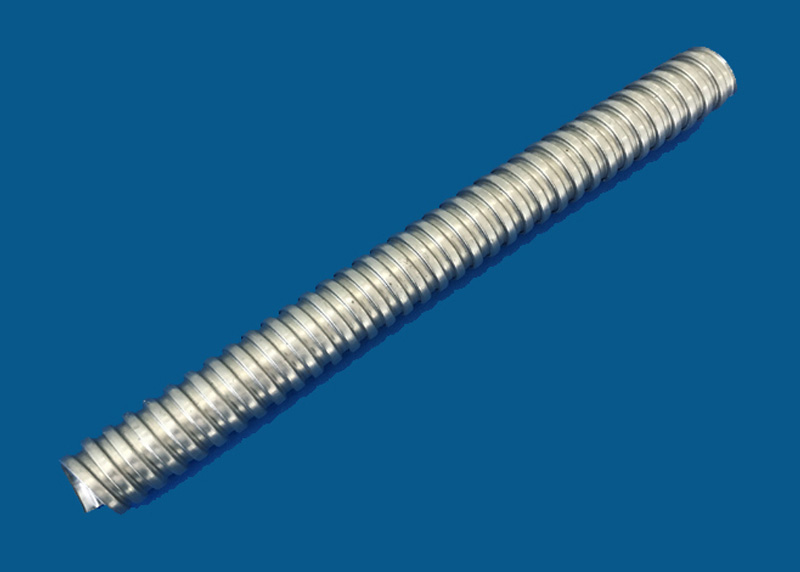

ELECMAN ® Galvanized flexible steel conduit
PRODUCT: Flexible steel conduit
MATERIAL: Steel
COLOR:Sliver

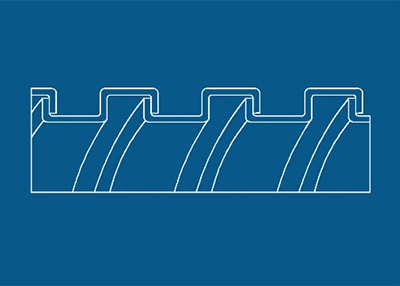

STRUCTURE: Square lock
WORKING TEMPERATURE: -30℃ ~180 ℃
APPLICATION:
Areas subject to heat and sparks (foundries, welding, etc)
Used as mechanical protection for insulated electrical cables and wires that are functional in normal atmospheric temperature
Under floor applications for computer/floor boxes
For furnace/oven applications
Used for connecting machines to controls
PRODUCTS FEATURES:
• Adopting galvanized steel band with special insulation treatment.
• National standard thickness of production, having super soft and excellent bending performance.
• Internal smooth structure is very easy for the entry of wire and cable.
| CAT # | Trade Size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JS-025 | 1/4" | 9.70 | 10.20 | 13.50 | 14.00 | 40 | 100 |
| JS-038 | 3/8" | 12.30 | 12.80 | 15.70 | 16.20 | 50 | 100 |
| JS-050 | 1/2" | 15.80 | 16.30 | 19.20 | 19.70 | 65 | 50 |
| JS-075 | 3/4" | 20.70 | 21.20 | 24.50 | 25.10 | 75 | 50 |
| JS-100 | 1" | 26.00 | 26.60 | 30.40 | 31.00 | 100 | 50 |
| JS-125 | 1-1/4" | 34.70 | 35.40 | 39.60 | 40.30 | 125 | 25 |
| JS-150 | 1-1/2" | 40.00 | 40.60 | 45.20 | 48.80 | 150 | 25 |
| JS-200 | 2" | 51.30 | 51.90 | 56.50 | 57.10 | 175 | 25 |
| JS-250 | 2-1/2" | 63.00 | 63.60 | 70.20 | 70.80 | 200 | 10 |
| JS-300 | 3" | 78.00 | 78.70 | 85.20 | 85.90 | 225 | 10 |
| JS-400 | 4" | 101.60 | 102.60 | 108.50 | 109.50 | 275 | 10 |
| JS-500 | 5" | 125.00 | 127.00 | 135.00 | 137.00 | 300 | 5 |
| JS-600 | 6" | 150.00 | 153.00 | 160.00 | 162.00 | 400 | 5 |
| Notes:Length of roll can be made according to customers' requirements. | |||||||
Packing Information
For internal packing, flexible conduits are packed in rolls,
For external packing, use good quality corrugated carton.
