Strut Channels
Material : Steel
Surface Finish : Galvanized
Type : Slotted or Plain

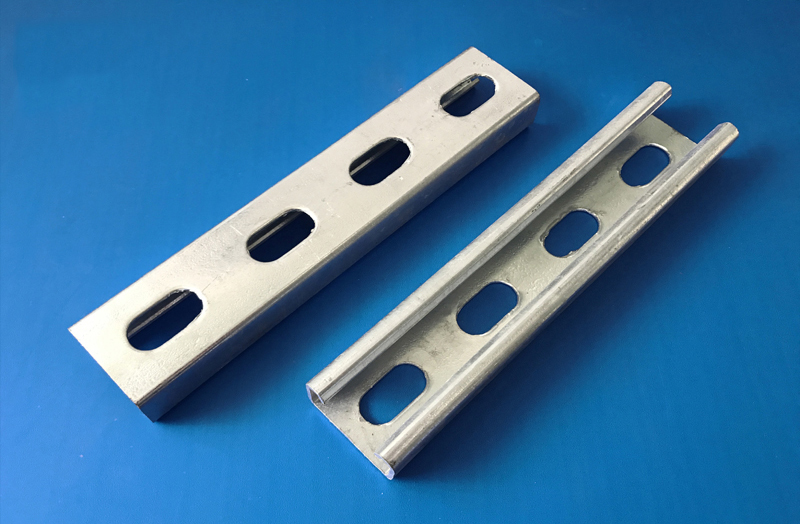

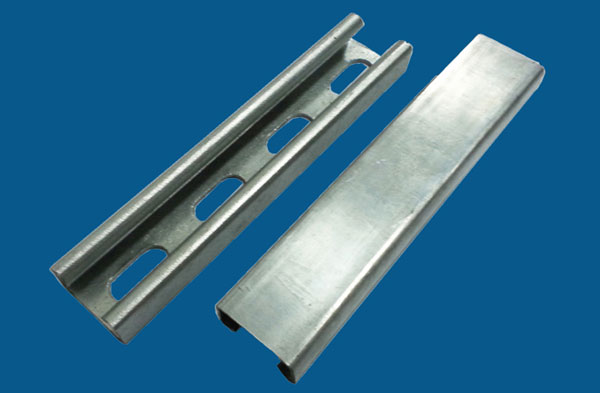

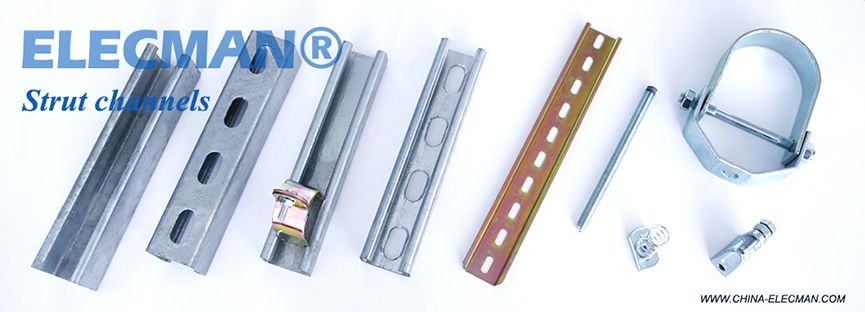

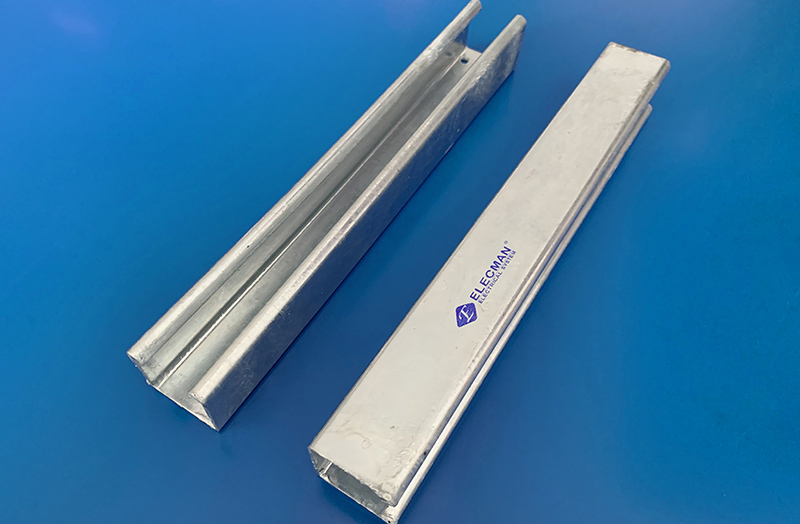

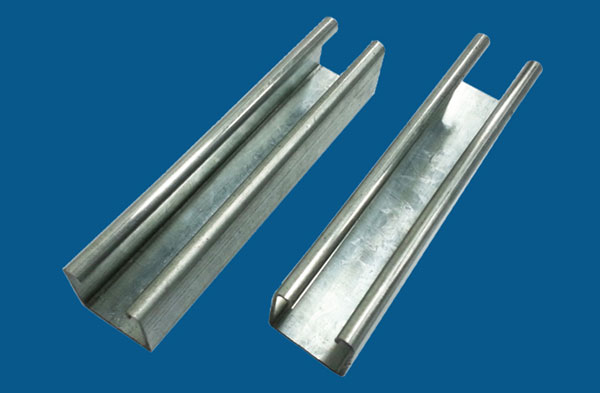

ELECMAN ® Strut Channels
ELECMAN®Strut channels are usually formed from metal sheet, folded over into an open channel shape with inwards-curving lips to provide additional stiffness and as a location to mount interconnecting components. Increasingly, ELECMAN®strut channel is being constructed from fiberglass, a highly corrosion-resistant material that's known for its lightweight strength and rigidity. Strut usually has holes of some sort in the base, to facilitate interconnection or fastening strut to underlying building structures.
APPLICATION:

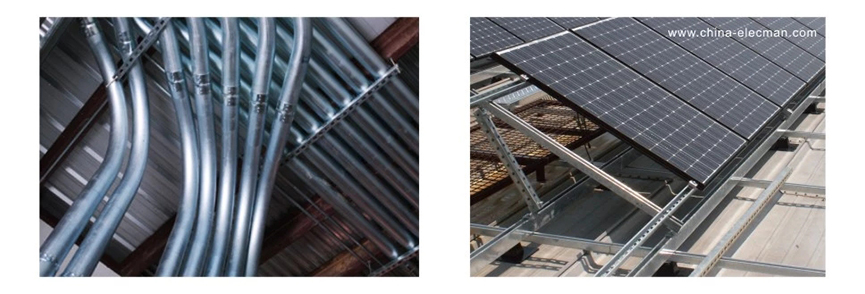

ELECMAN®Strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems.
ELECMAN®Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. Specially made sockets are available to tighten nuts, bolts, etc. inside the channel, as normal sockets are unable to fit through the opening.
FEATURES:
The main advantage of ELECMAN®strut channel in construction is that there are many options available for rapidly and easily connecting lengths together and other items to the strut channel, using various specialized strut-specific fasteners and bolts.
It can be assembled very rapidly with minimal tools and only moderately trained labor, which reduces costs significantly in many applications.
A strut channel installation also can often be modified or added-to relatively easily if needed.

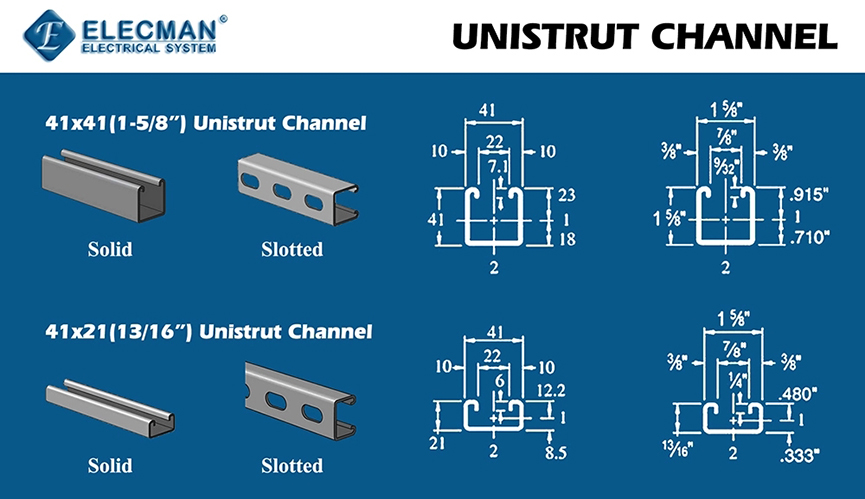

| Cat.# | Trade Size | Thickness(mm) | |||
| E-4115 | 41*41(1-5/8"*1-5/8") | 1.50 | |||
| E-4120 | 41*41(1-5/8"*1-5/8") | 2.00 | |||
| E-4125 | 41*41(1-5/8"*1-5/8") | 2.50 | |||
| E-2115 | 41*21(1-5/8"*13/16) | 1.50 | |||
| E-2120 | 41*21(1-5/8"*13/16) | 2.00 | |||
| E-2125 | 41*21(1-5/8""*13/16) | 2.50 | |||
| Notes:Available on both Pre-galvanized and Hot-dipped Galvanized | |||||

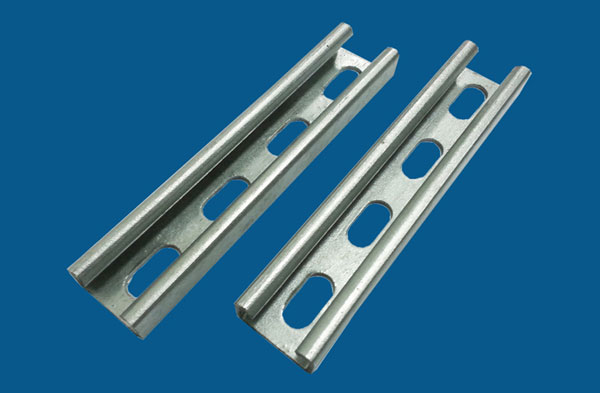

For slot of ELECMAN® slotted strut channels, we provide different size slots, it depends on requirements, if have special requirements, we also can provide.
| Slot Type | A | B | C | D | E |
| Size | 11*25mm | 11*30mm | 18*9mm | 28*14mm | 13.5*63mm |

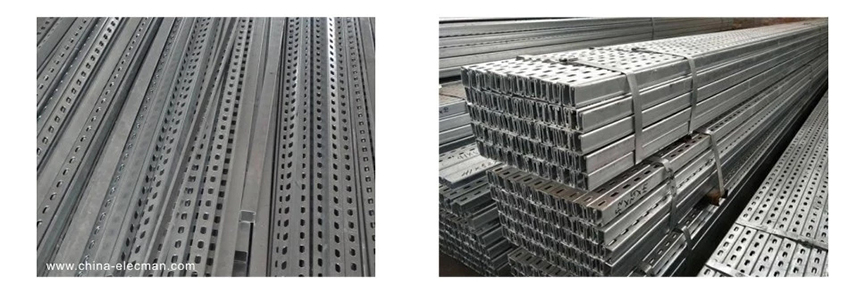

PACKING INFORMATION
ELECMAN®Strut channels are usually packed in bundles, small bundles or big bundles are both available.
Other names: unistrut channel ,riel channel, riel strut calibre, riel chanel 4x4, riel channel ranurado ,canaleta unistrut, , C channel, 41x41 strut channel, 41x21 strut channel
