BS4568/EN 61386 Class 3 Conduits
Material : Steel
Surface Finish : Pre-galvanized
Type : Class 3

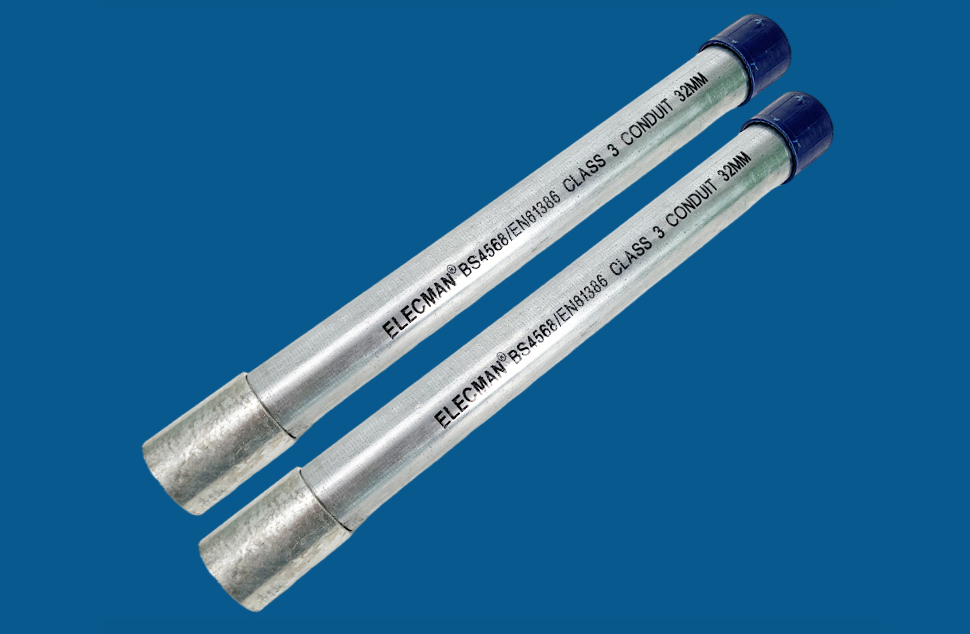

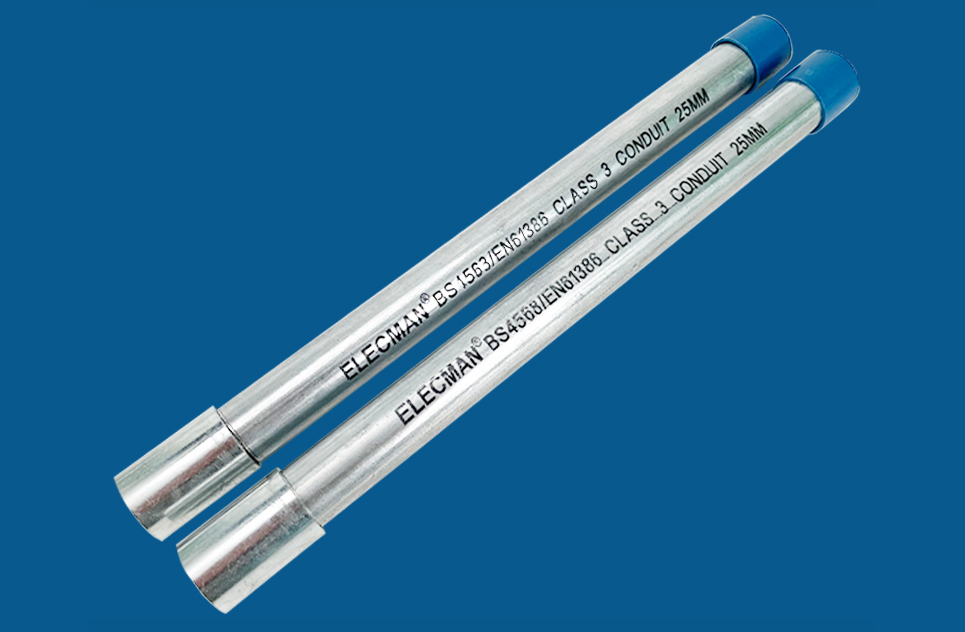

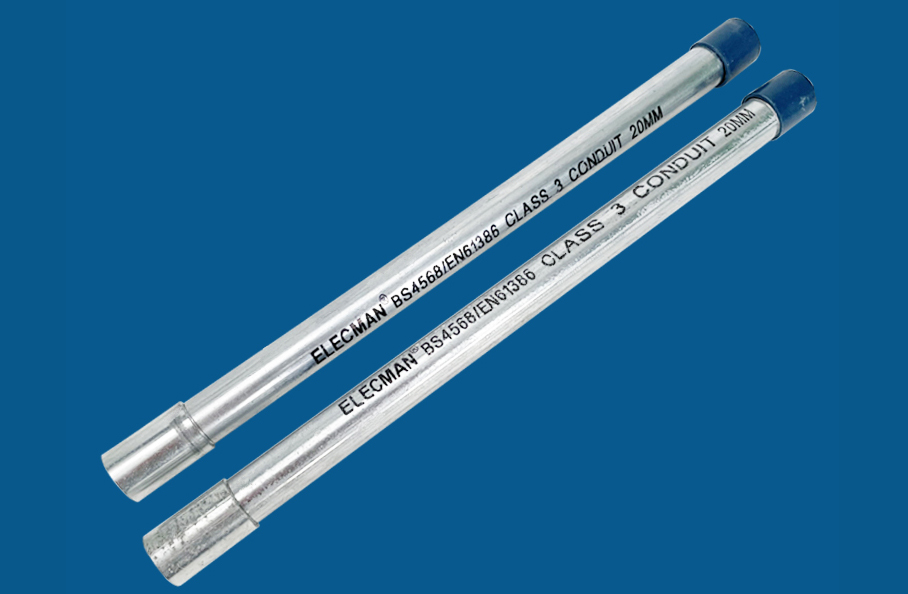

ELECMAN® BS4568/EN 61386 class 3 conduits
ELECMAN® BS4568/EN 61386 class 3 conduit is usually a galvanized steel pipe used in industrial, commercial, and residential buildings to be installed indoors to protect wires and cables.
| Cat.# | Nominal Size | Outside Diameter (mm) | Wall thickness (mm) | Length (m) | Thread length (mm) | ||
| Minimum | Maximum | Minimum | Maximum | ||||
| BS4301 | 16 | 15.70 | 16.00 | 1.4 ± 0.10 | 3.75 | 11.5 | 13.5 |
| BS4302 | 20 | 19.70 | 20.00 | 1.6 ± 0.15 | 3.75 | 13.0 | 15.0 |
| BS4303 | 25 | 24.60 | 25.00 | 1.6 ± 0.15 | 3.75 | 16.0 | 18.0 |
| BS4304 | 32 | 31.60 | 32.00 | 1.6 ± 0.15 | 3.75 | 18.0 | 20.0 |
| BS4305 | 40 | 39.50 | 40.00 | 1.6 ± 0.15 | 3.75 | 19.0 | 20.0 |
| BS4306 | 50 | 49.50 | 50.00 | 1.6 ± 0.15 | 3.75 | 19.0 | 20.0 |
| BS4307 | 60 | 59.50 | 60.30 | 2.0 ± 0.15 | 3.75 | ||
| BS4308 | 75.5 | 75.00 | 75.50 | 2.0 ± 0.15 | 3.75 | ||
| BS4309 | 88.5 | 85.00 | 88.50 | 2.0 ± 0.15 | 3.75 | ||
| BS4310 | 114 | 113.50 | 114.00 | 2.0 ± 0.15 | 3.75 | ||
| Thinner Type | |||||||
| BS4302T | 20 | 19.70 | 20.00 | 1.2 ± 0.05 | 3.75 | 13.0 | 15.0 |
| BS4303T | 25 | 24.60 | 25.00 | 1.2 ± 0.05 | 3.75 | 16.0 | 18.0 |
| BS4304T | 32 | 31.60 | 32.00 | 1.2 ± 0.05 | 3.75 | 18.0 | 20.0 |
·Pre galvanized inside and out to class3.

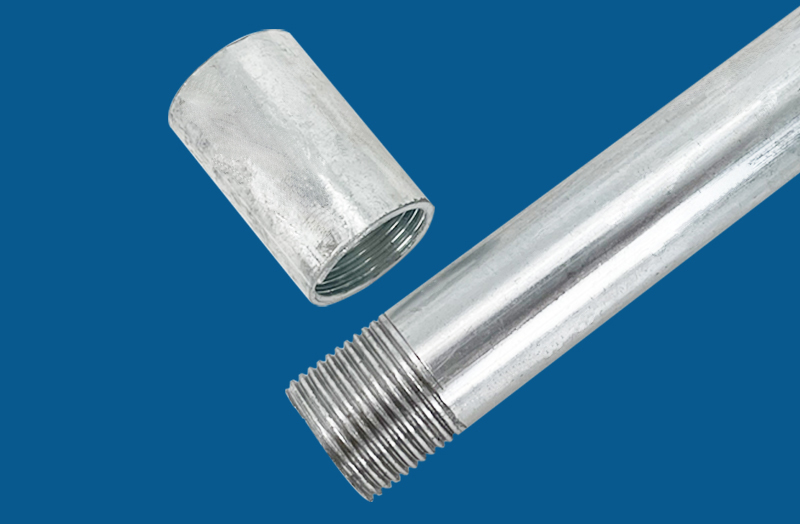

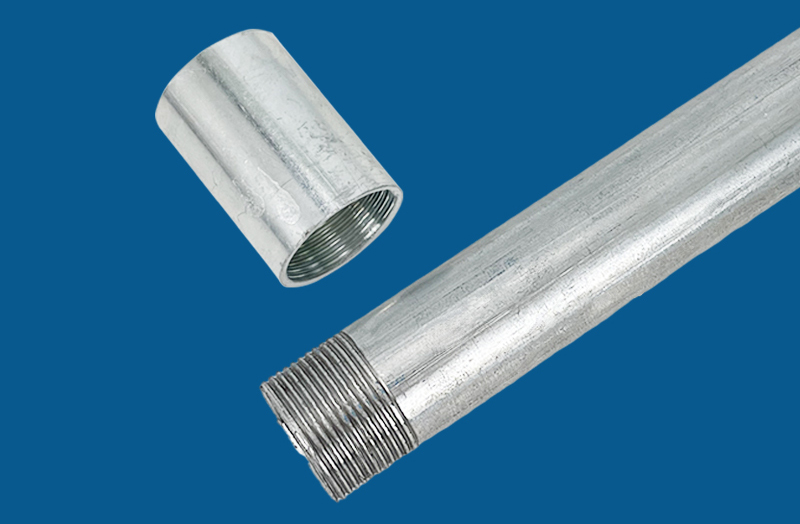

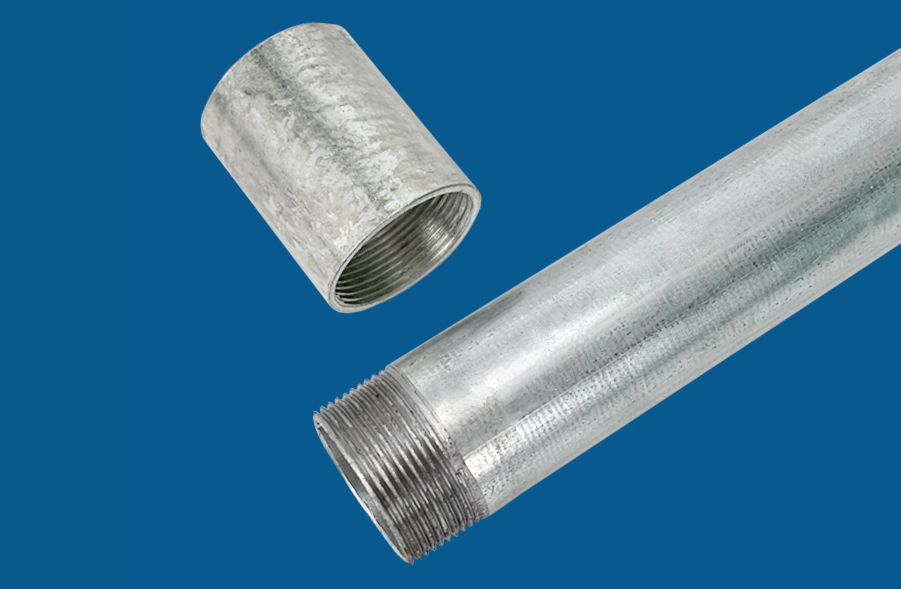

·Threaded at both ends.
·Each length supplied with one coupler and one plastic thread protector cap.
·Available in 16mm to 114mm diameter and 3.75m length.
·Manufactured in accordance with BS4568.
