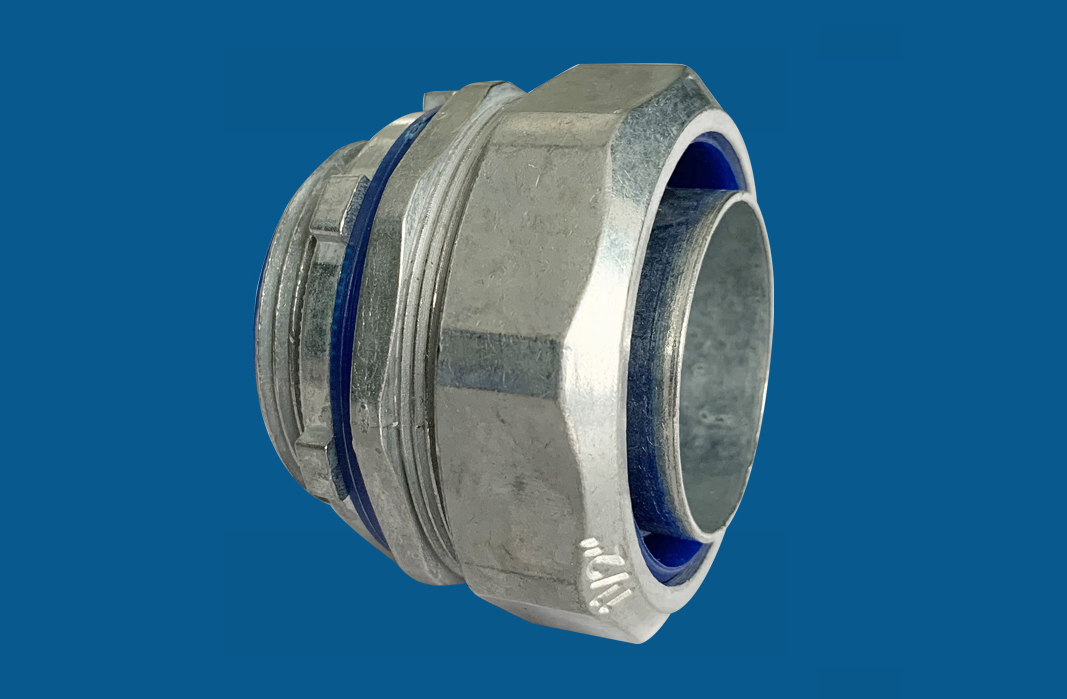

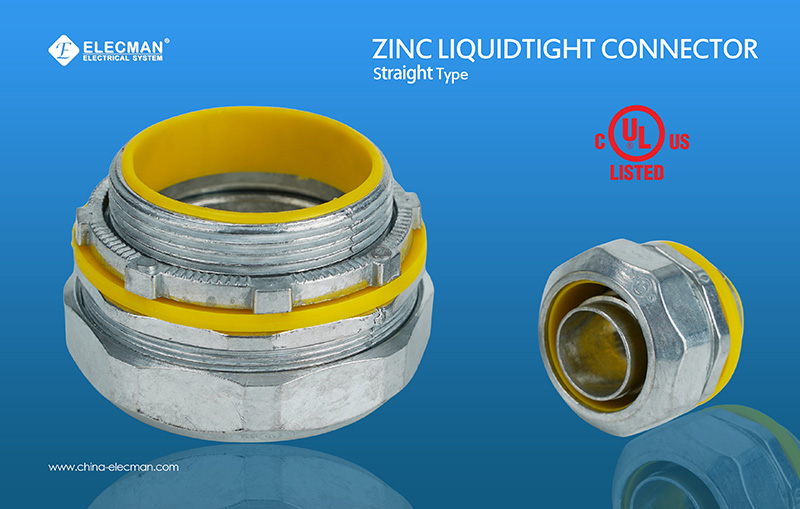

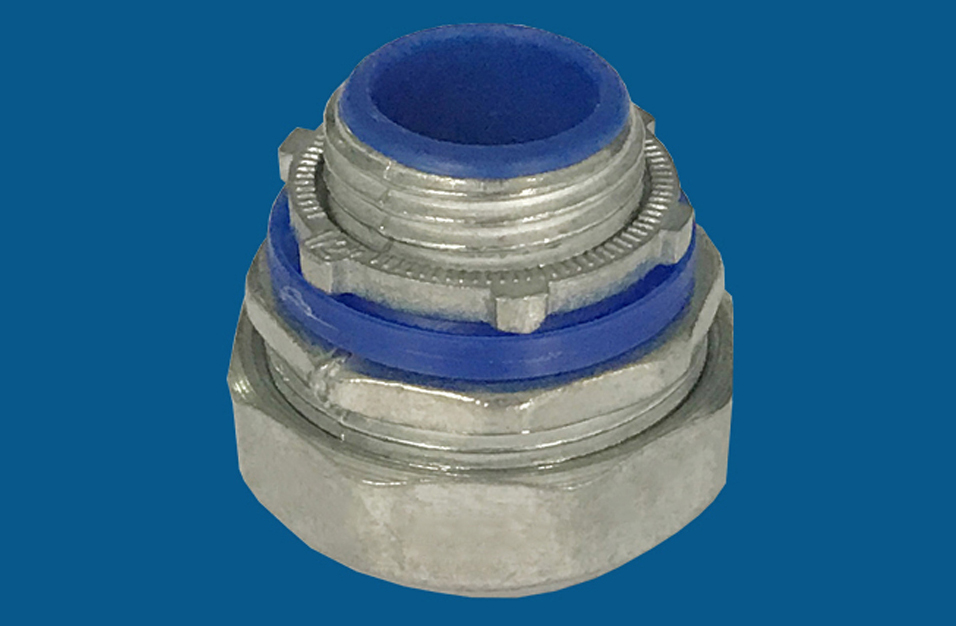

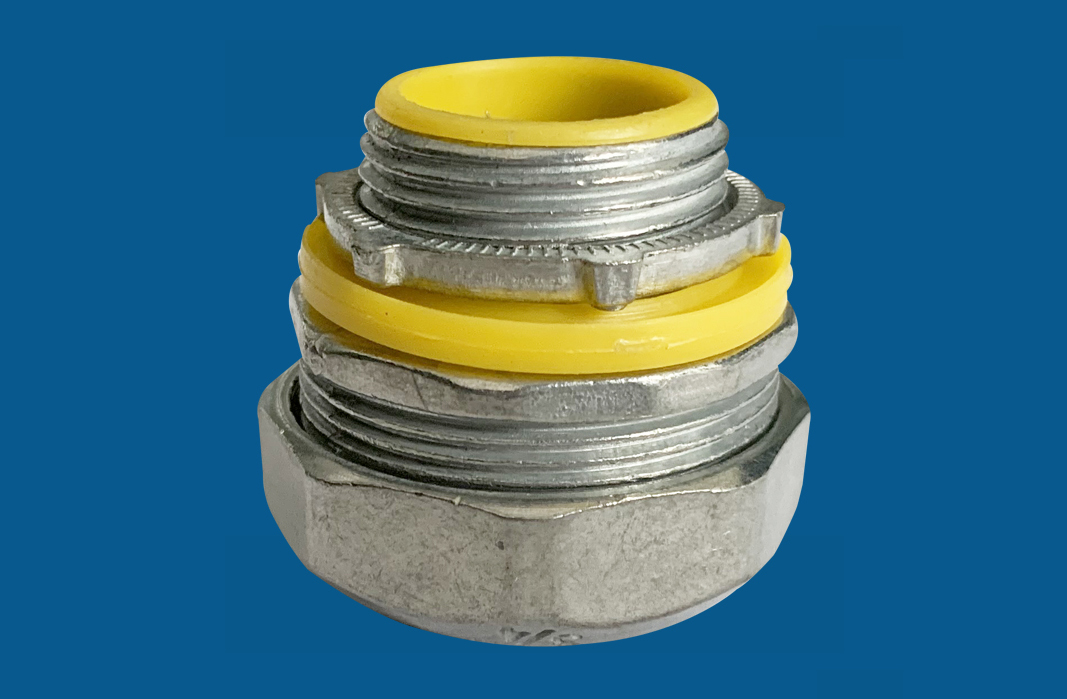

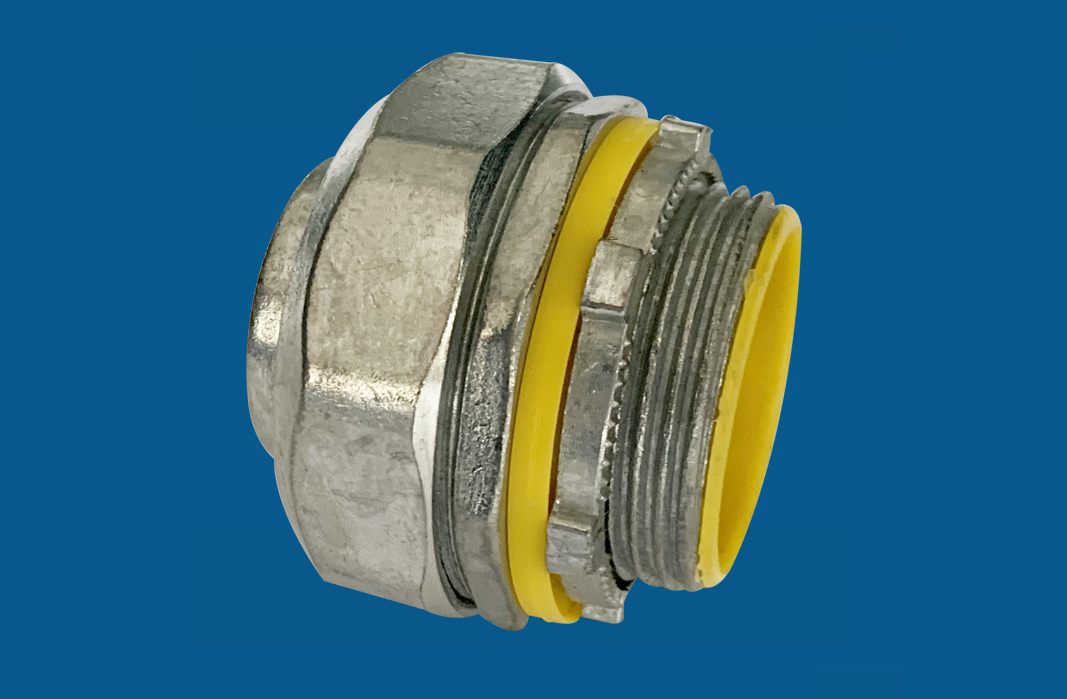

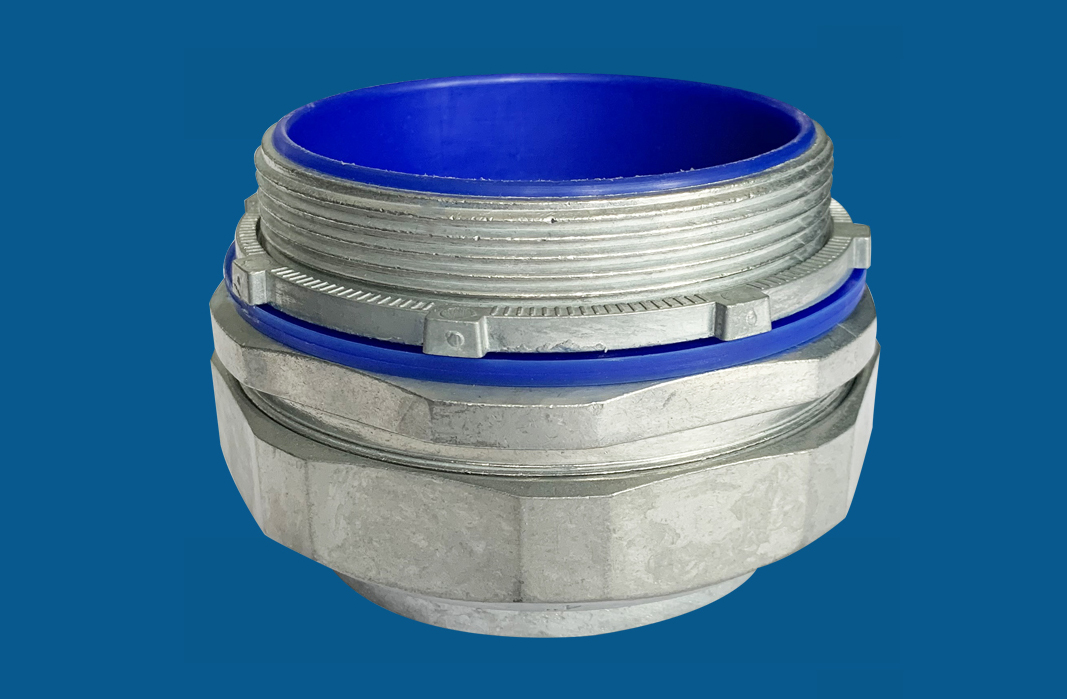

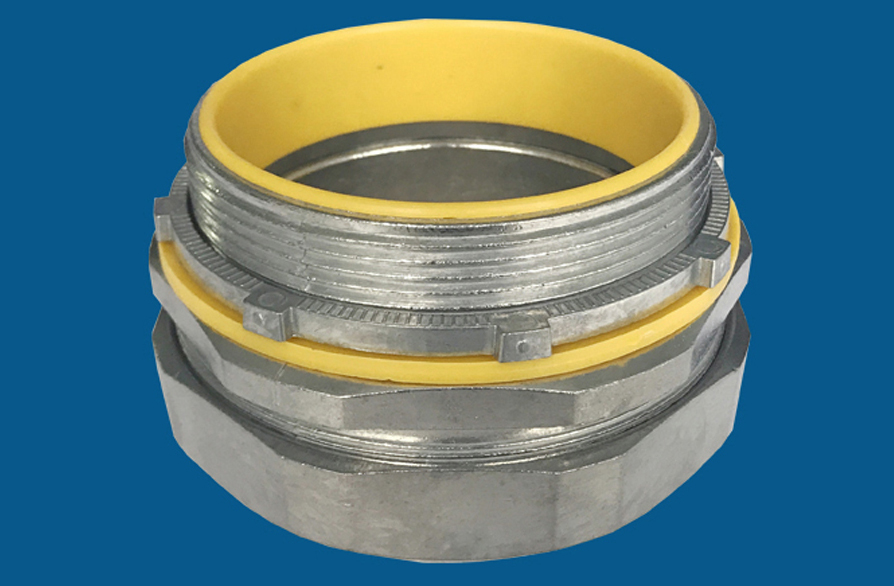

ELECMAN ® Zinc Liquid Tight Connector Straight Type

PRODUCT: Liquid tight connector

MATERIAL: Zinc die cast

TYPE: Straight

APPLICATION:

Zinc straight liquid tight connectors are used to terminate and seal liquidtight flexible metal conduit to either olitight,liquidtight or raintight box or enclosure,connectors can be used with tapered thread female entry or unthreaded knockout using the provided sealing washer and lockut

FEATURES:

·Zinc die cast body, aluminum cover, neoprene gasket and steel screws

·Easy to pull the wire when install

·Assembled with zinc die cast locknut

CERTIFICATIONS AND COMPLIANCES:

•  UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following hazardous locations under NEC:

- Class I, Division 2;

- Class II, Divisions 1 & 2; and

- Class III, Divisions 1 & 2;

- Suitable for grounding in sizes 3 /8” through 11 /4” under NEC

• UL Standards 514B, 467

• cUL Standard C22.2 No. 18F

• UL File No. E503810

PACKING INFORMATION

INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton

Other names: liquid tight connector, Conector Recto Liquid Tight,Conector hermético recto,CONECTOR LIQUID TIGHT RECTO,Conector Hermetico ,CONECTOR RECTO HERMÉTICO LIQUID TIGHT
