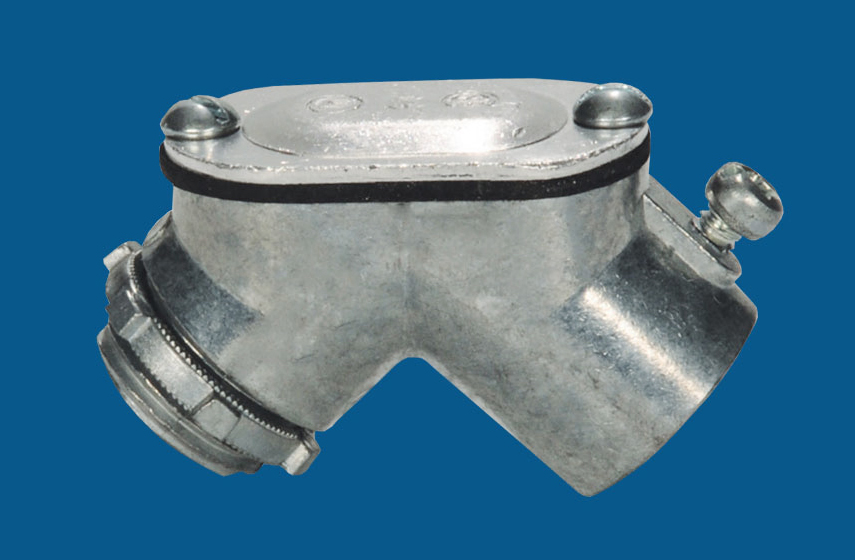

90° Pull Elbows EMT to Box
Material : Zinc die cast
Surface Finish : Polishing
Type : 90° ,Set screw type
PRODUCT: 90° pull ebows EMT to box
MATERIAL: Zinc die cast
TYPE: 90°,Set screw type
CERTIFICATION AND COMPLIANCE:
UL listed
File No.: E513114
APPLICATION:
ELECMAN® 90° pull elbow EMT to box connectors are used to connect EMT conduit to a box or enclosure to create a 90° turn when bending conduit is not feasible in dry locations
FEATURES:
·Zinc die cast body, aluminum cover, neoprene gasket and steel screws
·Easy to pull the wire when install
·Assembled with zinc die cast locknut
| Cat.# | Trade Size |
| PEN050 | 1/2" |
| PEN075 | 3/4" |
| PEN100 | 1" |
| PEN125 | 1-1/4" |
PACKING INFORMATION
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
