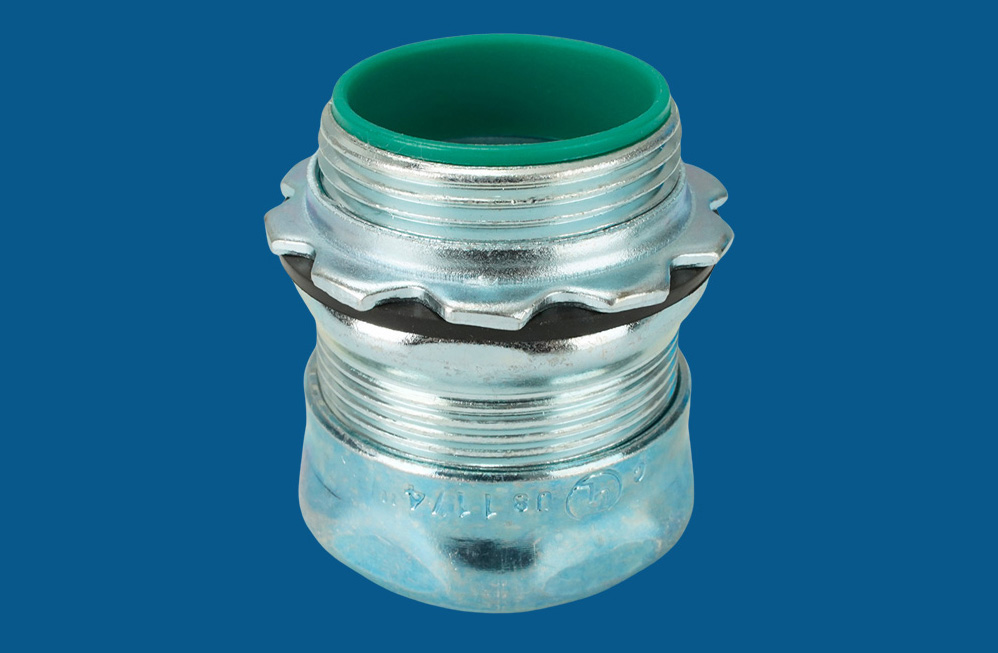

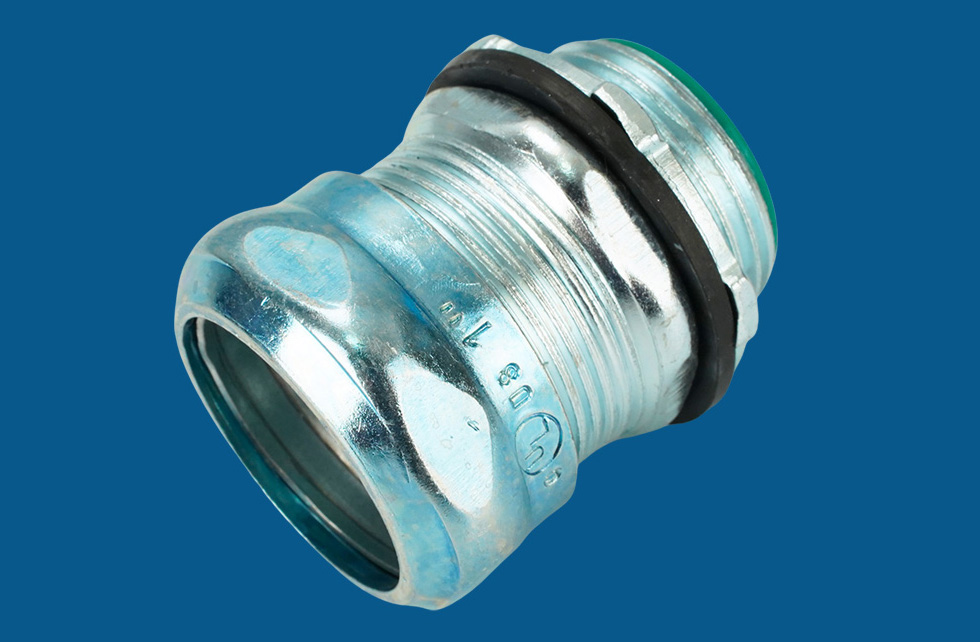

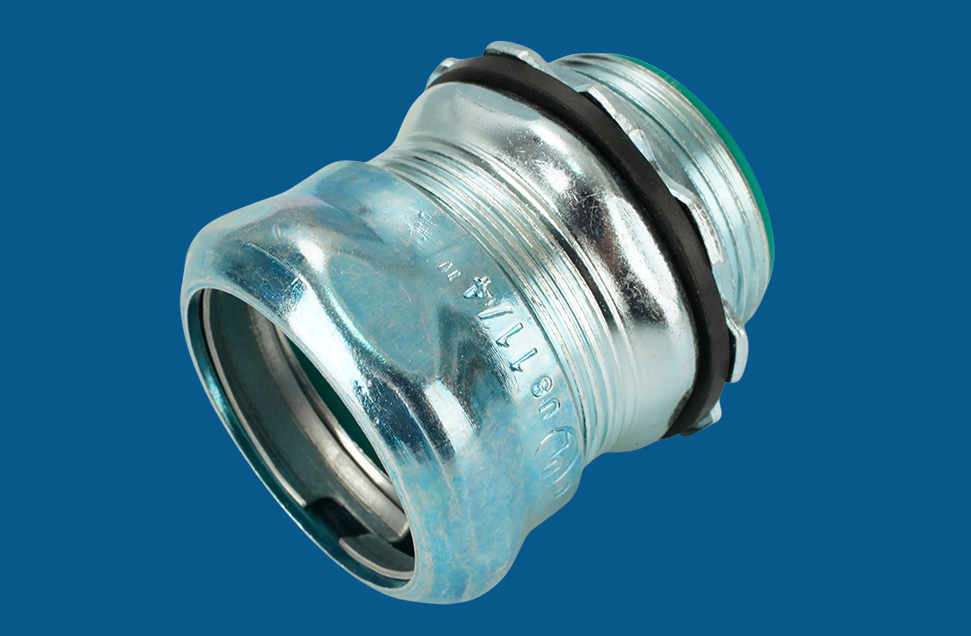

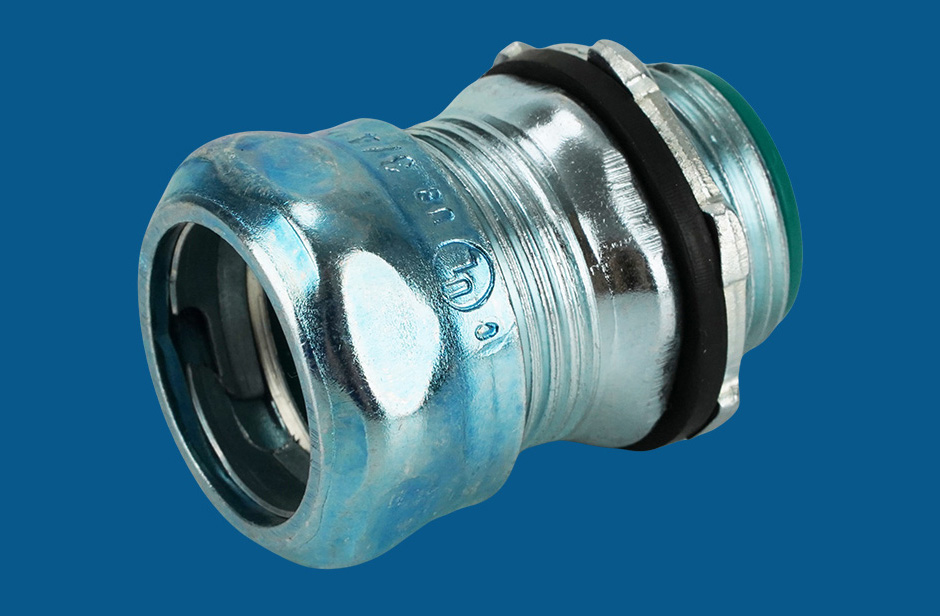

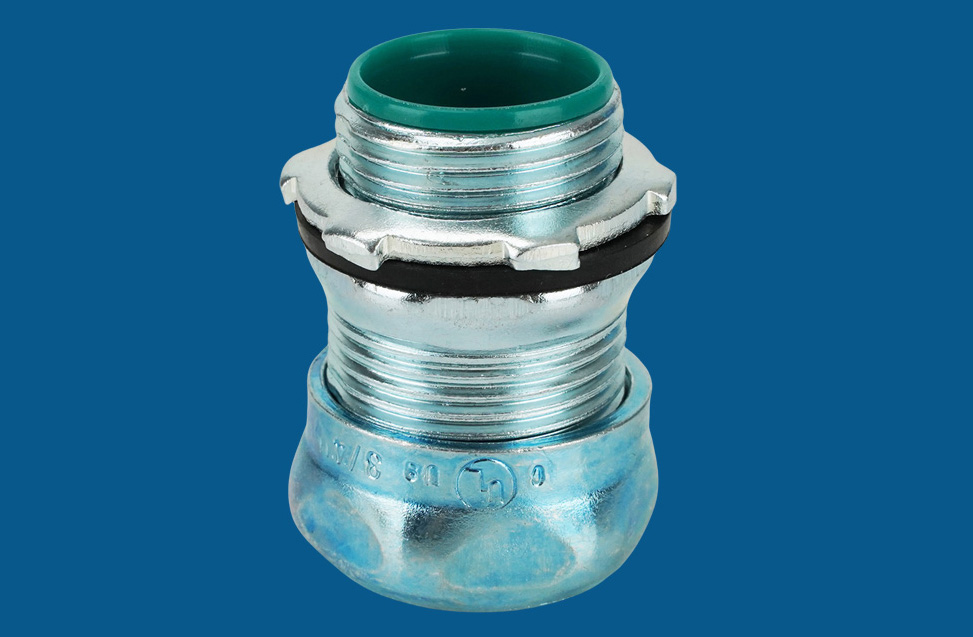

Steel Raintight EMT Conduit Connector Compression type
Material : Steel / Neoprene Rubber / Nylon Compression Ring
Surface Finish : Zinc electroplated
Type : Rain
ELECMAN® Steel Raintight EMT Conduit Connector Compression EMT Conduit To Box Type
Applications
ELECMAN® Steel raintight EMT conduit connector compression EMT conduit to box type is used in dry locations to economically bond EMT conduit to a box or enclosure.
Features
Male hub threads NPS.
Blue nut eases identification.
Insulated type are available.
Suitable for use outdoor.
Raintight – Wet locations.
All components are zinc electro-plated for corrosion protection.
Provide concrete-tight connections when taped.
All steel construction insures mechanical protection for the raceway.
Certifications and Compliances
ELECMAN® Steel raintight EMT conduit connector compression EMT conduit to box type shall be produced to the following specification:

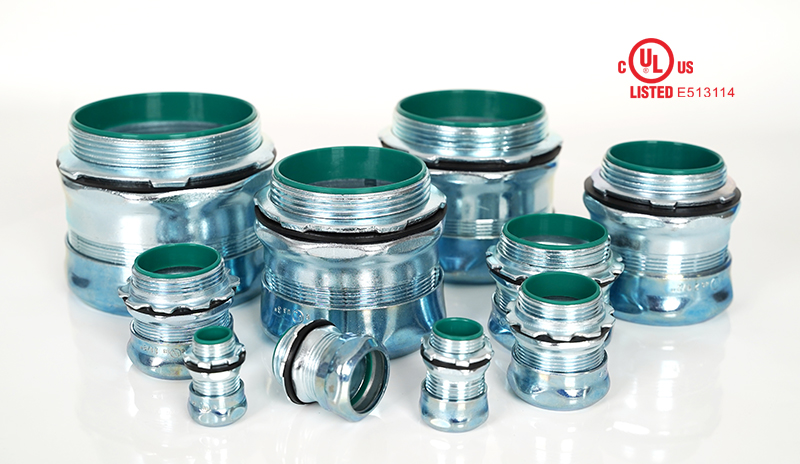

UL Listed
File No.: E513114
Specification Data
ELECMAN provides full size steel raintight EMT conduit connector compression EMT conduit to box type from 1/2" to 4".
| CAT # | Trade Size |
| RTON050 | 1/2" |
| RTON075 | 3/4" |
| RTON100 | 1" |
| RTON125 | 1-1/4" |
| RTON150 | 1-1/2" |
| RTON200 | 2" |
| RTON250 | 2-1/2" |
| RTON300 | 3" |
| RTON350 | 3-1/2" |
| RTON400 | 4" |
Packing Information
Packing is so important, good packing can help customers improve the brand image and stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
