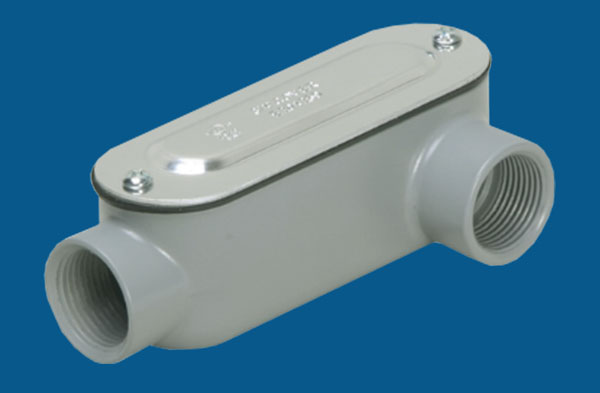

Rigid Conduit Bodies-LL type
Material : Aluminum die cast
Surface Finish : Powder coat
Type : Threaded LL type

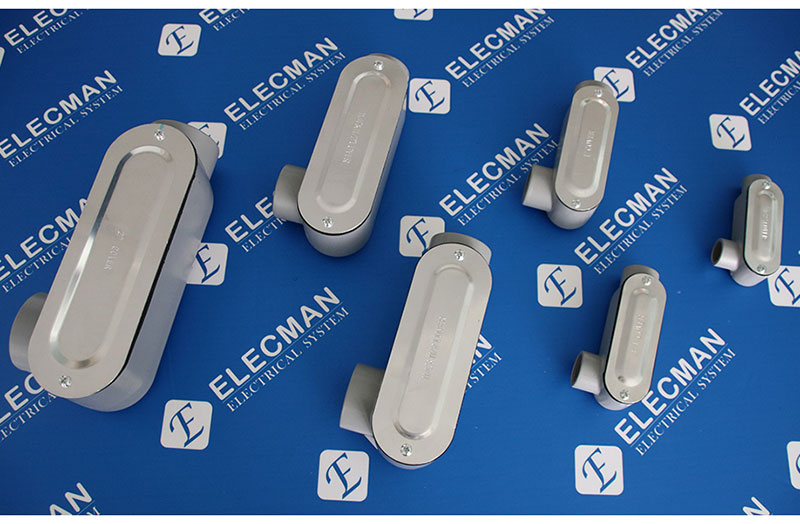

ELECMAN ® Rigid Conduit Bodies-LL type
PRODUCT: Rigid conduit body
MATERIAL: Aluminum die cast
TYPE: Threaded LB type
APPLICATION:
ELECMAN®Rigid conduit bodies are used with IMC/Rigid conduit, for pulling access or to split into multiple directions. Removable cover allows access for maintenance and making taps and splices to conductors.
FEATURES:
·Durable die cast aluminum construction.
·Premium powder coat finish.
·Stamped aluminum cover.
·Includes NBR synthetic rubber gasket.
·Combination head screw.
| Cat.# | Size | Dimensions | ||
| Height/cm | Length/cm | Width/cm | ||
| TLL50 | 1/2" | 4.05 | 10.95 | 5.15 |
| TLL75 | 3/4" | 4.73 | 12.91 | 5.85 |
| TLL100 | 1" | 5.40 | 15.03 | 6.81 |
| TLL125 | 1-1/4" | 6.95 | 19.86 | 8.94 |
| TLL150 | 1-1/2" | 6.95 | 19.86 | 8.94 |
| TLL200 | 2" | 9.25 | 25.53 | 10.85 |
PACKING INFORMATION
Individually shrink-wrapped for each conduit body
External packing: Corrugated carton
