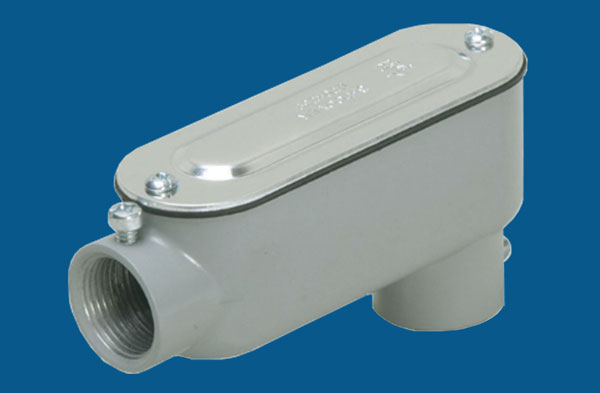

Combination Conduit Bodies-LB type
Material : Aluminum die cast
Surface Finish : Powder coat
Type : set screw & threaded combination LB type
ELECMAN ® Combination Conduit Bodies-LB type
PRODUCT:Combination Conduit Bodies
MATERIAL: Aluminum die cast
TYPE: Set screw & threaded combination LB type
APPLICATION:
ELECMAN®Combination conduit bodies are used with threaded IMC/Rigid conduit, or EMT, for pulling access or to split into multiple directions. Removable cover allows access for maintenance and making taps and splices to conductors.
FEATURES:
·Durable die cast aluminum construction.
·Premium powder coat finish.
·Stamped aluminum cover.
·Includes NBR synthetic rubber gasket.
·Combination head screw.
| Cat.# | Size | Dimensions | ||
| Height/cm | Length/cm | Width/cm | ||
| STLB50 | 1/2" | 5.90 | 10.95 | 3.40 |
| STLB75 | 3/4" | 6.68 | 12.91 | 3.97 |
| STLB100 | 1" | 7.65 | 15.03 | 4.62 |
| STLB125 | 1-1/4" | 9.55 | 19.86 | 6.37 |
| STLB150 | 1-1/2" | 9.55 | 19.86 | 6.37 |
| STLB200 | 2" | 12.05 | 25.53 | 8.10 |
PACKING INFORMATION
Individually shrink-wrapped for each conduit body
External packing: Corrugated carton
