UL1242 IMC Elbow
Material : Galvanized steel
Surface Finish : Hot dipped galvanized & Pre-galvanized
Type : 45° or 90°

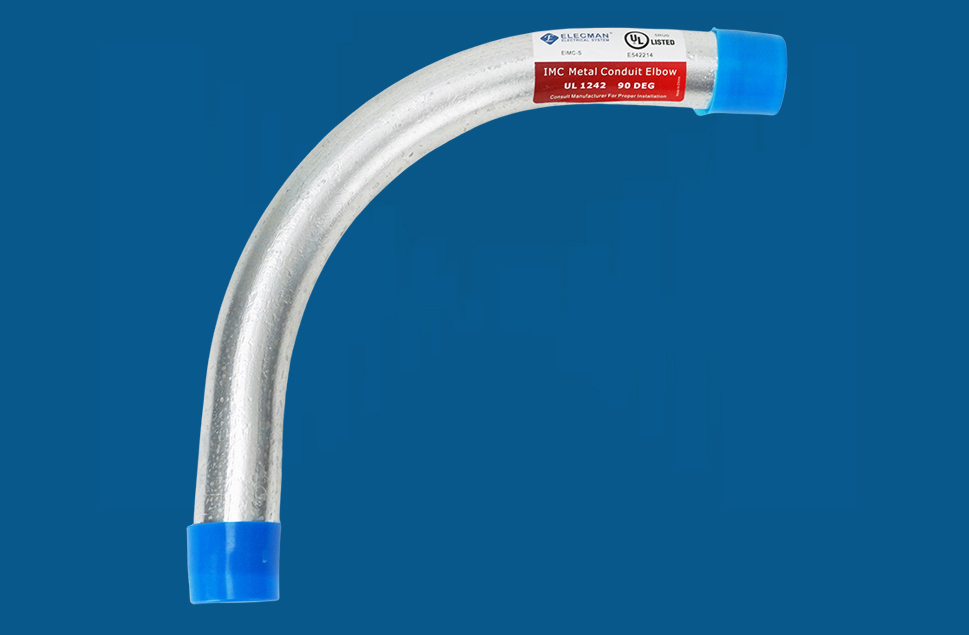

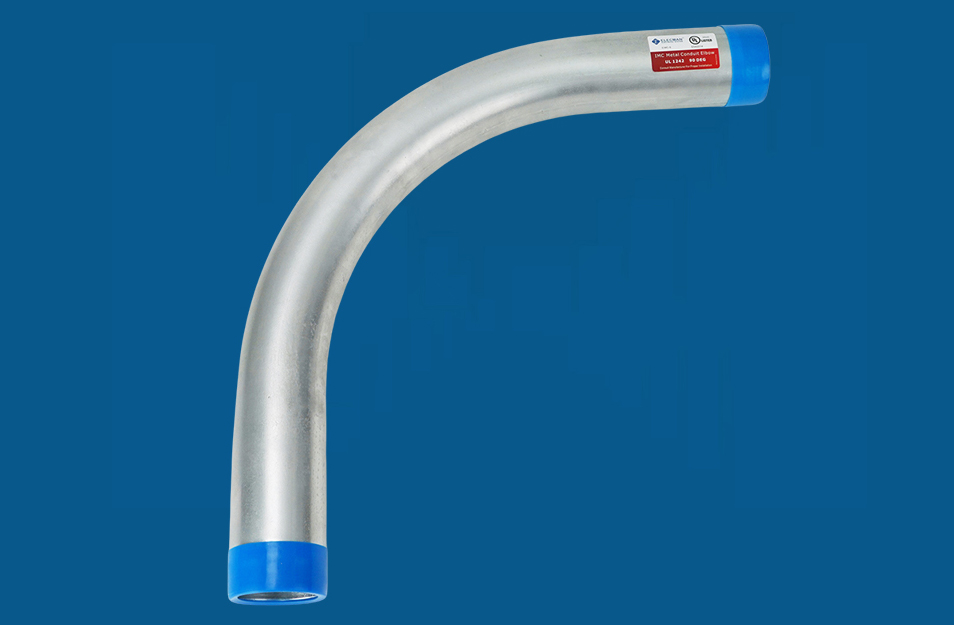

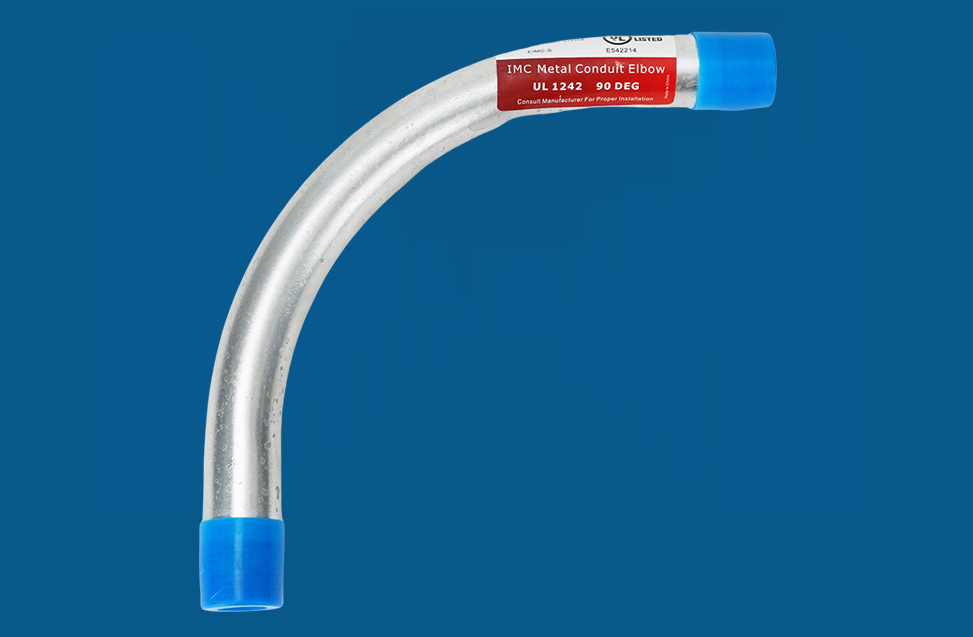

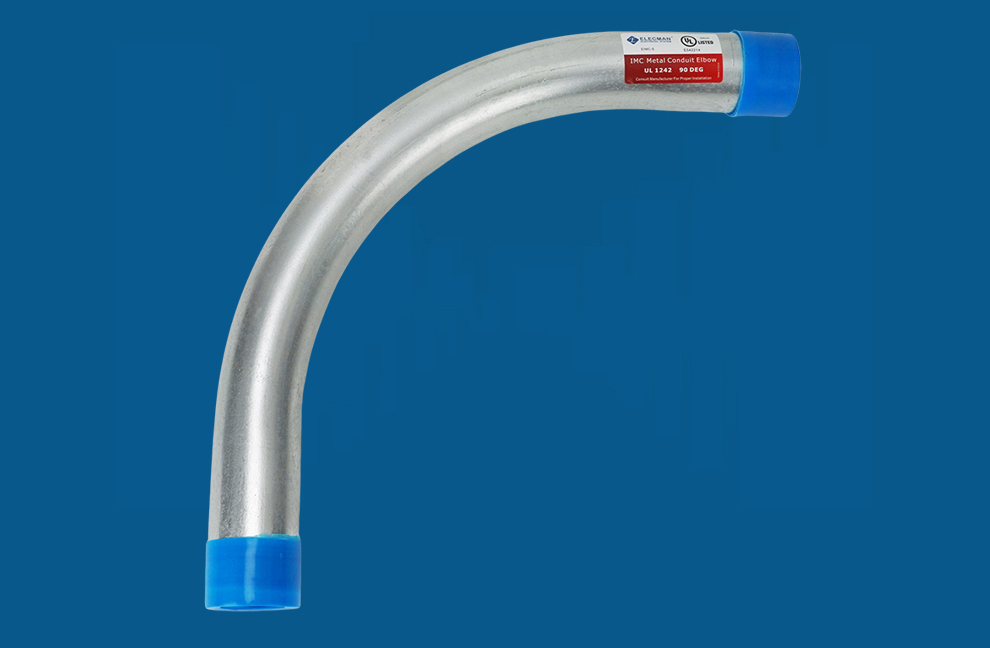

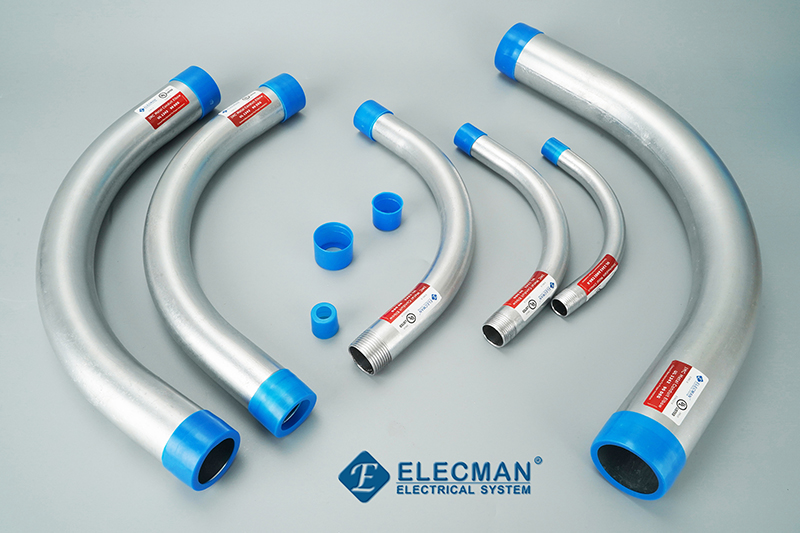

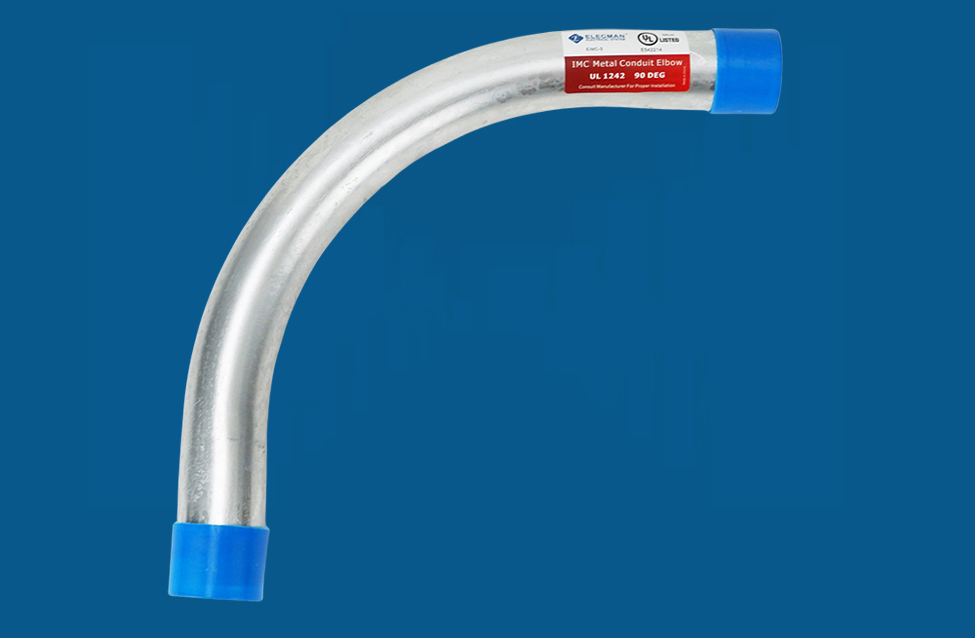

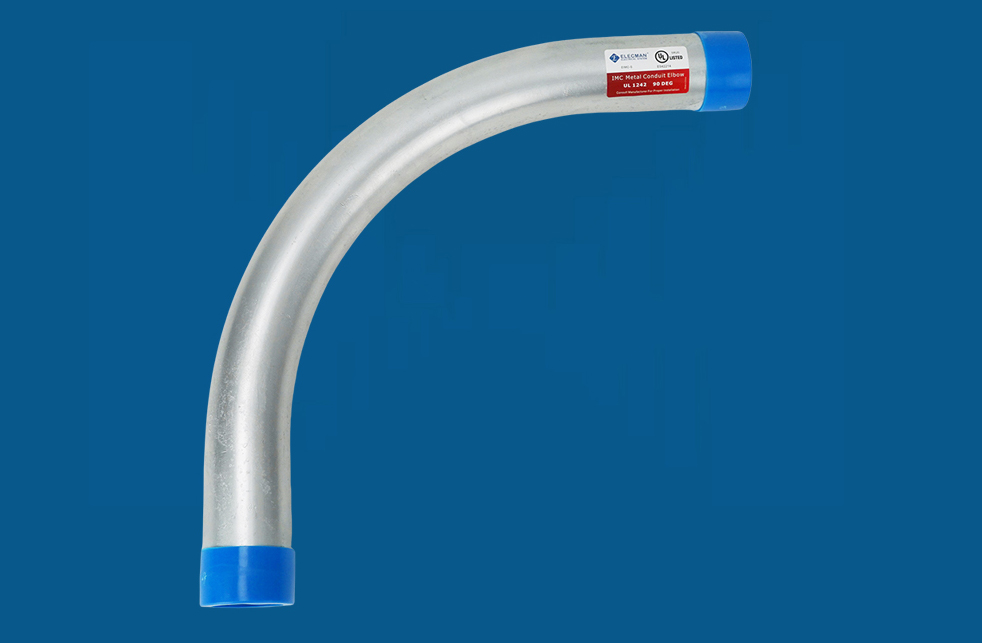

ELECMAN ® IMC elbow
PRODUCT: IMC elbow
MATERIAL: Galvanized Steel
GALVANIZED TYPE: Pre-galvanized or Hot dipped galvanized
TYPE: 45 or 90 degree
SIZE: Available in sizes 1/2 " – 4"
STANDARD:
Listed to Underwriters Laboratories Safety Standard UL1242
Manufactured in accordance with ANSI C80.6
Threaded ends (NPT)
Applications
IMC Elbows are to be installed on conduit raceways for underground stub-ups, and interconnection of conduit runs and other fittings.
| 45° type | 90° type | |||
| CAT# | Trade size | CAT# | Trade size | |
| IEF050 | 1/2" | IEN050 | 1/2" | |
| IEF075 | 3/4" | IEN075 | 3/4" | |
| IEF100 | 1" | IEN100 | 1" | |
| IEF125 | 1-1/4" | IEN125 | 1-1/4" | |
| IEF150 | 1-1/2" | IEN150 | 1-1/2" | |
| IEF200 | 2" | IEN200 | 2" | |
| IEF250 | 2-1/2" | IEN250 | 2-1/2" | |
| IEF300 | 3" | IEN300 | 3" | |
| IEF350 | 3-1/2" | IEN350 | 3-1/2" | |
| IEF400 | 4" | IEN400 | 4" | |
Packing information
EXTERNAL PACKING: Corrugated Carton
