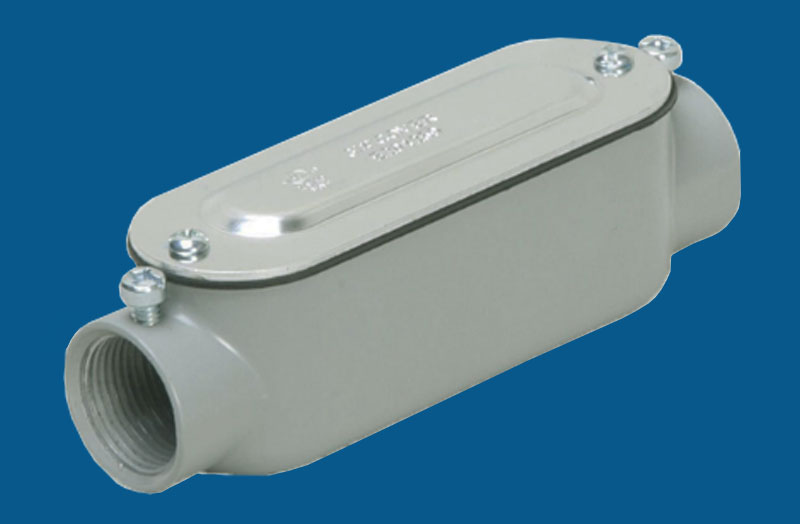

Combination Conduit Bodies-C type
Material : Aluminum die cast
Surface Finish : Powder coat
Type : Set screw & threaded combination C type
ELECMAN ® Combination Conduit Bodies-C type
PRODUCT:Combination Conduit Bodies
MATERIAL: Aluminum die cast
TYPE: Set screw & threaded combination C type
APPLICATION:
ELECMAN®Combination conduit bodies are used with threaded IMC/Rigid conduit, or EMT, for pulling access or to split into multiple directions. Removable cover allows access for maintenance and making taps and splices to conductors.
FEATURES:
·Durable die cast aluminum construction.
·Premium powder coat finish.
·Stamped aluminum cover.
·Includes NBR synthetic rubber gasket.
·Combination head screw.
| Cat.# | Size | Dimensions | ||
| Height/cm | Length/cm | Width/cm | ||
| STC50 | 1/2" | 4.05 | 12.00 | 3.40 |
| STC75 | 3/4" | 4.73 | 14.00 | 3.97 |
| STC100 | 1" | 5.40 | 16.40 | 4.62 |
| STC125 | 1-1/4" | 6.95 | 21.20 | 6.37 |
| STC150 | 1-1/2" | 6.95 | 21.20 | 6.37 |
| STC200 | 2" | 9.25 | 26.80 | 8.10 |
PACKING INFORMATION
Individually shrink-wrapped for each conduit body
External packing: Corrugated carton
