Threaded Rods
Material : Steel
Surface Finish : Zinc Plated, Hot-Dipped Galvanized
Type : All threaded

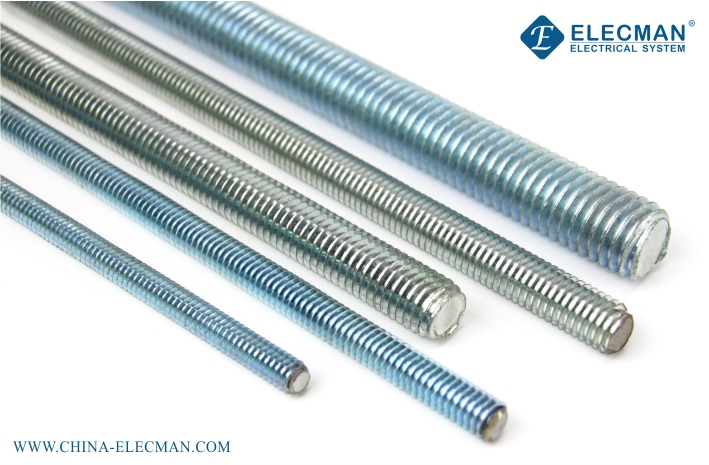

ELECMAN® Threaded Rods

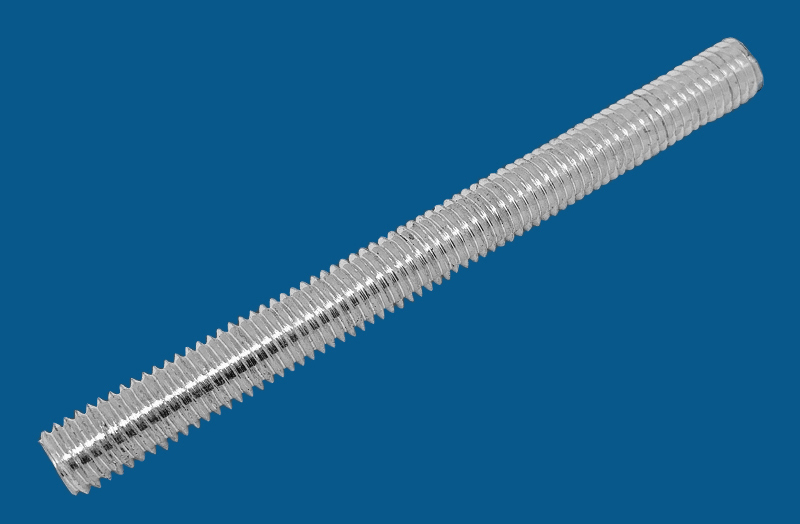

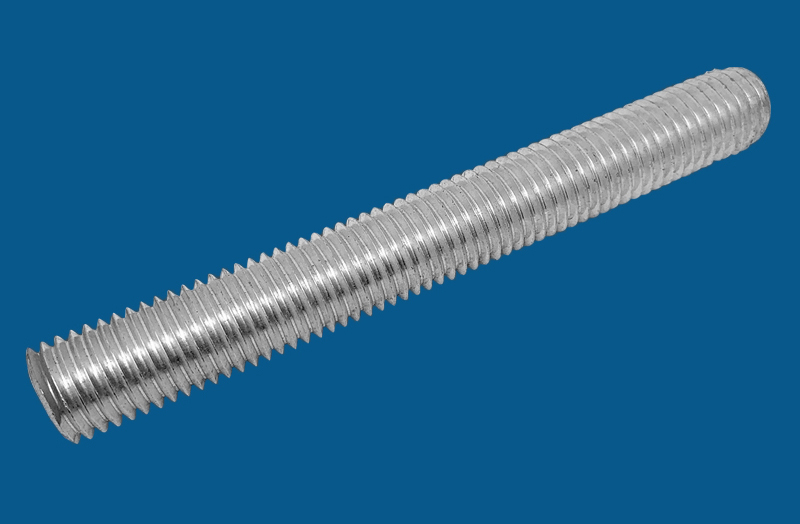

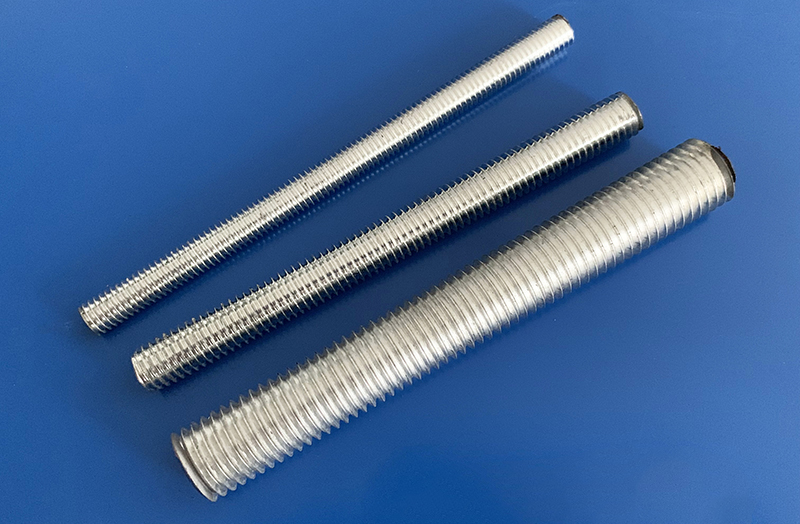

PRODUCT: Threaded rod
MATERIAL: Low Carbon Steel, Stainless Steel
THREADED TYPE: UNC
FINISH: Zinc Plated, Hot-Dipped Galvanized
TYPE: All thread
APPLICATION:
ELECMAN®threaded rods are used with strut channels to support the electrical pipe system.
FEATURES:
·The thread extend along the compete length of the rod
·Different color zinc coating are available
·Different length of each are available
·Low carbon steel
| UNC THREAD | METRIC THREAD | RECOMMENDED LOAD | |||
| CAT.# | TRADE SIZE | CAT.# | TRADE SIZE | LBS. | KN |
| TR14 | 1/4" | TRM6 | M6 | 240 | 1.07 |
| TR516 | 5/16" | TRM8 | M8 | 380 | 1.69 |
| TR38 | 3/8" | TRM10 | M10 | 730 | 3.24 |
| TR12 | 1/2" | TRM12 | M12 | 1350 | 6.00 |
| TR58 | 5/8" | TRM14 | M14 | 1810 | 8.05 |
| TR34 | 3/4" | TRM16 | M16 | 2710 | 12.05 |
| TR78 | 7/8" | TRM20 | M20 | 3770 | 16.77 |
| TR1 | 1" | 4960 | 22.06 | ||

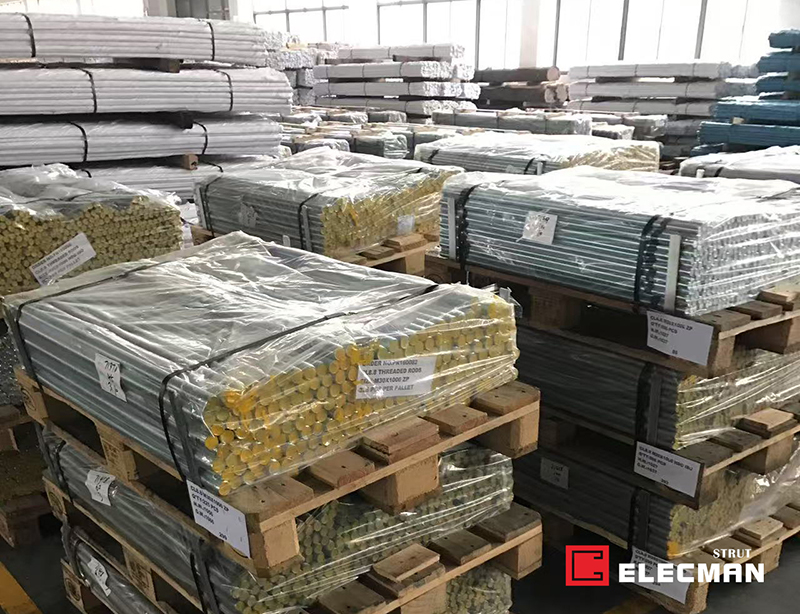

PACKING INFORMATION:
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
ELECMAN® UNC Threaded Rod Specifications Data Sheet.pdf
