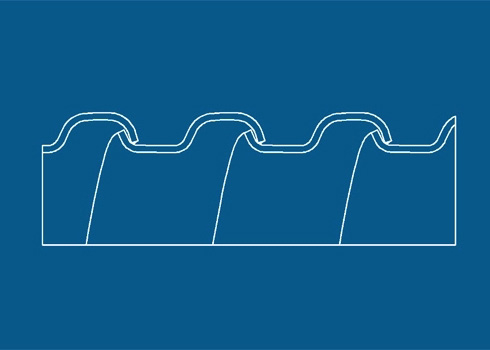

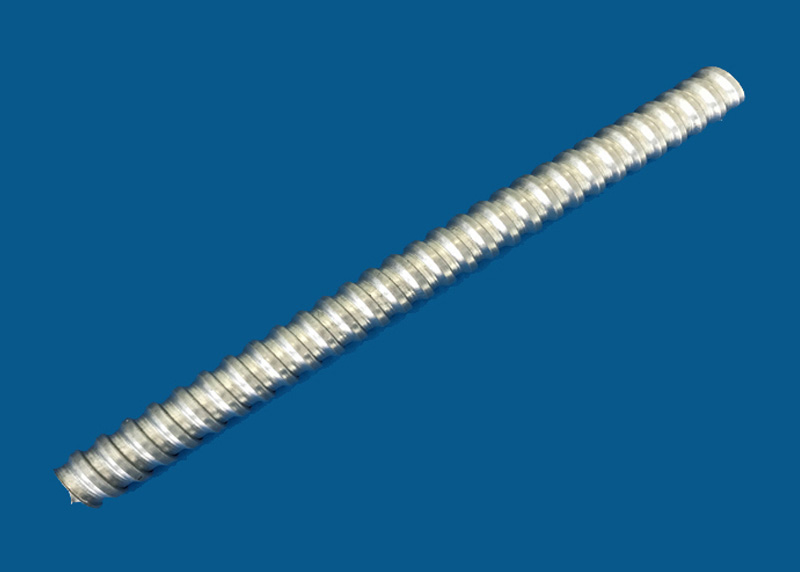

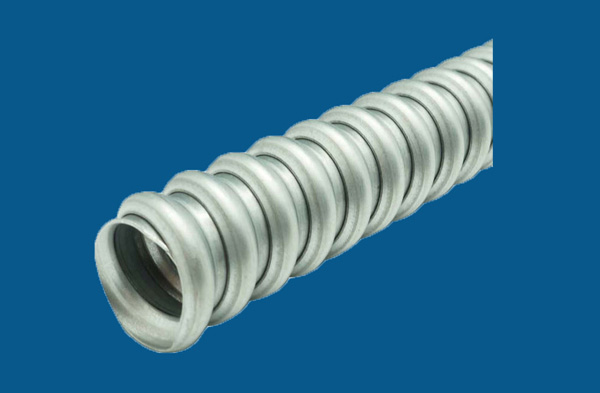

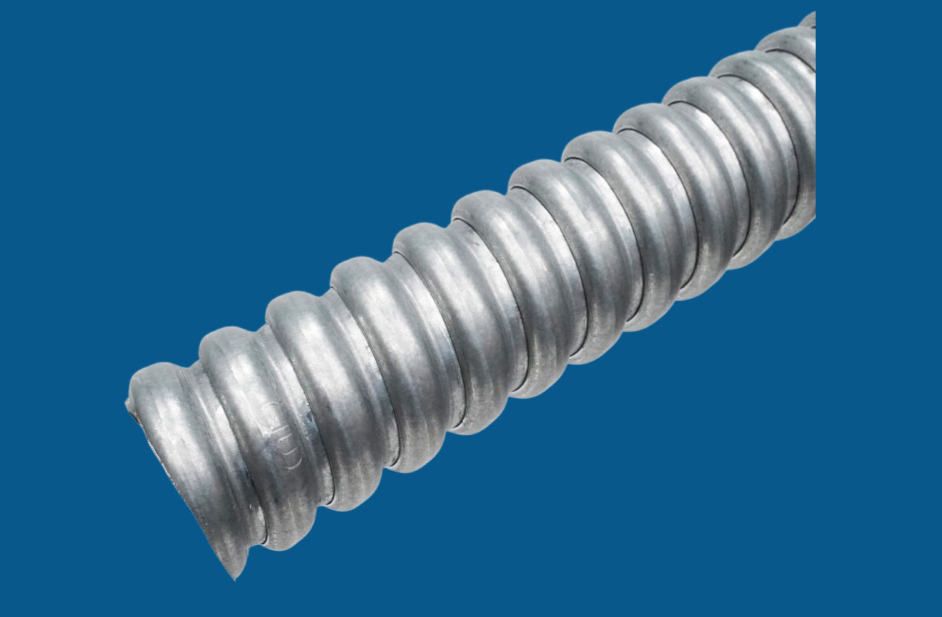

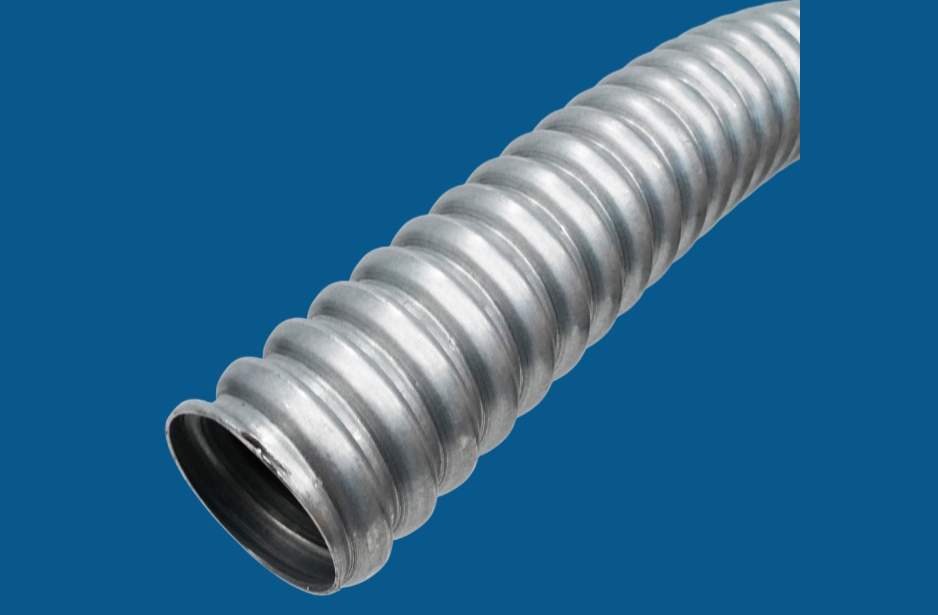

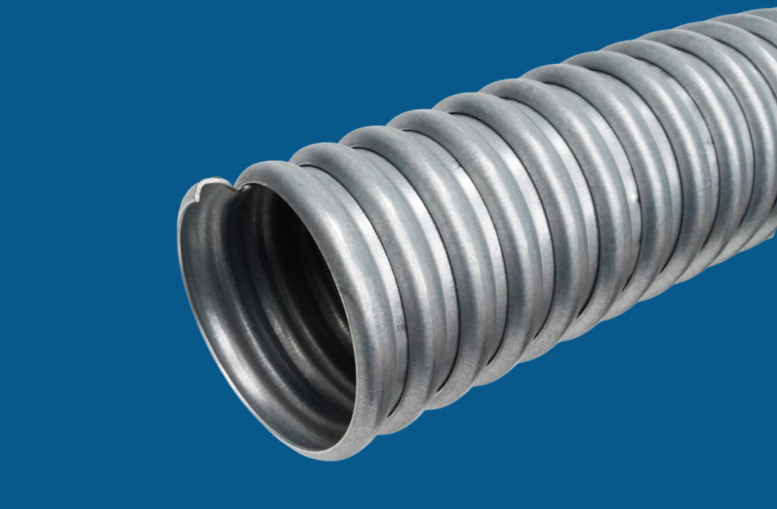

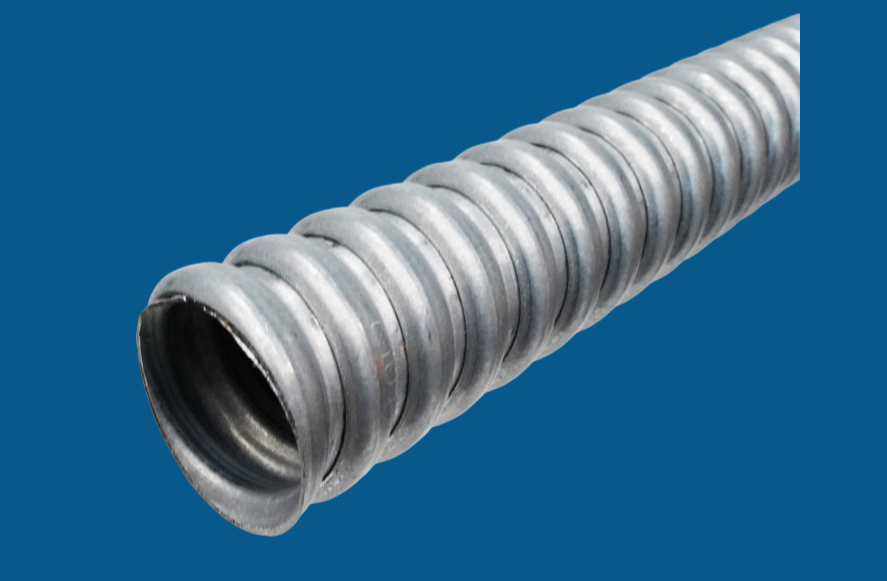

Reduce Wall Steel Flexible Conduit
Material : Galvanized steel
Surface Finish : Galvanized
Type : JSU

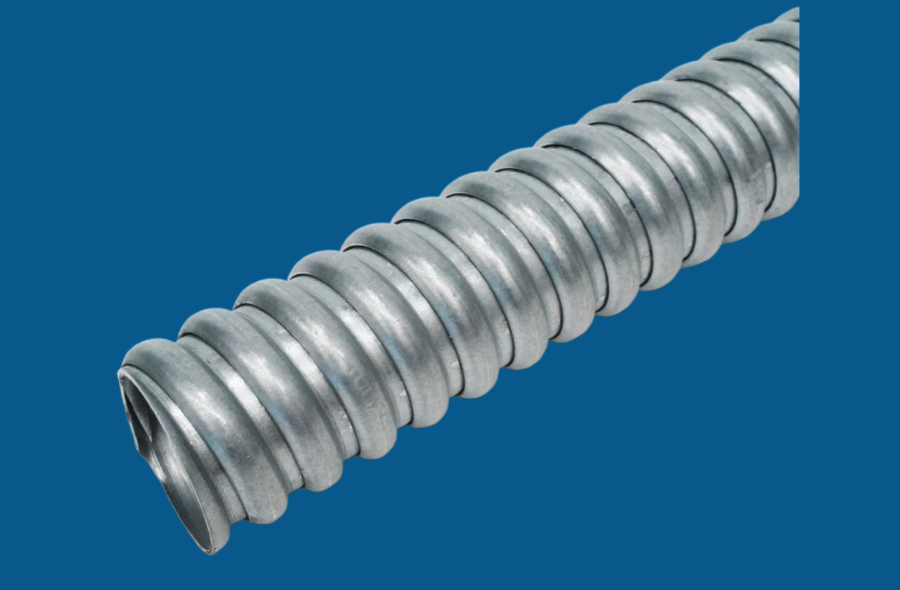

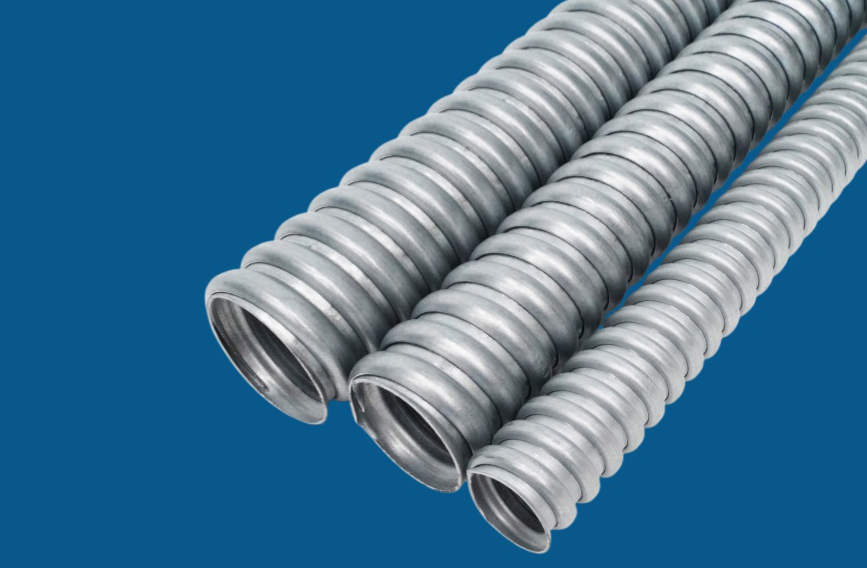

ELECMAN ®Reduce Wall Steel Flexible Conduit
PRODUCT: Flexible metal conduit
MATERIAL: Steel
COLOR:Sliver
TEMPERATURE RANGE: -30℃ ~180 ℃
APPLICATION:
Under Flower Wiring & office Block
Areas subject to heat and sparks (foundries, welding, etc)
Used as mechanical protection for insulated electrical cables and wires that are functional in normal atmospheric temperature.
Under floor applications for computer/floor boxes
For furnace/oven applications
Used for connecting machines to controls Elevator, Metro Stations, CCTV Camera etc.
PRODUCTS FEATURES:
High mechanical strength.
IP rating: IP40 with standard fittings.
Inherent low fire hazard product.

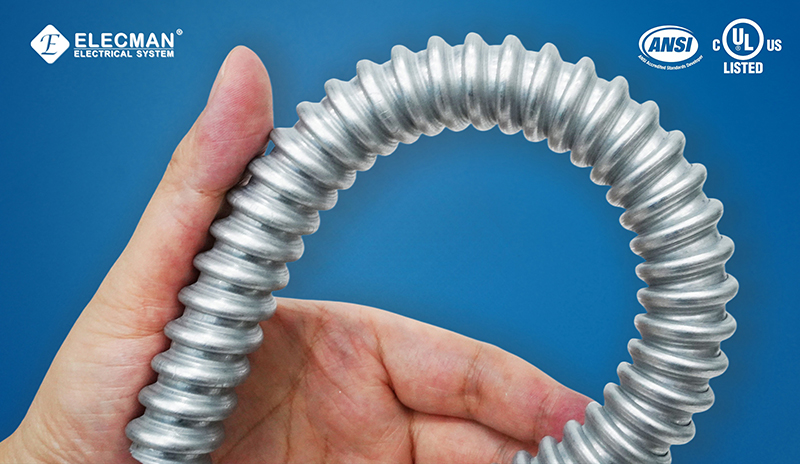

National standard thickness of production, having super soft and excellent bending performance.
Internal smooth structure is very easy for the entry of wire and cable.
| CAT # | Trade Size | Acceptable I.D. | Acceptable O.D. | Bending Radius | Length | ||
| MIN(mm) | MIN(mm) | m/Roll | |||||
| JSU-038 | 3/8" | 9.50 | 15.60 | 51 | 100 | ||
| JSU-050 | 1/2" | 15.80 | 23.40 | 76 | 50 | ||
| JSU-075 | 3/4" | 20.60 | 28.10 | 101 | 50 | ||
| JSU-100 | 1" | 25.40 | 35.10 | 127 | 50 | ||
| JSU-125 | 1-1/4" | 31.80 | 41.40 | 165 | 25 | ||
| JSU-150 | 1-1/2" | 38.10 | 49.53 | 190 | 25 | ||
| JSU-200 | 2" | 50.80 | 62.23 | 254 | 25 | ||
| JSU-250 | 2-1/2" | 63.50 | 77.72 | 317 | 10 | ||
| JSU-300 | 3" | 76.20 | 90.42 | 381 | 10 | ||
| JSU-400 | 4" | 101.60 | 115.82 | 508 | 10 | ||
| Notes:Length of roll can be made according to customers' requirements. | |||||||

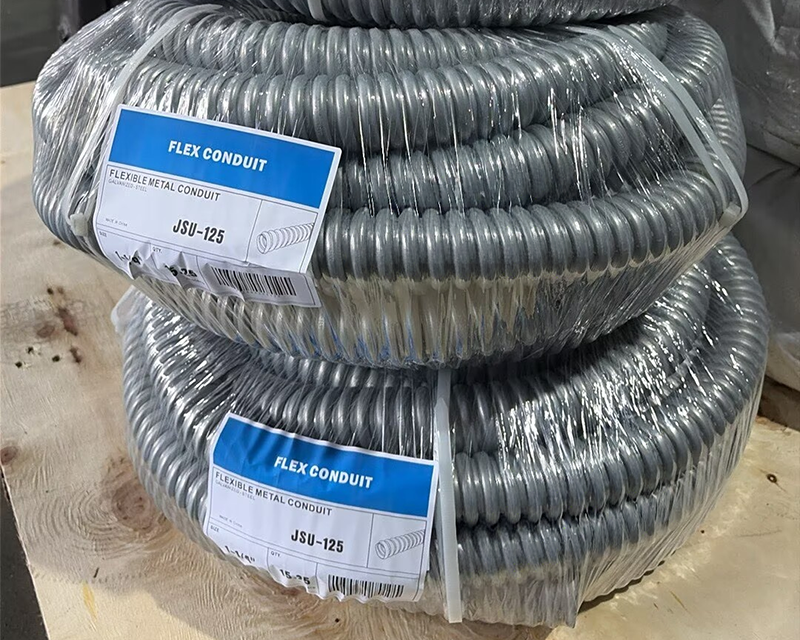

Packing Information
For internal packing, flexible conduits are packed in rolls,
For external packing, use good quality corrugated carton.
