IEC 61386 Liquid Tight Flexible Steel Conduit
Material : PVC
Surface Finish : PVC coated
Type : Liquid tight

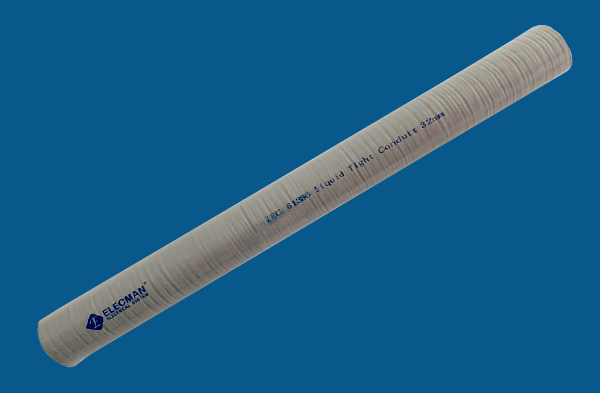

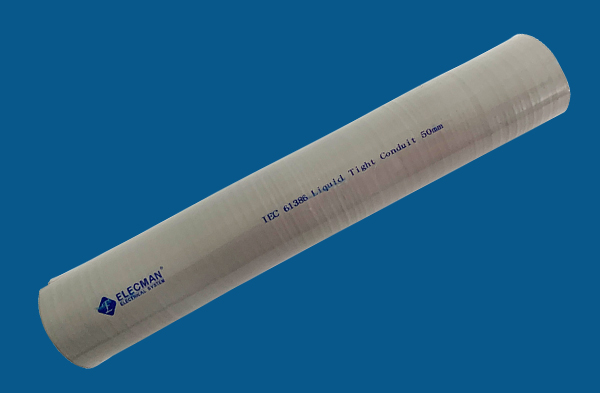

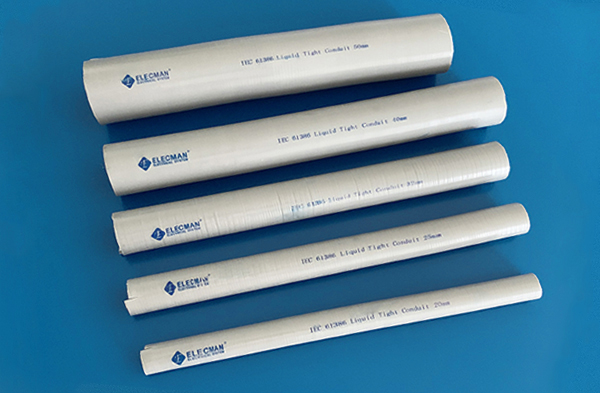

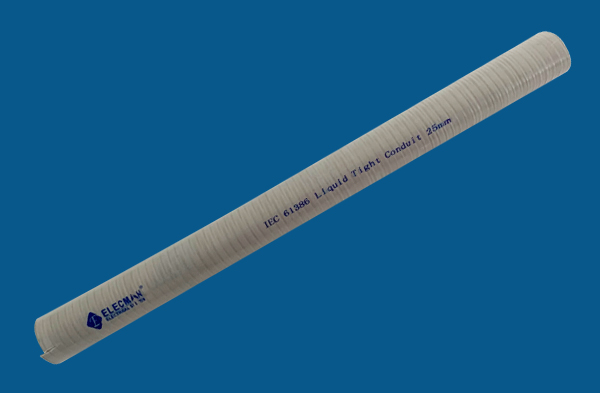

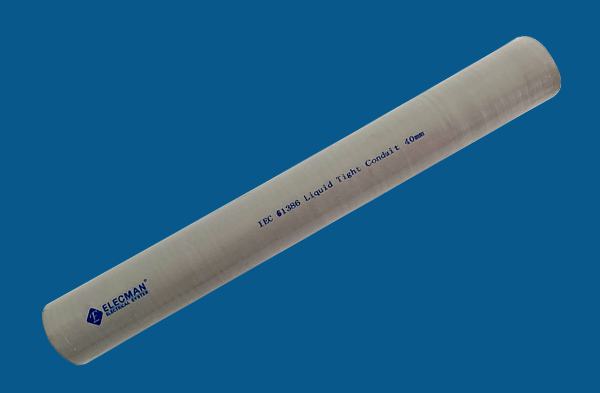

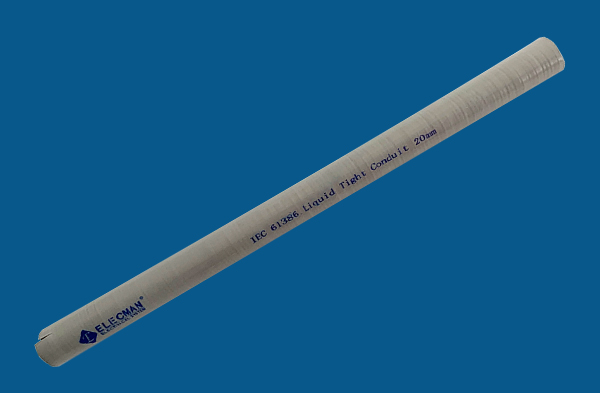

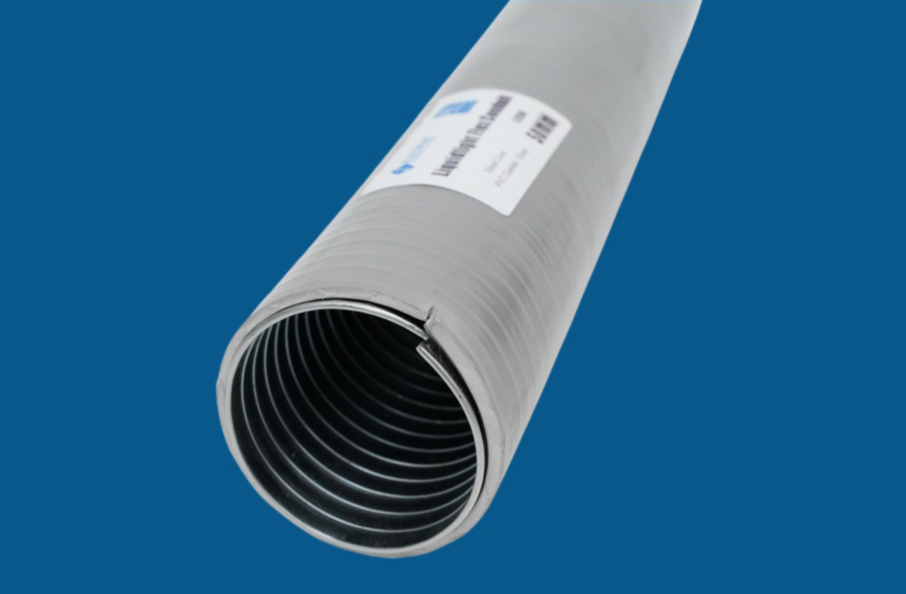

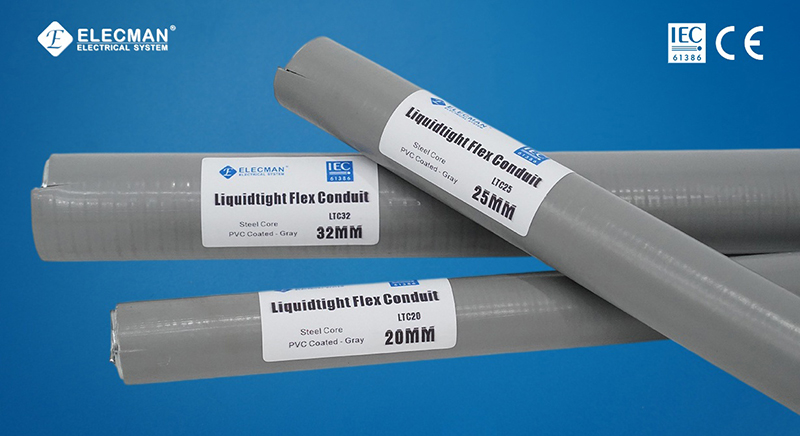

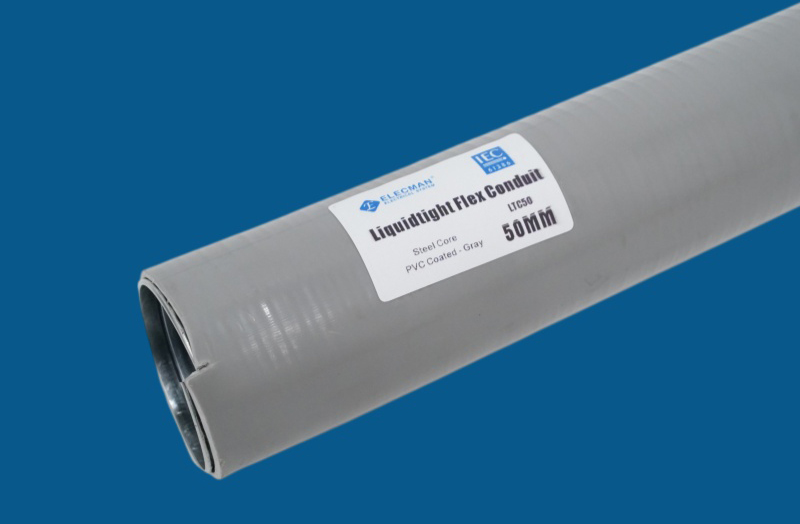

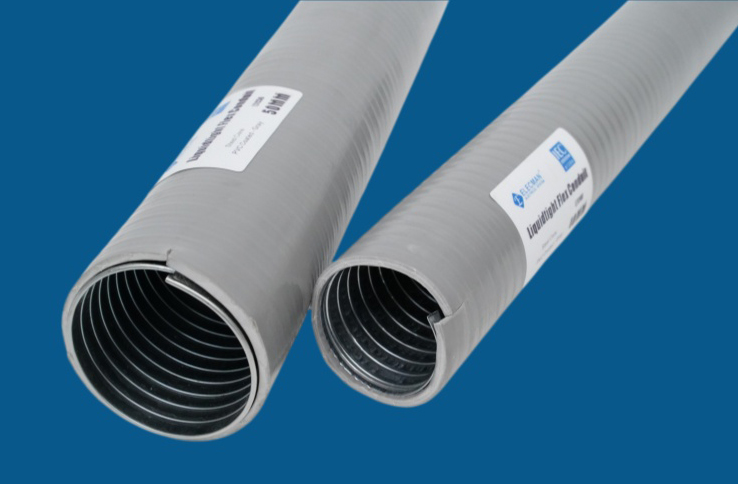

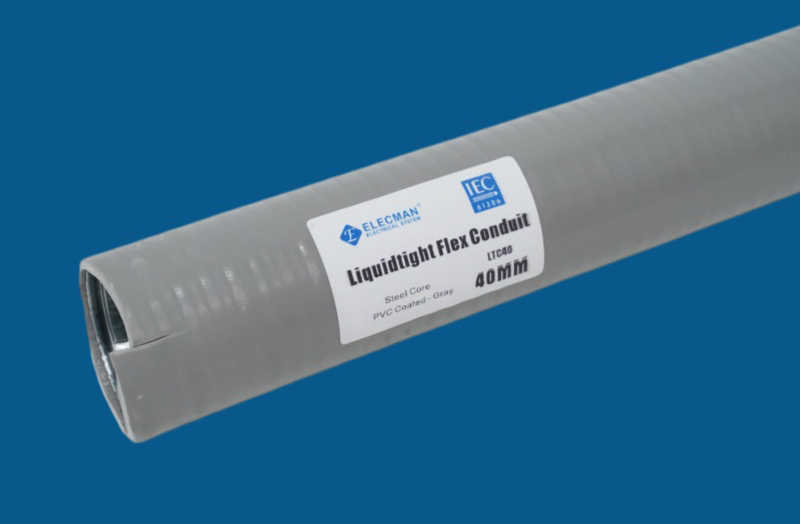

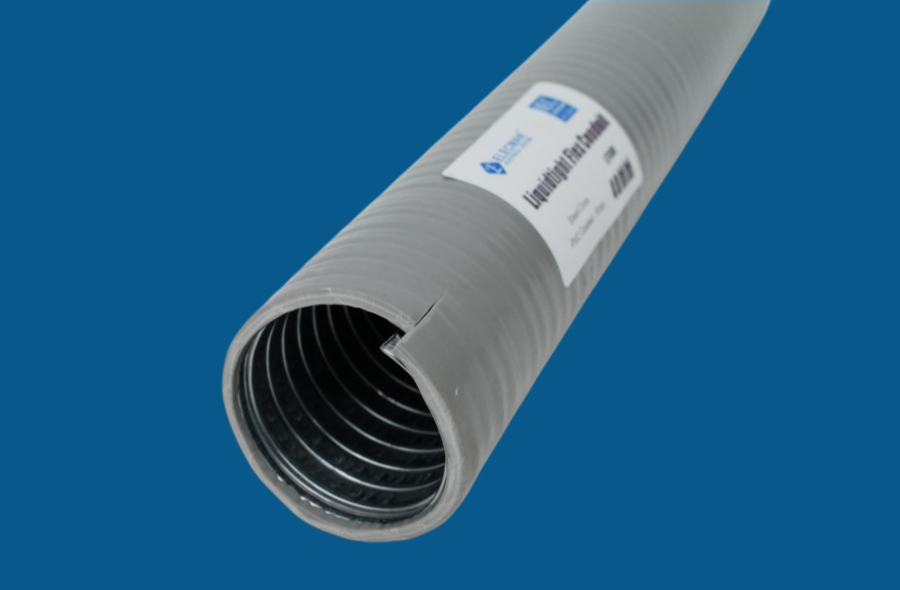

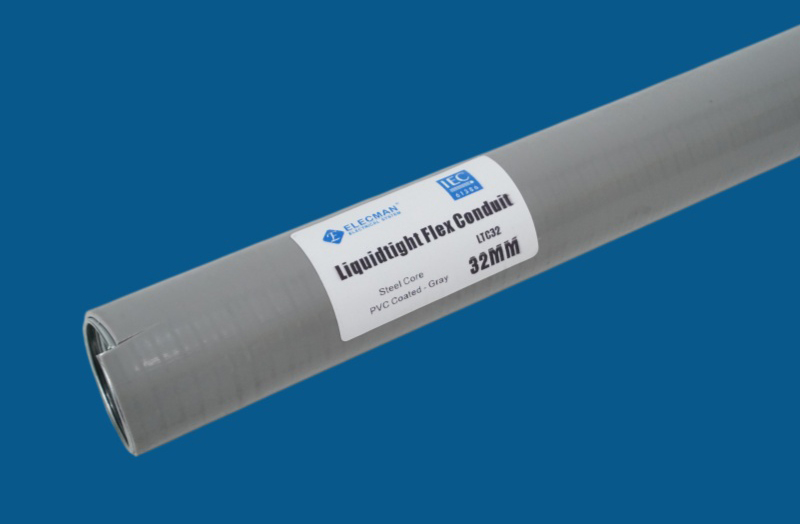

ELECMAN ® IEC 61386 Liquid Tight Flexible Steel Conduit
ELECMAN® IEC liquid tight flexible steel conduit is manufactured in accordance with the IEC 61386 ( conduit systems for cable management ), which can be used as mechanical protection for insulated electrical cables and wires that are functional in normal atmospheric temperature.
ELECMAN® IEC liquid tight flexible steel conduit can be bent by hand with reasonable small force.
Features:
·High mechanical strength.
·IP rating: IP64 & IP65
·National standard thickness of production, having super soft and excellent bending performance.
·Inherent low fire hazard product.
·Internal smooth structure is very easy for the entry of wire and cable.
·Manufacturerd in accordance with IEC 61386 - 1.
·Compliance with Chile SEC certification.
| Trade Size | Inside Diameter | Outside Diameter | Bending | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | Radius | m/Roll | |
| 20 | 14.60 | 15.40 | 19.60 | 20.40 | 100 | 50 |
| 25 | 19.40 | 20.20 | 24.60 | 25.40 | 150 | 50 |
| 32 | 25.60 | 26.60 | 31.50 | 32.50 | 180 | 25 |
| 40 | 32.90 | 34.50 | 39.20 | 40.80 | 220 | 25 |
| 50 | 41.70 | 43.70 | 49.00 | 51.00 | 250 | 25 |
| 63 | 52.00 | 55.00 | 61.50 | 64.50 | 300 | 10 |
| 75 | 63.00 | 66.00 | 73.50 | 76.50 | 320 | 10 |
| 90 | 77.00 | 80.00 | 88.50 | 90.50 | 380 | 5 |
| 110 | 94.50 | 97.50 | 108.50 | 111.50 | 400 | 5 |
Other names: IEC Liquid tight conduit, IEC 61386 Liquid Tight flexible Conduit
