PVC coated flexible steel conduit
Material : PVC & Steel
Surface Finish : PVC coated
Type : JSH

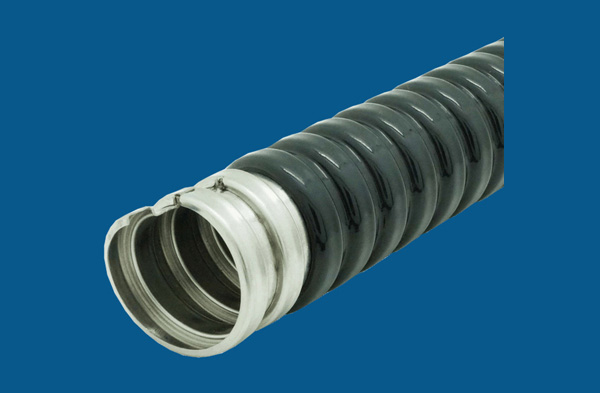

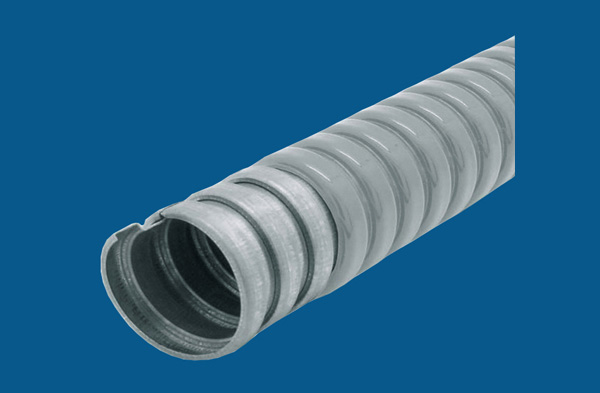

ELECMAN® PVC coated flexible steel conduit
PRODUCT: PVC coated flexible steel conduit
MATERIAL: PVC & Steel
COLOR: Black & grey

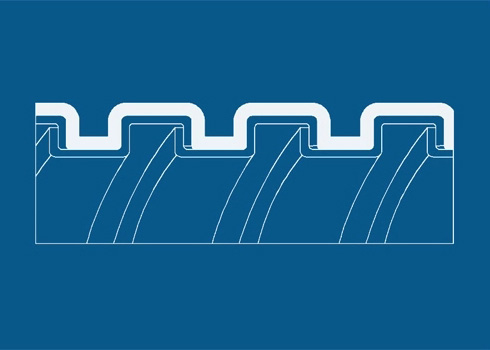

STRUCTURE: Square lock
IP RATING: IP65
TEMPERATURE RANGE: -10℃ ~80 ℃
APPLICATION:
Public & Commercial buildings
Outdoor installations.
Used as mechanical protection for insulated electrical cables and wires that are functional in normal atmospheric temperature
Under floor applications for computer/floor boxes
Used for connecting machines to controls
Elevators, Metro Stations, CCTV Camera etc.
Most suitable for tight-spot installation and in places where certain water tightness is required
PRODUCTS FEATURES:
High mechanical strength
Low smoke density
Black / Grey PVC Also available in LFHSUV resistant
National standard thickness of production, having super soft and excellent bending performance.
Internal smooth structure is very easy for the entry of wire and cable.
| CAT # | Trade Size | Inside Diameter | Outside Diameter | Bending | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | Radius | m/Roll | ||
| JSH-025 | 1/4" | 9.70 | 10.40 | 14.40 | 14.70 | 45 | 100 |
| JSH-038 | 3/8" | 12.30 | 12.80 | 16.70 | 17.20 | 50 | 100 |
| JSH-050 | 1/2" | 15.80 | 16.30 | 20.20 | 20.70 | 65 | 50 |
| JSH-075 | 3/4" | 20.70 | 21.20 | 25.50 | 26.10 | 75 | 50 |
| JSH-100 | 1" | 26.00 | 26.60 | 31.60 | 32.20 | 100 | 50 |
| JSH-125 | 1-1/4" | 34.70 | 35.40 | 40.80 | 41.50 | 125 | 25 |
| JSH-150 | 1-1/2" | 40.00 | 40.60 | 46.60 | 47.20 | 150 | 25 |
| JSH-200 | 2" | 51.30 | 51.90 | 58.10 | 58.70 | 175 | 25 |
| JSH-250 | 2-1/2" | 63.00 | 63.60 | 71.80 | 72.40 | 200 | 10 |
| JSH-300 | 3" | 78.00 | 78.70 | 87.20 | 87.90 | 225 | 10 |
| JSH-400 | 4" | 101.60 | 102.60 | 111.20 | 112.30 | 275 | 10 |
| JSH-500 | 5" | 125.00 | 127.00 | 137.00 | 139.50 | 300 | 5 |
| JSH-600 | 6" | 150.00 | 153.00 | 162.00 | 165.00 | 400 | 5 |
| Notes:Length of roll can be made according to customers' requirements. | |||||||
| Black Color or Gray Color is available. | |||||||
PACKING INFORMATION:
For internal packing, flexible conduits are packed in rolls.
For external packing, use good quality corrugated carton.
