Steel EMT Connector Compression Insulated Type
Material : Steel
Surface Finish : Electro-galvanized
Type : Compression type

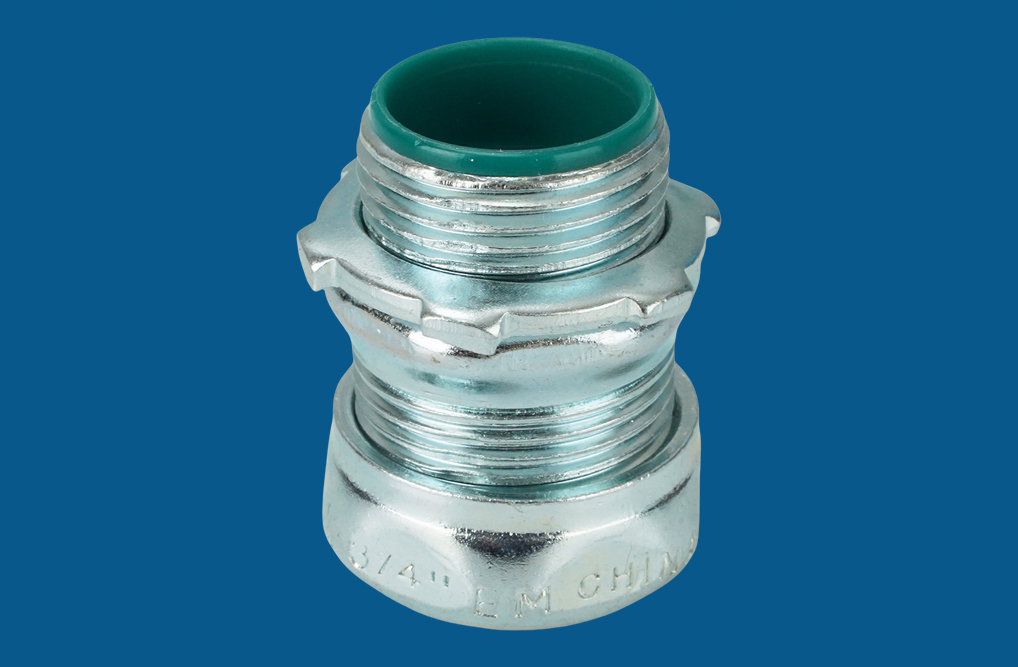

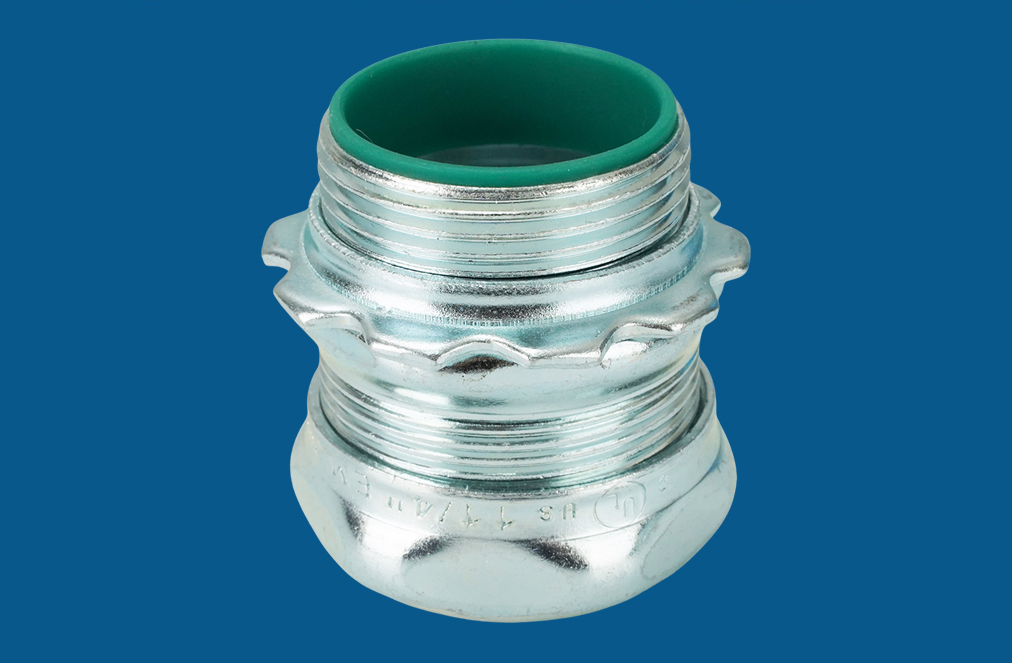

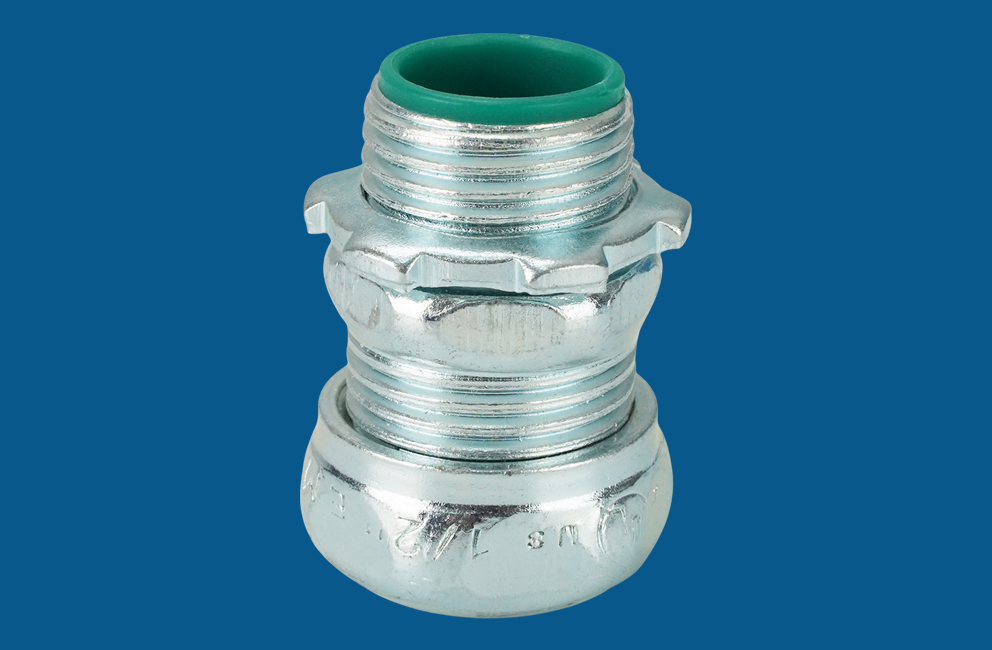

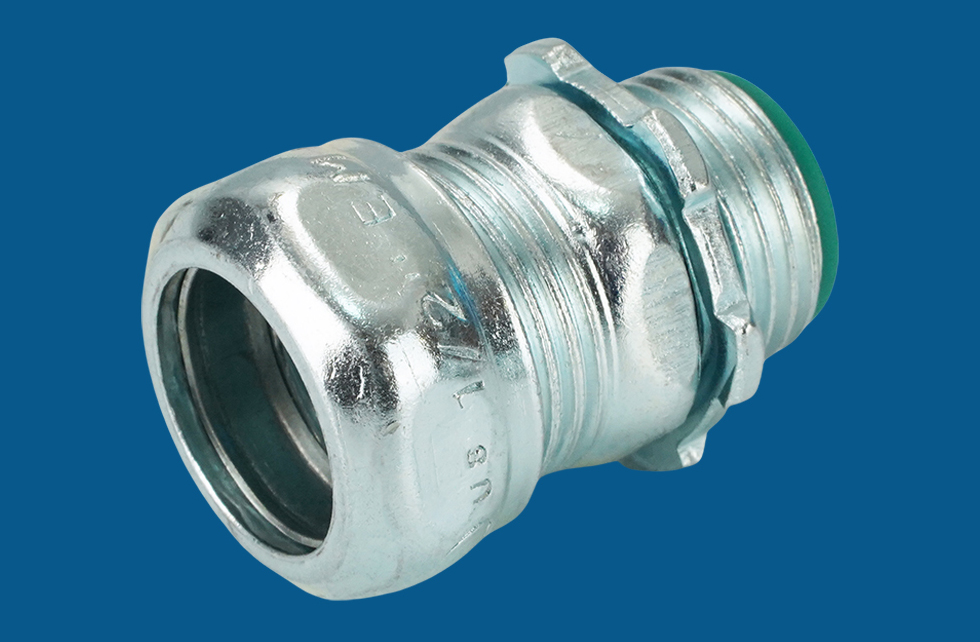

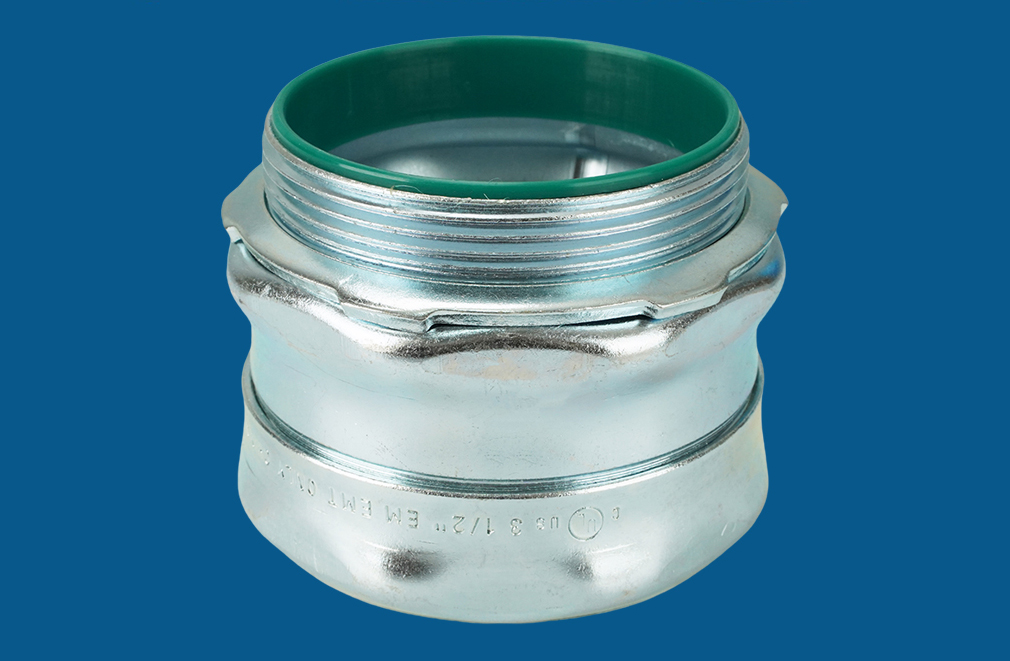

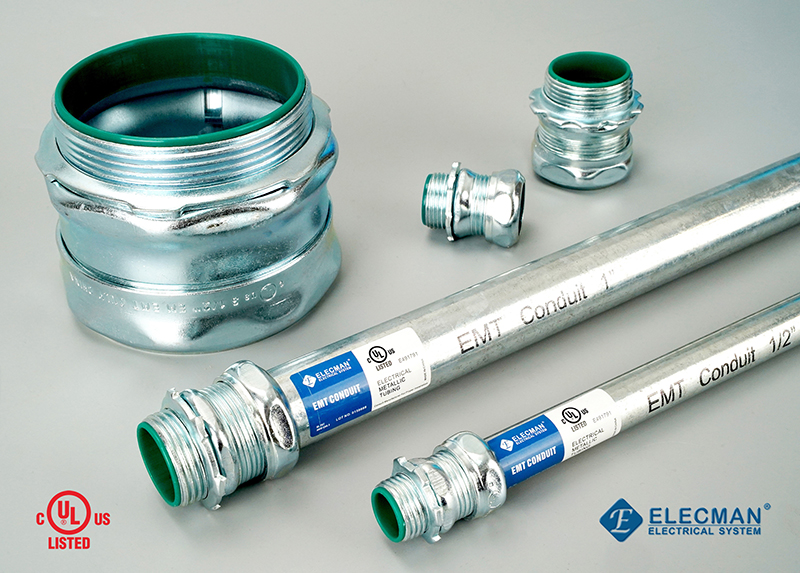

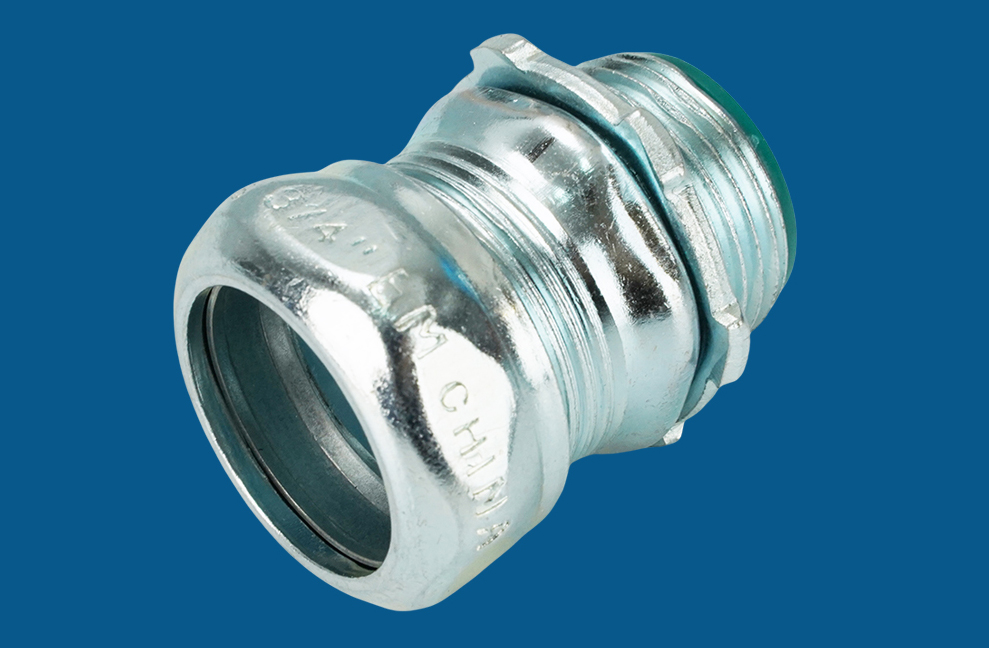

ELECMAN® Steel EMT Connector Compression Insulated Type
PRODUCT: EMT connector
MATERIAL: Steel
TYPE: Compression type
APPLICATION:
For use in dry locations to economically bond EMT conduit to a box or enclosure
FEATURES:
·All steel construction insures mechanical protection for the raceway
·Provide concrete-tight connections when taped
·Male hub treads NPS
·All components are zinc electro-plated for corrosion protection.
·Insulated type .
COMPLIANCE:
UL certification
File No.: E513114
| CATALOG NUMBER | TRADE SIZE | INNER PACK | MASTER PACK | WEIGHT PER C |
| ISCCN050 | 1/2" | 50 | 500 | 26.25 |
| ISCCN075 | 3/4" | 25 | 250 | 17.25 |
| ISCCN100 | 1" | 50 | 200 | 20.45 |
| ISCCN125 | 1-1/4" | 25 | 100 | 16.95 |
| ISCCN150 | 1-1/2" | 10 | 40 | 8.25 |
| ISCCN200 | 2" | 5 | 20 | 5.45 |
| ISCCN250 | 2-1/2" | 12 | 8.47 | |
| ISCCN300 | 3" | 12 | 10.75 | |
| ISCCN325 | 3-1/2" | 6 | 6.05 | |
| ISCCN400 | 4" | 6 | 7.05 |
PACKING INFORMATION
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
Other names: Insulated EMT connector compression type, insulated EMT connector, EMT connector insulated type.
E513114 Steel EMT Connectors and Couplings UL Certificate.pdf
ELECMAN® EMT Connector Data Sheet - ISCCN.pdf
