BS4568/EN 61386 Class 4 Conduit
Material : Steel
Surface Finish : Hot dipped galvanized
Type : Class 4

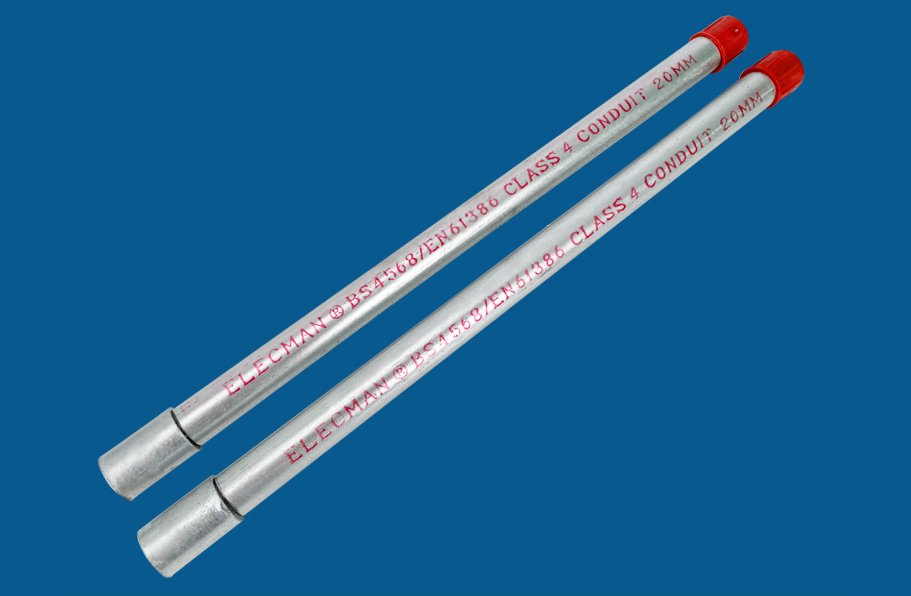

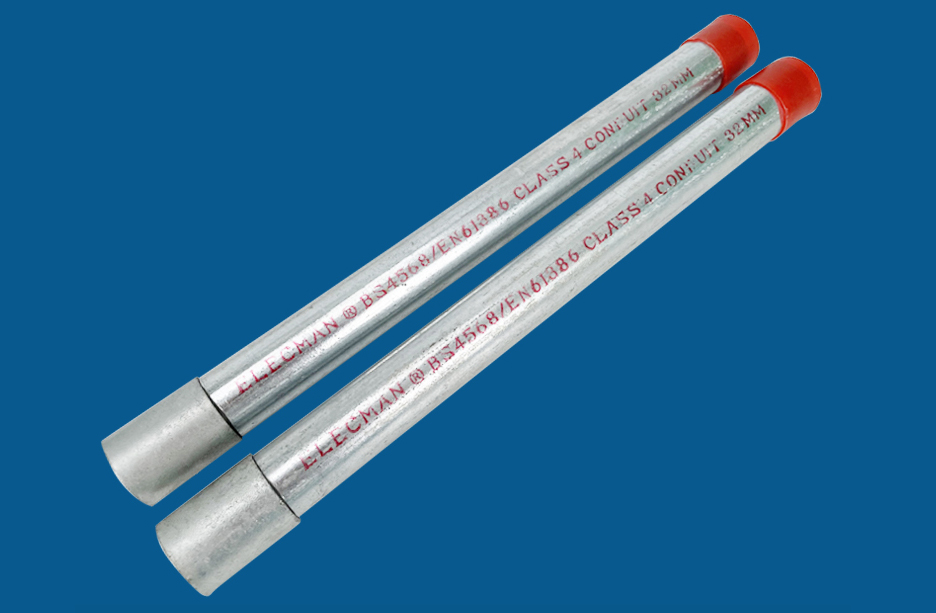

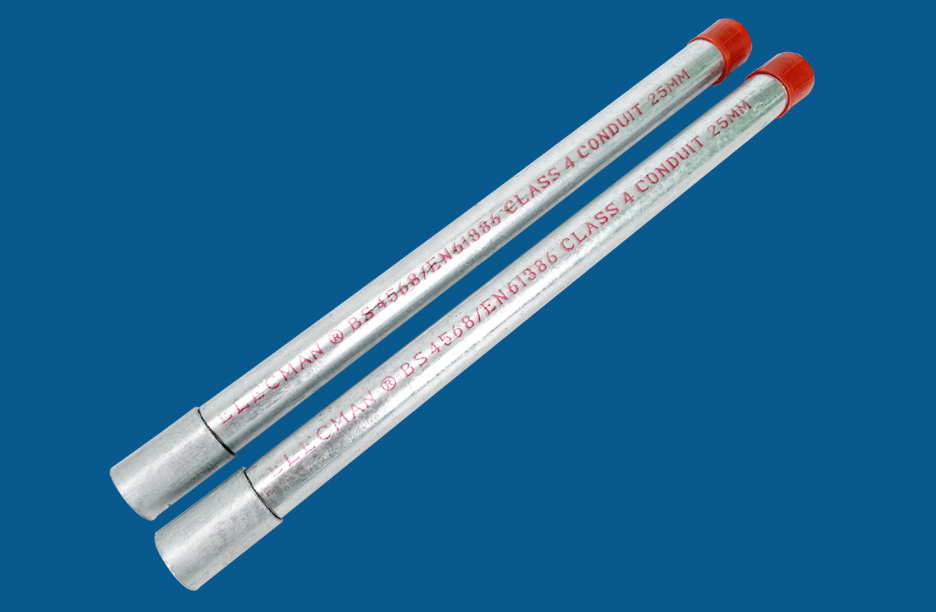

ELECMAN® BS4568/EN 61386 class 4 conduit
ELECMAN® BS4568/EN 61386 class 4 conduit is usually used in industrial, commercial, and residential buildings to be installed indoors and outdoors to protect wires and cables.
| Cat.# | Nominal Size | Outside Diameter (mm) | Wall thickness (mm) | Length (m) | Thread length (mm) | ||
| Minimum | Maximum | Minimum | Maximum | ||||
| BS4401 | 20 | 19.70 | 20.00 | 1.6 ± 0.15 | 3.75 | 13.0 | 15.0 |
| BS4402 | 25 | 24.60 | 25.00 | 1.6 ± 0.15 | 3.75 | 16.0 | 18.0 |
| BS4403 | 32 | 31.60 | 32.00 | 1.6 ± 0.15 | 3.75 | 18.0 | 20.0 |
| BS4404 | 40 | 39.50 | 40.00 | 1.6 ± 0.15 | 3.75 | 19.0 | 20.0 |
| BS4405 | 50 | 49.50 | 50.00 | 1.6 ± 0.15 | 3.75 | 19.0 | 20.0 |
·Hot dipped galvanized inside and out to class4
·Surface treatment is smooth, have good resistant to corrosion
·Threaded at both ends

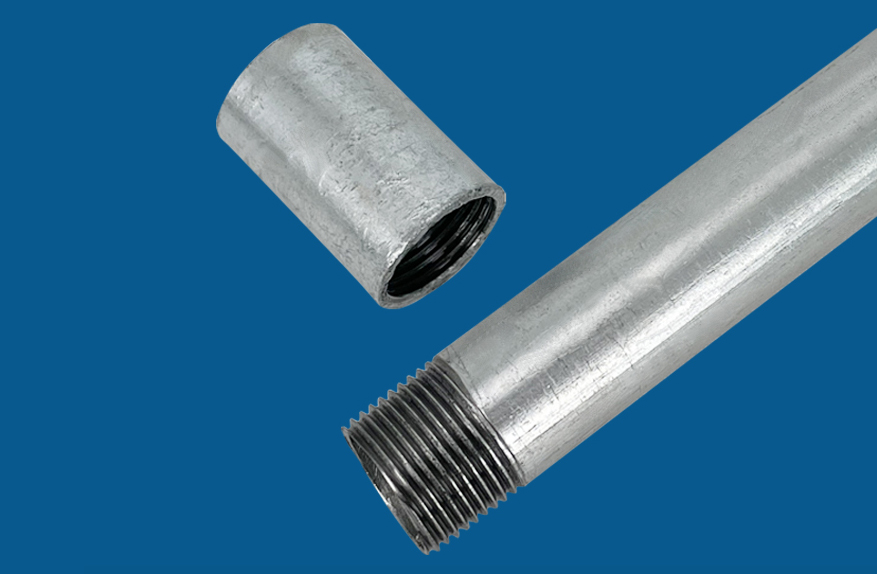

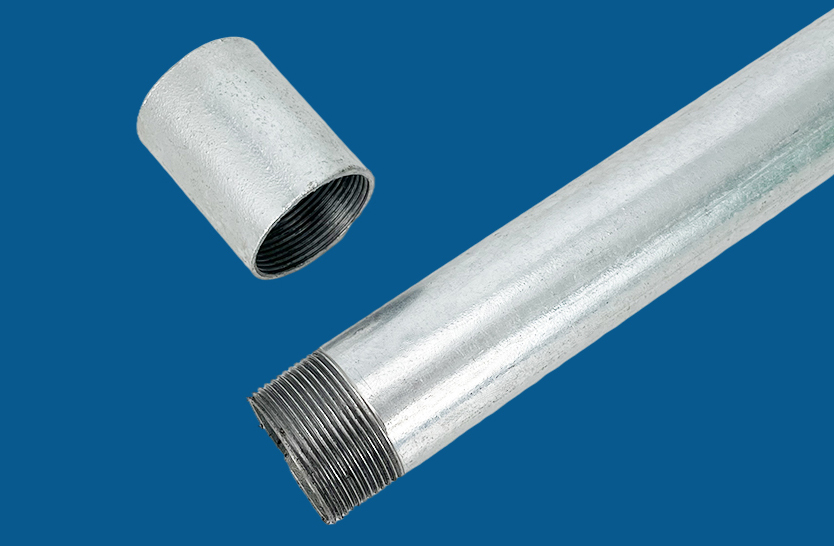

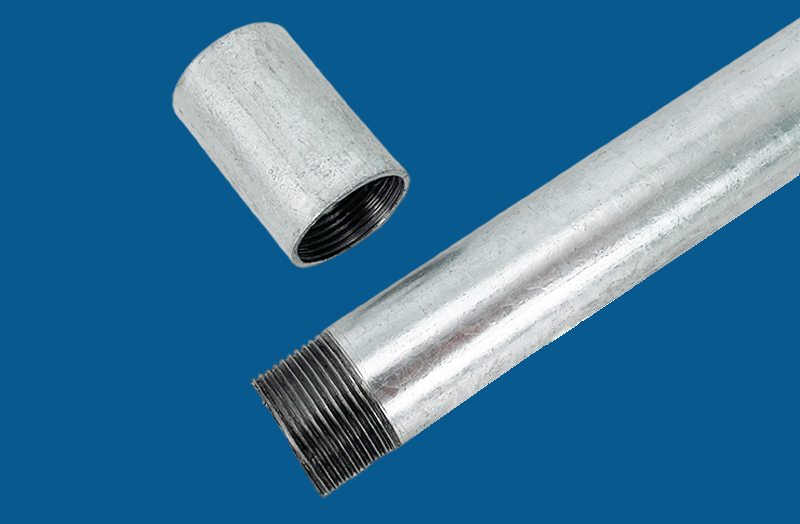

·Each length supplied with one coupler and one plastic thread protector cap
·Available in 20mm to 50mm diameter and 3.75m length
·Manufactured in accordance with BS4568
