BS31:1970 Conduit (Class 3 & Class 4)
Material : Steel
Surface Finish : Pre-galvanized & Hot dipped galvanized
Type : Class3 & Class4

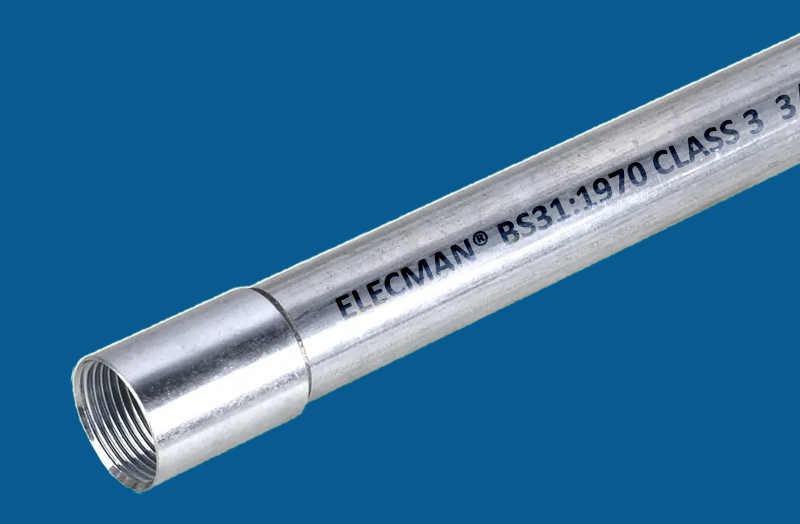

ELECMAN® BS31 class 3 & class 4 conduit
ELECMAN® BS31 conduit is widely used in electrical systems in various buildings to protect cables and wires
| Cat.# | Nominal Size | Outside Diameter (mm) | Wall thickness (mm) | Length (m) | Thread length (mm) | ||
| Minimum | Maximum | Minimum | Maximum | ||||
| BS3101 | 3/4" | 18.90 | 19.05 | 1.65 ± 0.15 | 3.81 | 13.5 | 14.3 |
| BS3102 | 1" | 25.25 | 25.40 | 1.65 ± 0.15 | 3.81 | 16.7 | 17.5 |
| BS3103 | 1-1/4" | 31.60 | 31.75 | 1.65 ± 0.15 | 3.81 | 18.3 | 19.1 |
| BS3104 | 1-1/2" | 37.80 | 38.00 | 1.85 ± 0.15 | 3.81 | 19.1 | 20.6 |
| BS3105 | 2" | 50.50 | 50.80 | 2.05 ± 0.15 | 3.81 | 19.1 | 20.6 |
·Pre galvanized(Class 3)and hot dipped galvanized(Class 4) are both available.
·Threaded at both ends.
·Each length supplied with one coupler and one plastic thread protector cap.
·Available in 3/4"mm to 2"mm diameter and 3.81m length.
·Manufactured in accordance with BS31.
