Steel EMT Coupling Set Screw Type
Material : Steel
Surface Finish : Zinc plated
Type : Set screw type

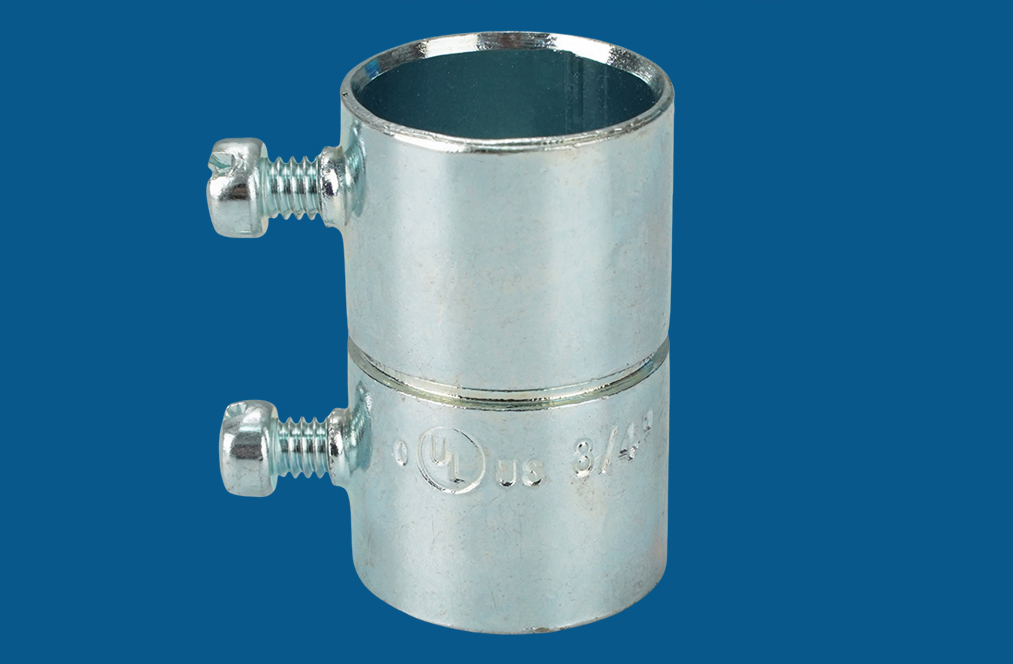

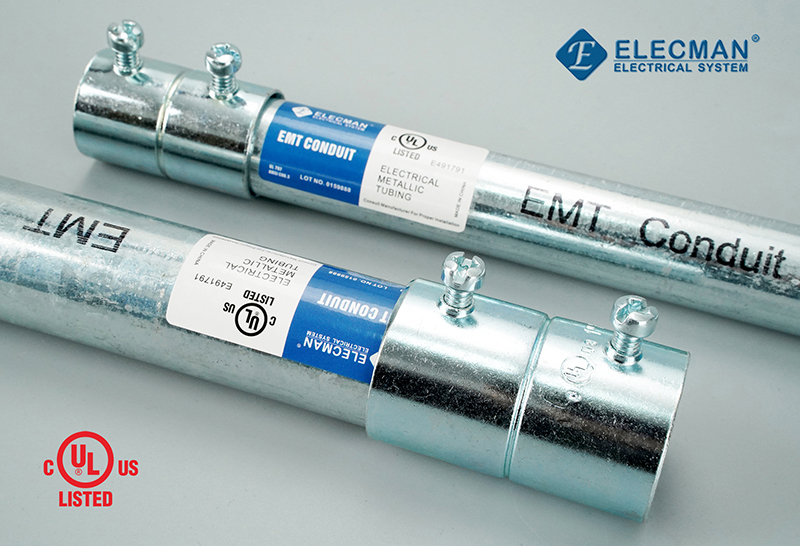

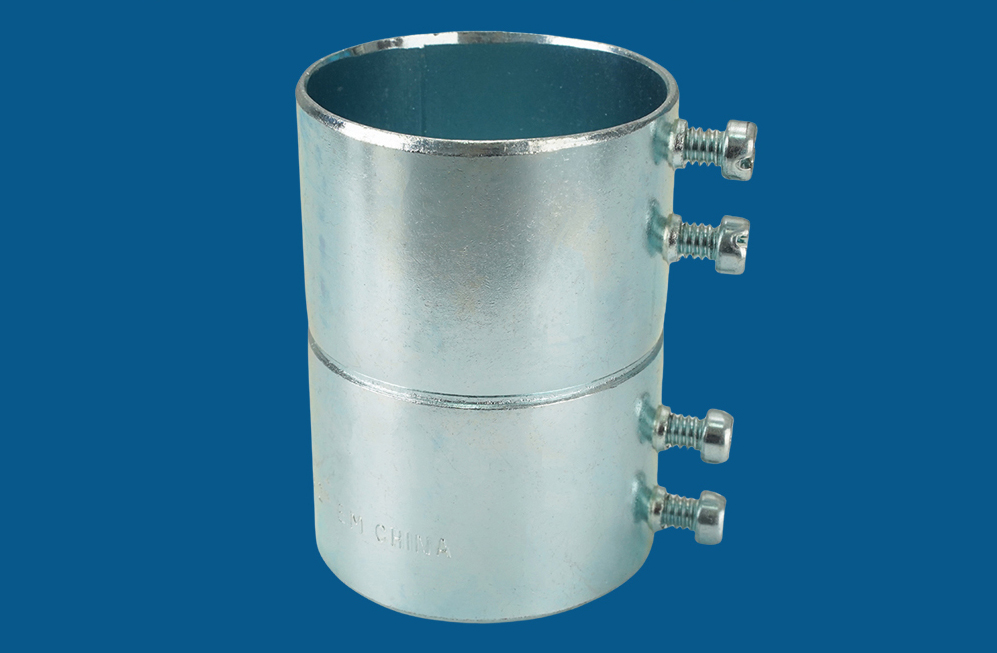

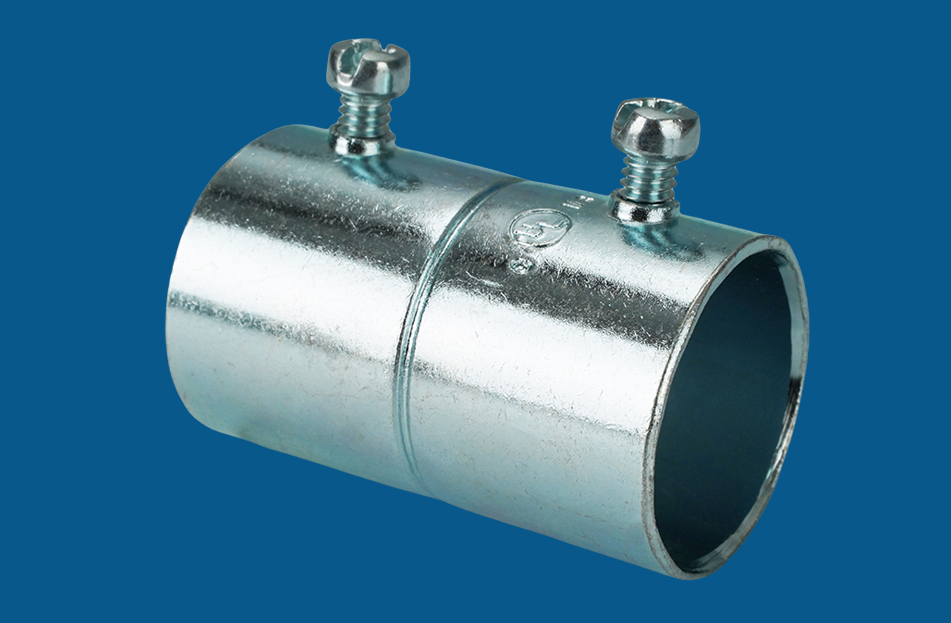

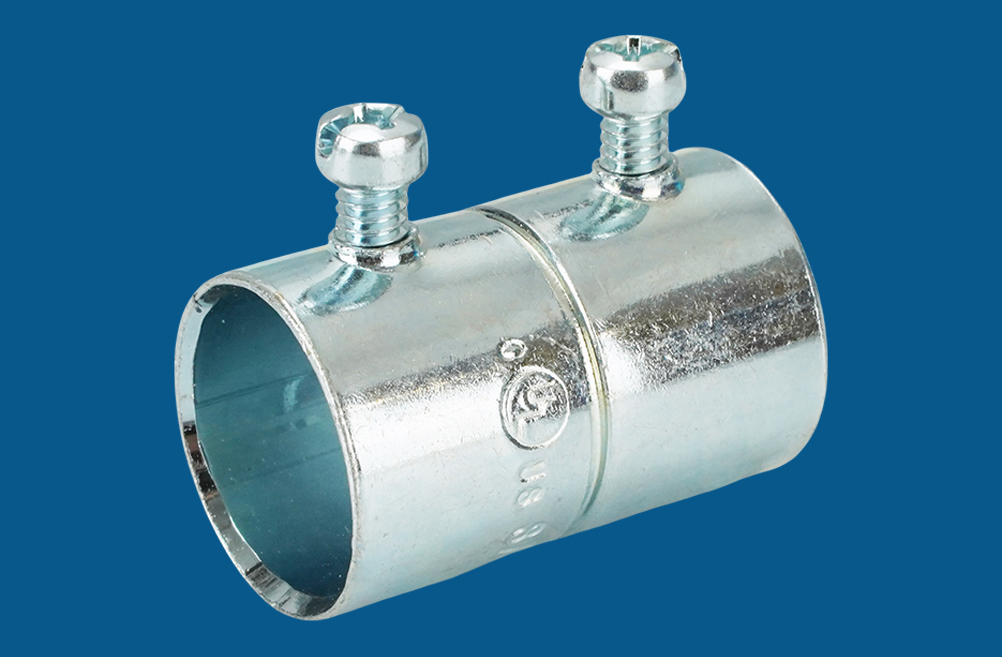

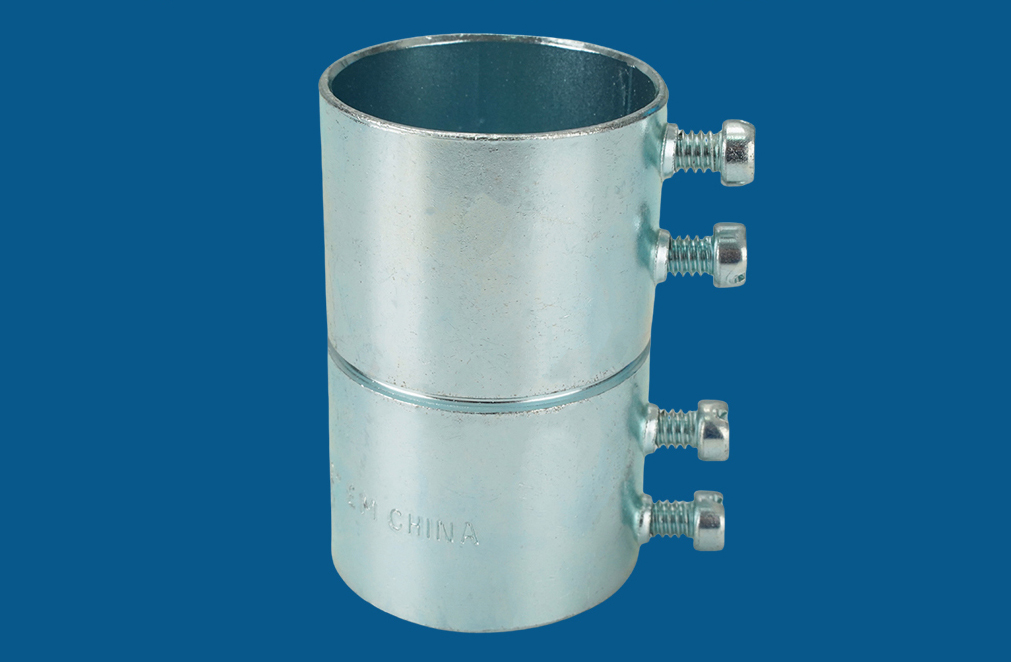

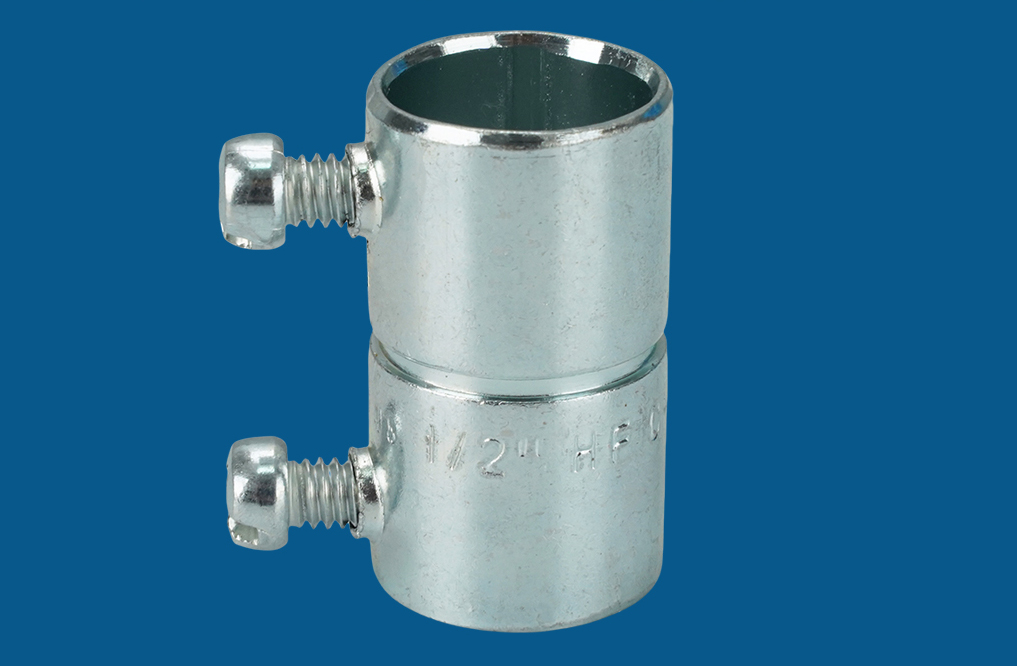

ELECMAN® Steel EMT Coupling Set Screw Type
PRODUCT: EMT coupling
MATERIAL: Steel
TYPE: Set screw type
APPLICATION:
For use in dry locations to couple two ends of EMT conduit
FEATURES:
·All steel construction insures mechanical protection for the raceway
·Provide concrete-tight connections when taped
·All components are zinc electro-plated for corrosion protection.
CERTIFICATION AND COMPLIANCE:
UL listed
File No.: E513114
| CATALOG NUMBER | TRADE SIZE | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCOP050 | 1/2" | 50 | 500 | 16.55 |
| SCOP075 | 3/4" | 25 | 250 | 11.89 |
| SCOP100 | 1" | 50 | 200 | 17.21 |
| SCOP125 | 1-1/4" | 25 | 100 | 16.79 |
| SCOP150 | 1-1/2" | 10 | 100 | 19.08 |
| SCOP200 | 2" | 5 | 50 | 13.01 |
| SCOP250 | 2-1/2" | 12 | 7.40 | |
| SCOP300 | 3" | 12 | 9.56 | |
| SCOP325 | 3-1/2" | 6 | 5.80 | |
| SCOP400 | 4" | 6 | 6.45 |
PACKING INFORMATION：
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
Other name: Unión EMT Acero,Union Conduit UL Acerado,UNION CONDUIT EMT DE ACERO,COPLE AMERICANO DE DE ACERO, COPLE EMT, UNION EMT, EMT coupling. Steel EMT coupling.
E513114 Steel EMT Connectors and Couplings UL Certificate.pdf
ELECMAN® EMT Coupling Data Sheet - SCOP.pdf
