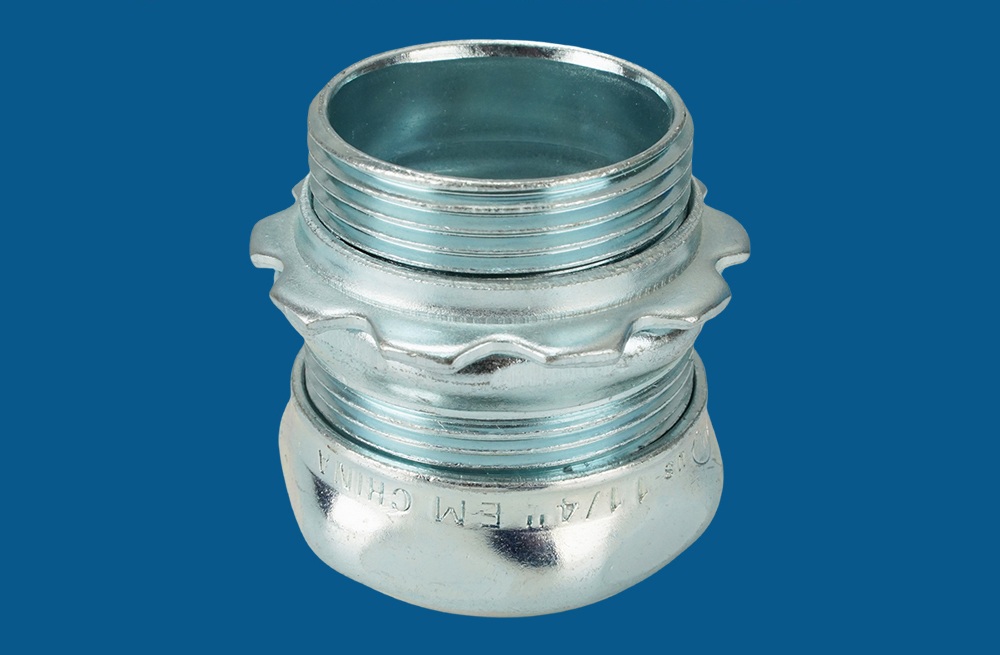

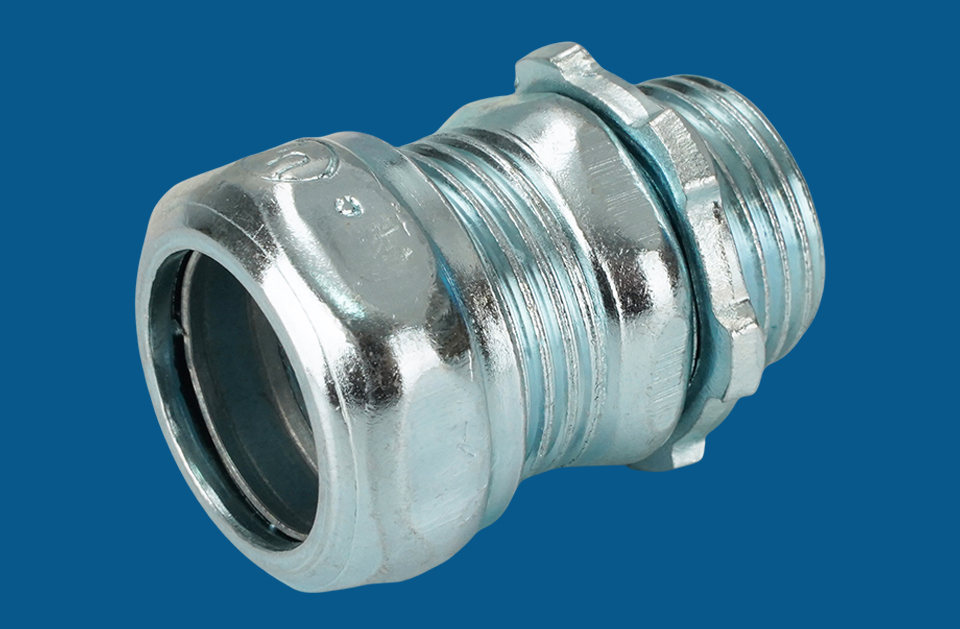

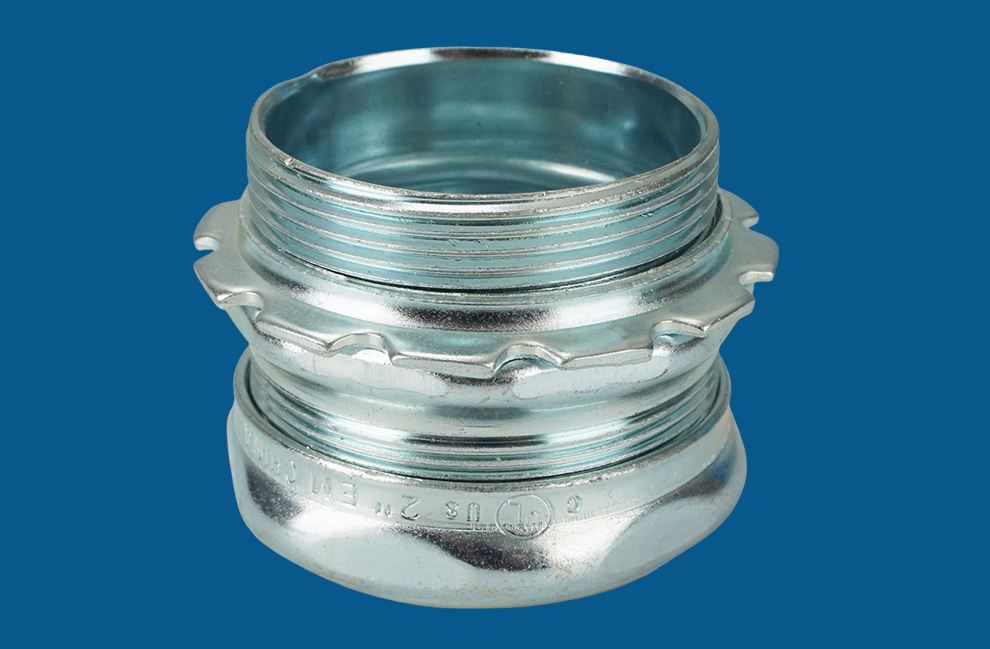

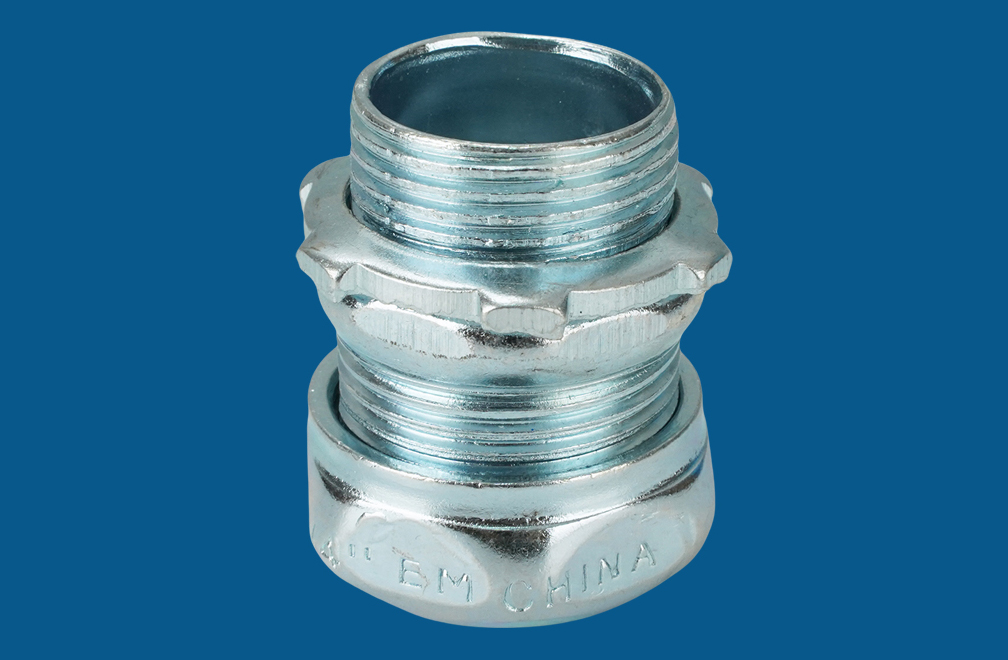

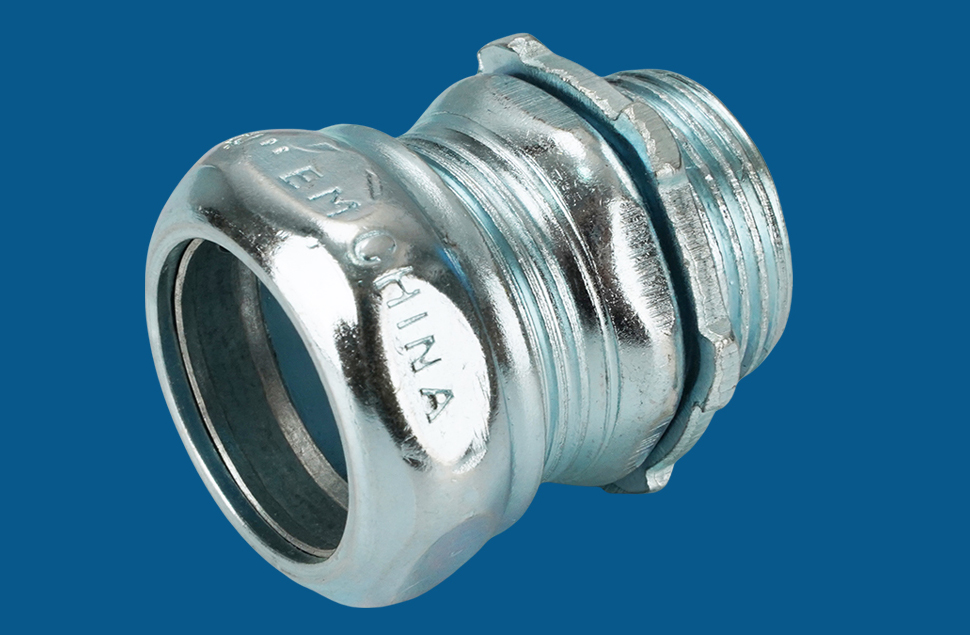

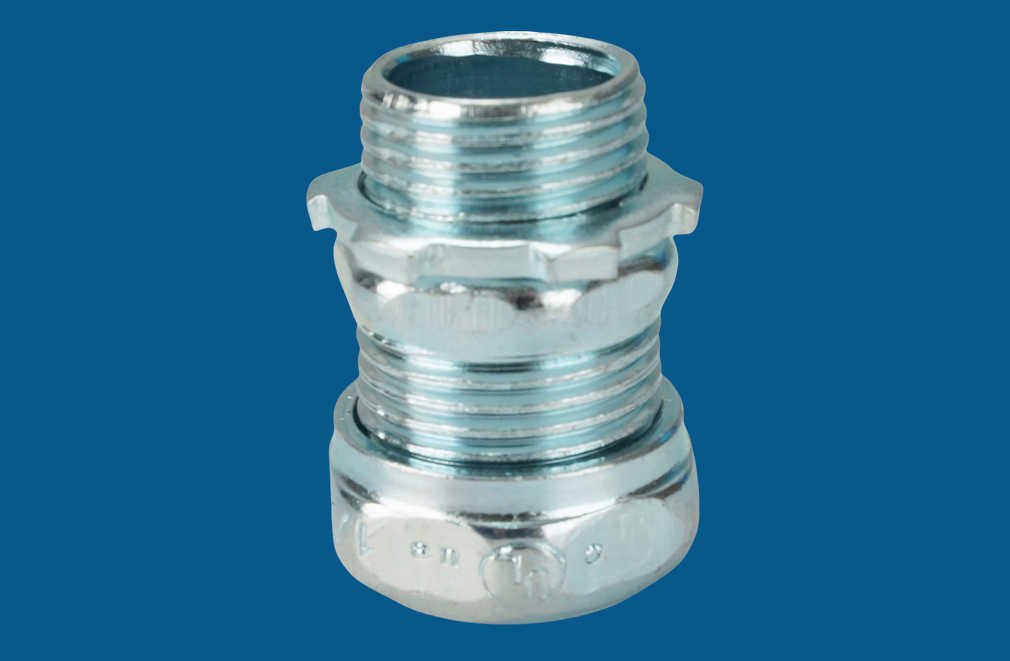

Steel EMT Connector Compression Type
Material : Steel
Surface Finish : Zinc plated
Type : Compression type

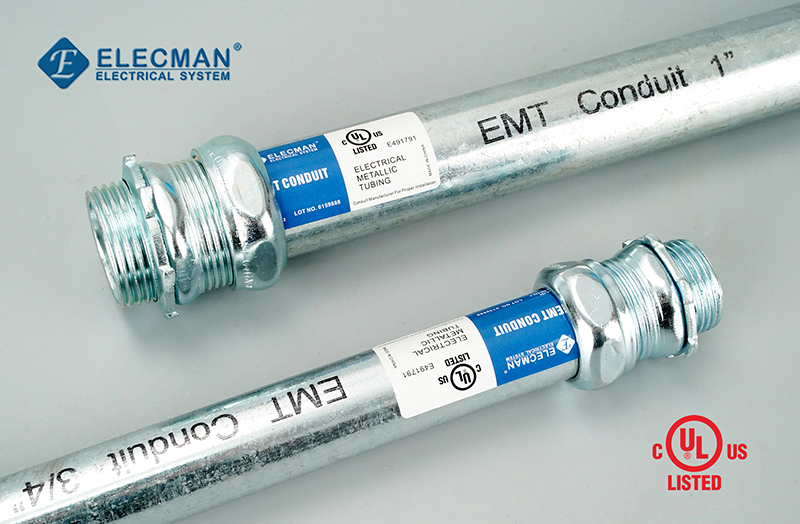

ELECMAN® Steel EMT Connector Compression Type
PRODUCT: EMT connector
MATERIAL: Steel
TYPE: Compression type
APPLICATION:
For use in dry locations to economically bond EMT conduit to a box or enclosure
FEATURES:
·All steel construction insures mechanical protection for the raceway
·Provide concrete-tight connections when taped
·Male hub treads NPS
·All components are zinc electro-plated for corrosion protection.
·Insulated type are available.
CERTIFICATION AND COMPLIANCE:
UL listed
File No.: E513114
| CATALOG NUMBER | TRADE SIZE | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCCN050 | 1/2" | 50 | 500 | 26.20 |
| SCCN075 | 3/4" | 25 | 250 | 17.20 |
| SCCN100 | 1" | 50 | 200 | 20.40 |
| SCCN125 | 1-1/4" | 25 | 100 | 16.90 |
| SCCN150 | 1-1/2" | 10 | 40 | 8.20 |
| SCCN200 | 2" | 5 | 20 | 5.40 |
| SCCN250 | 2-1/2" | 12 | 8.42 | |
| SCCN300 | 3" | 12 | 10.70 | |
| SCCN325 | 3-1/2" | 6 | 6.00 | |
| SCCN400 | 4" | 6 | 7.00 |
PACKING INFORMATION
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
Other names: Conector EMT tipo Compresión Acero,Acero conectores de compresión con aislamiento garganta,CONECTOR DE COMPRESIÓN PARA TUBO EMT,EMT Compression Connector,Steel Compression Connector EMT,Compression EMT Connector
ELECMAN® EMT Connector Data Sheet - SCCN.pdf
E513114 Steel EMT Connectors and Couplings UL Certificate.pdf
