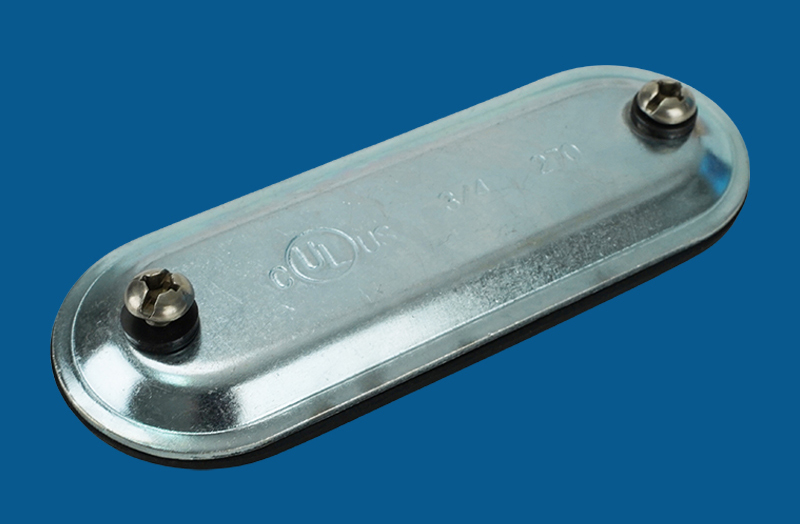

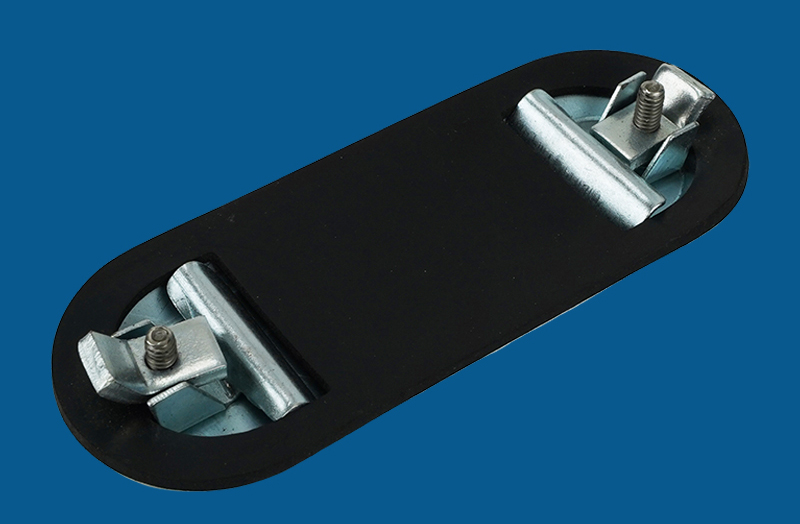

Steel Form 7 Conduit Body Cover and Gasket
Material : Steel & stainless steel & neoprene rubber
Surface Finish : Zinc plated,Aluminum enameled,Hot dip galvanized
Type : Form 7
ELECMAN® Steel Form 7 Conduit Body Cover and Gasket
MATERIAL: Steel & stainless steel & neoprene rubber
APPLICABLE THIRD PARTY STANDARDS:
• UL Standard 514A
• Fed.Spec. W-C-586D
• NEMA:FB-1
APPLICATION:
Steel form 7 conduit body cover and gasket are used with form 7 series conduit bodies.
| CATALOG NUMBER | TRADE SIZE |
| SCG1 | 1/2" |
| SCG2 | 3/4" |
| SCG3 | 1" |
| SCG4 | 1-1/4" |
| SCG5 | 1-1/2" |
| SCG6 | 2" |
| SCG7 | 2-1/2" - 3" |
| SCG8 | 3-1/2" - 4" |
PACKING INFORMATION:
External packing: Corrugated carton
