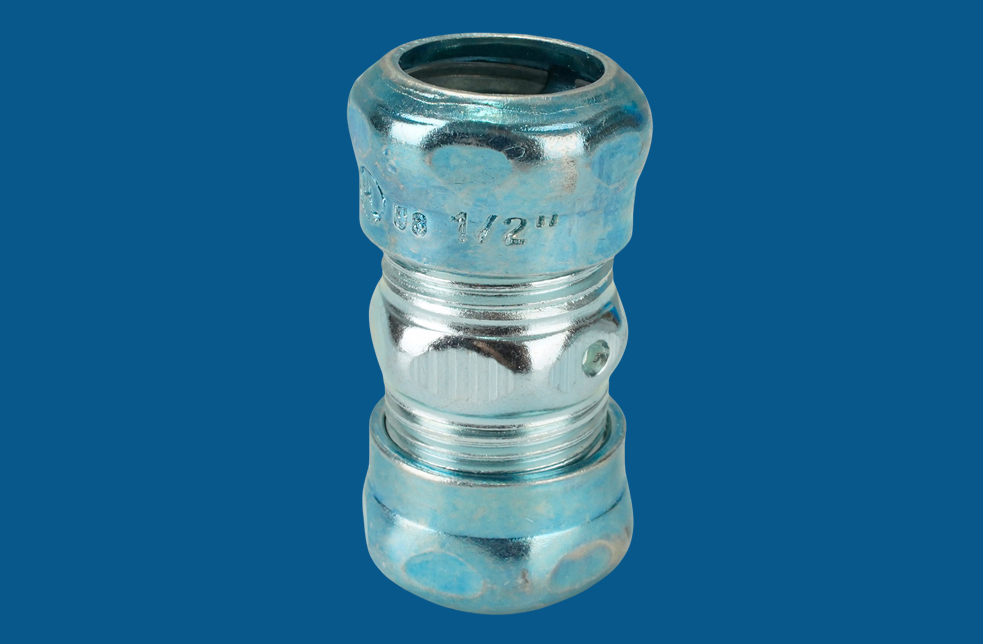

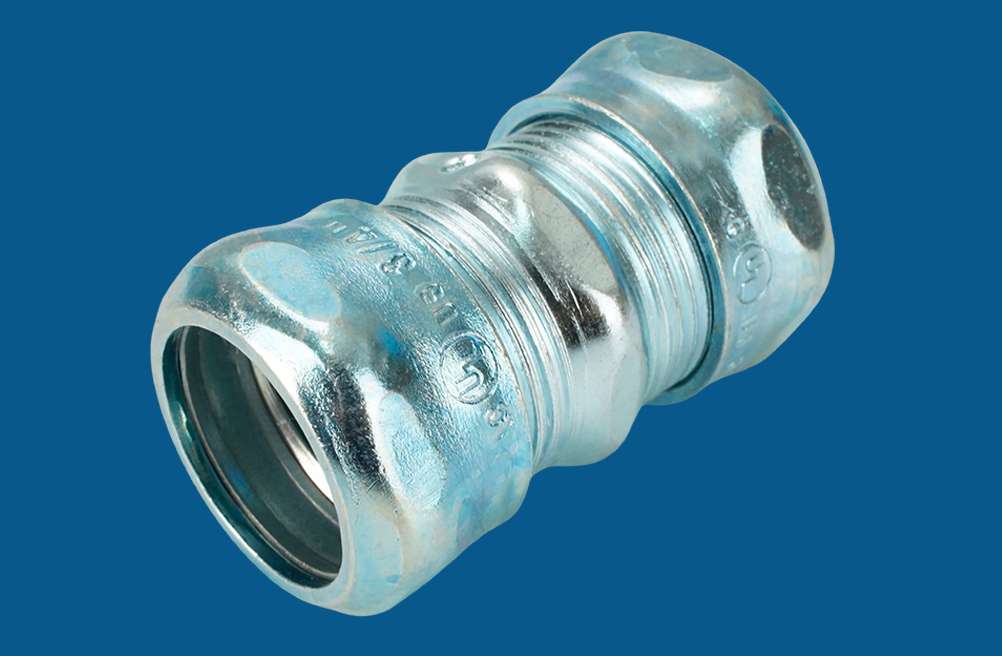

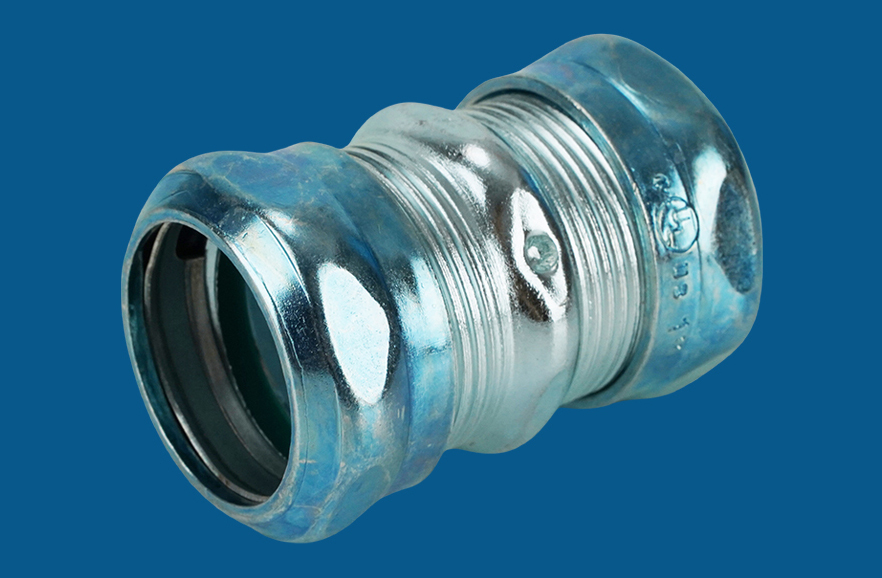

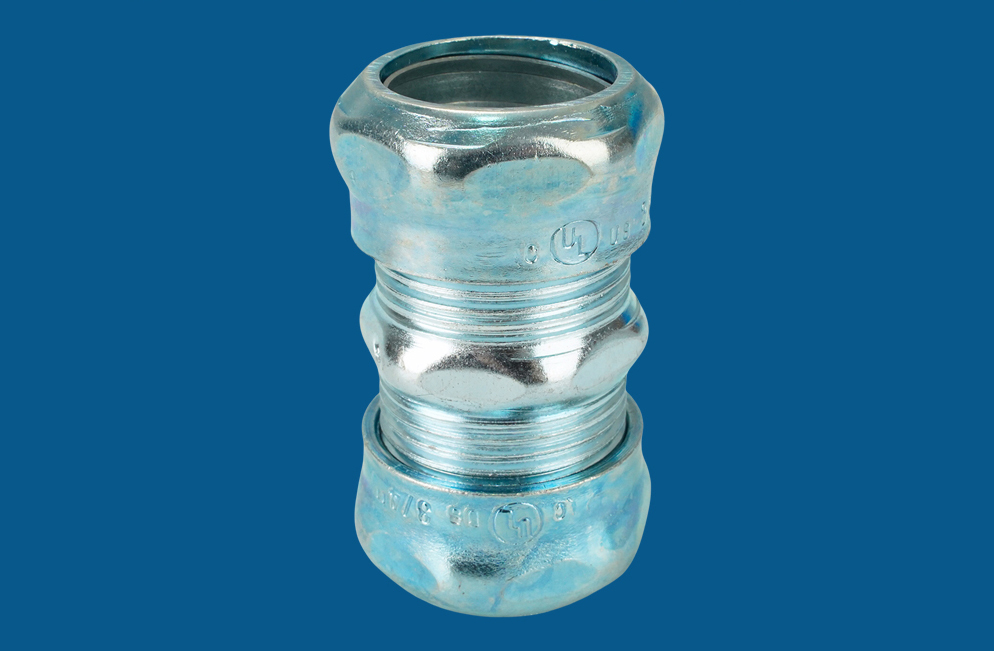

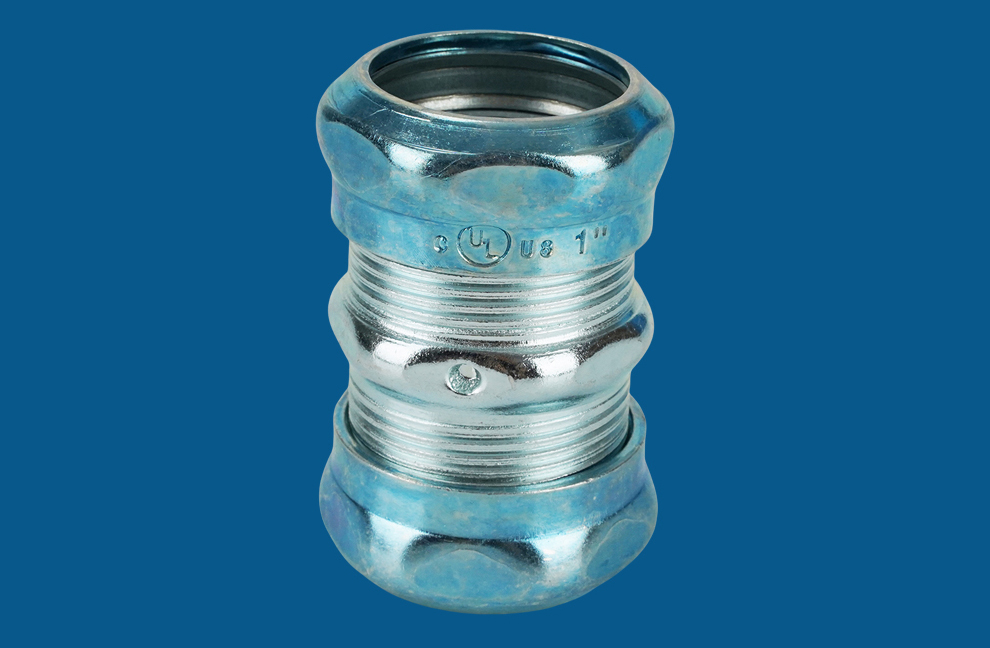

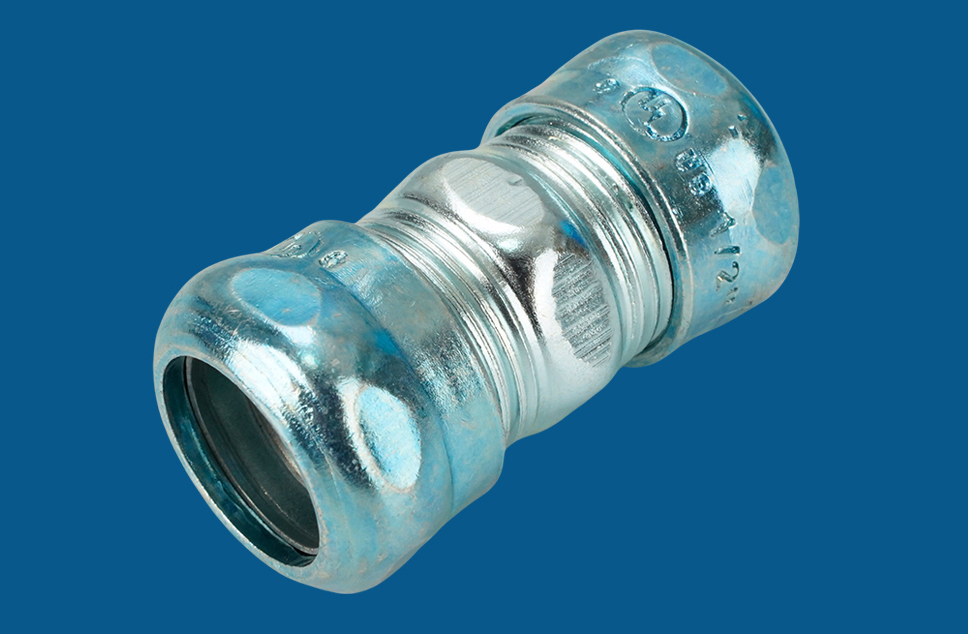

Steel Raintight EMT Conduit Coupling Compression Type
Material : Steel / Neoprene Rubber / Nylon Compression Ring
Surface Finish : Zinc electroplated
Type : Raintight
ELECMAN® Steel Raintight EMT Conduit Coupling Compression EMT Conduit To EMT Conduit Type
Applications:
ELECMAN® Steel raintight EMT conduit coupling compression EMT conduit to EMT conduit type are used to join two lengths of EMT conduits in wet or dry location.
Features:
Blue nut eases identification.
Suitable for use outdoor.
Raintight – Wet locations.
All components are zinc electro-plated for corrosion protection.
Provide concrete-tight connections when taped.
All steel construction insures mechanical protection for the raceway.
Highly corrosion resistant.
Certifications and Compliances:
ELECMAN® Steel raintight EMT conduit coupling compression EMT conduit to EMT conduit type shall be produced to the following specification:
UL Listed
File No.: E513114
Specification Data:

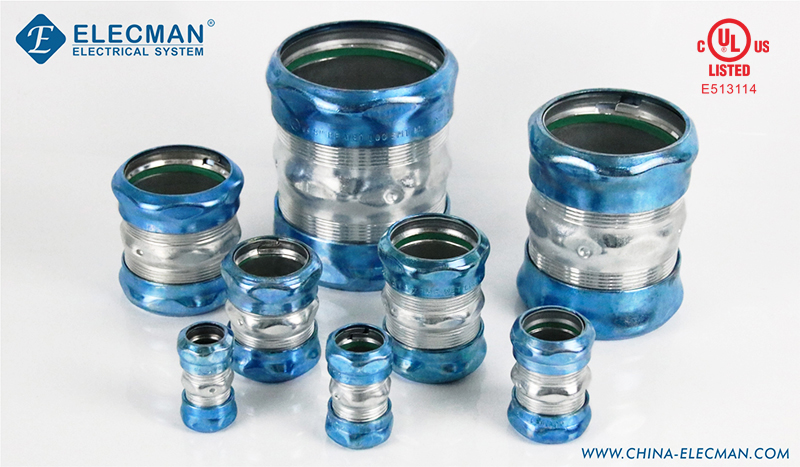

ELECMAN provides full size steel raintight EMT conduit coupling compression EMT conduit to EMT conduit type from 1/2" to 4".
CAT # | Trade Size |
RTOP050 | 1/2" |
RTOP075 | 3/4" |
RTOP100 | 1" |
RTOP125 | 1-1/4" |
RTOP150 | 1-1/2" |
RTOP200 | 2" |
RTOP250 | 2-1/2" |
RTOP300 | 3" |
RTOP350 | 3-1/2" |
RTOP400 | 4" |
Packing Information:
From 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
E513114 Steel EMT Connectors and Couplings UL Certificate.pdf
ELECMAN® EMT Coupling Data Sheet - RTOP.pdf
