Three Holes Splice Plate
Material : Carbon steel,Alloy steel,Stainless steel
Surface Finish : Plain, Black, Zinc plated, Hot dip galvanised
Type : Three holes

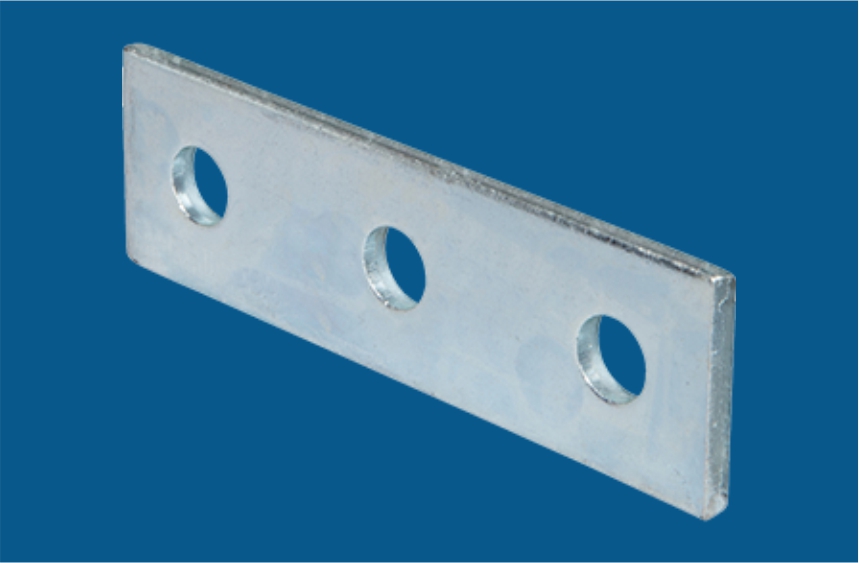

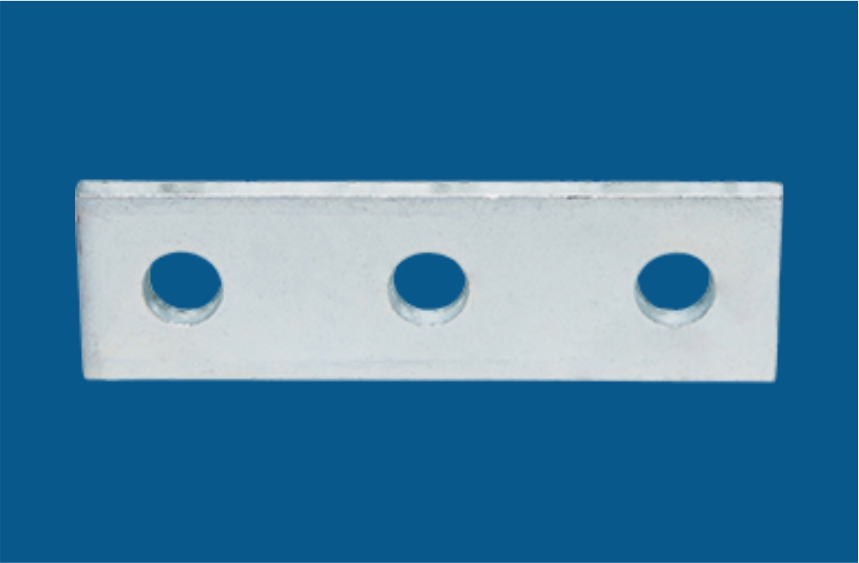

ELECMAN STRUT® Three Holes Splice Plate
MATERIAL: Carbon steel,Alloy steel,Stainless steel
FINISH: Plain, Black, Zinc plated, Hot dip galvanised
APPLICATION:

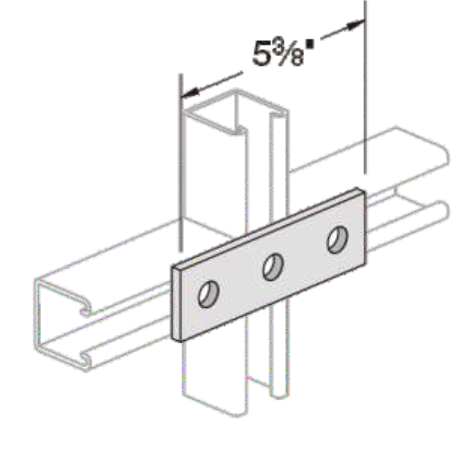

ELECMAN ® Galvanized steel flat three holes splice plate is used to secures two pieces of strut channel together. Steel strut channel when fastened together forms a high strength cable management channel support system. Economical, reliable and easy to assemble.
FEATURES:
Wide range of size options are available for square washers with different inside diameter, shoulder thickness and lengths.
For hanging threaded rod from metal framing channel.
Galvanized finish for durability.
SPECIFICATION DATA:
ELECMAN provides full size galvanized steel flat three holes splice plate 3-1/2" * 1-5/8".
| Cat.# | Length | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6003 | 5-3/8" | 1-5/8" | 1/4" | 9/16" | 13/16" | 1-7/8" |
