Three Holes Swivel Plate
Material : Carbon steel,Alloy steel,Stainless steel
Surface Finish : Plain, Black, Zinc plated, Hot dip galvanised
Type : Three Holes

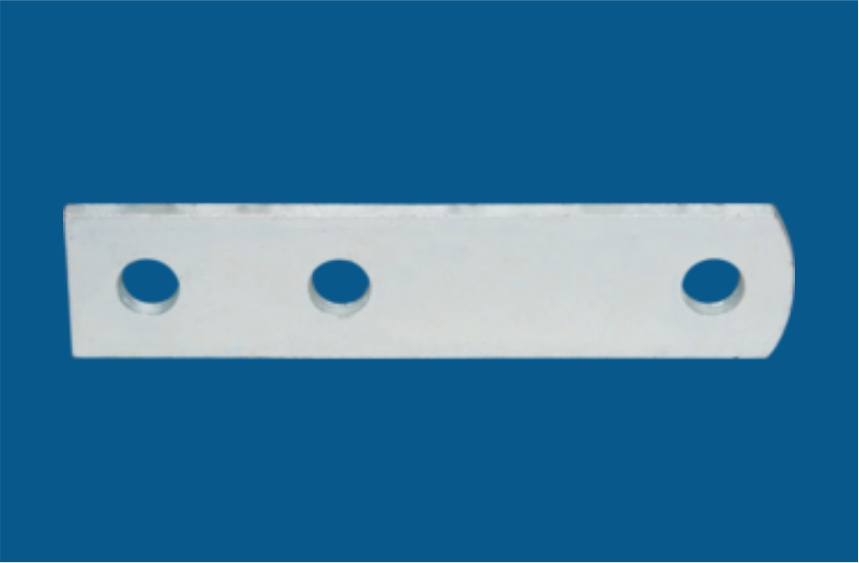

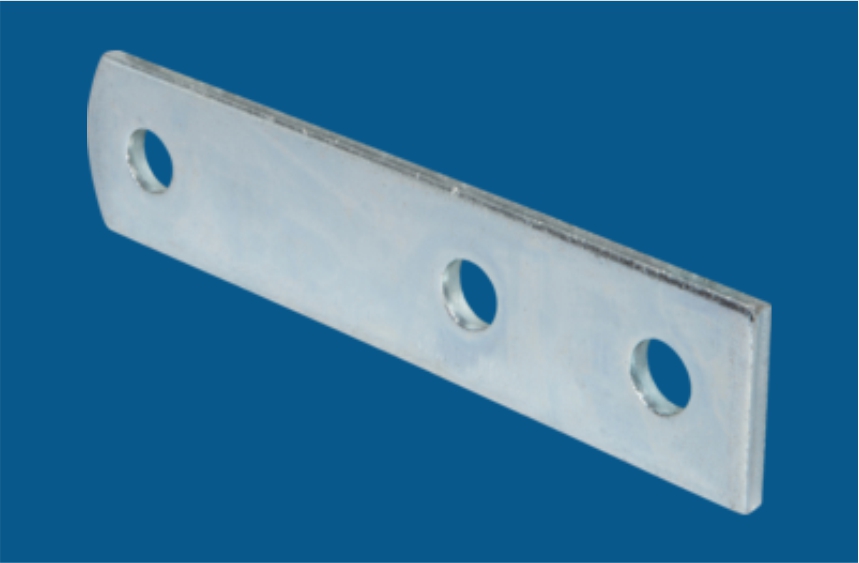

ELECMAN STRUT® Three Holes Swivel Plate
MATERIAL: Carbon steel,Alloy steel,Stainless steel
FINISH: Plain, Black, Zinc plated, Hot dip galvanised
APPLICATION:
ELECMAN ® Galvanized steel flat three holes swivel plates are used to join sections of strut channel together, creating a unique weldless connection.
FEATURES:
Wide range of size options are available for square washers with different inside diameter, shoulder thickness and lengths.
For hanging threaded rod from metal framing channel.
Galvanized finish for durability.
SPECIFICATION DATA:

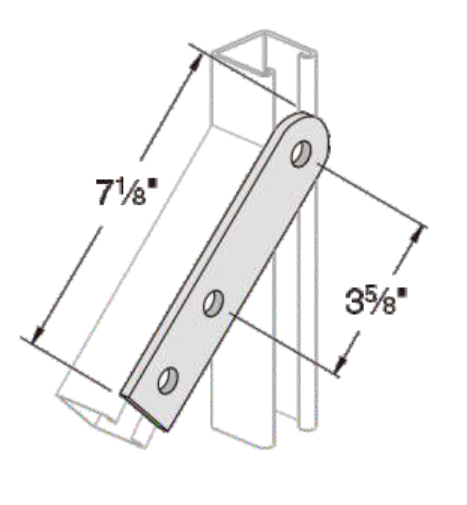

ELECMAN provides full size galvanized steel flat three holes splice plate 7-1/8" * 1-5/8".
| Cat.# | Length | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6005 | 7-1/8" | 1-5/8" | 1/4" | 9/16" | 13/16" | 1-7/8" |
