Four Holes Splice Plate
Material : Carbon steel,Alloy steel,Stainless steel
Surface Finish : Plain, Black, Zinc plated, Hot dip galvanised
Type : Four holes

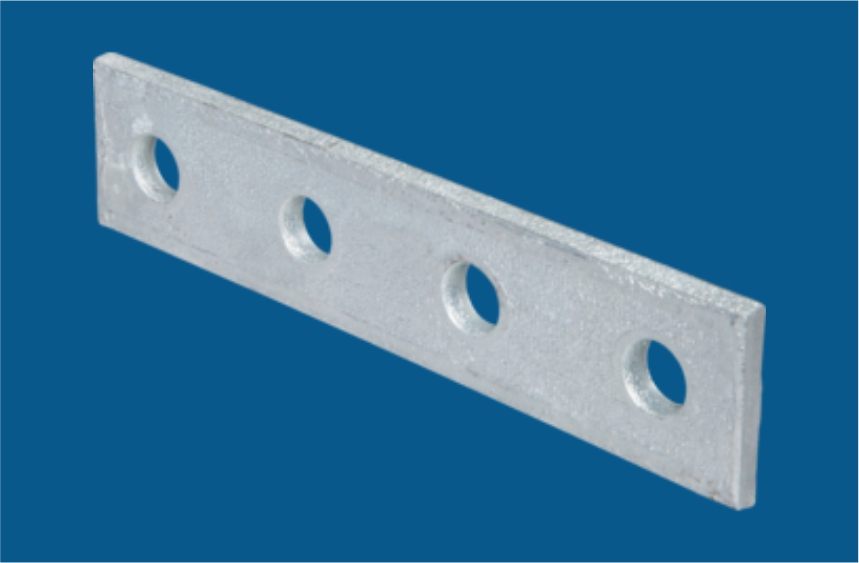

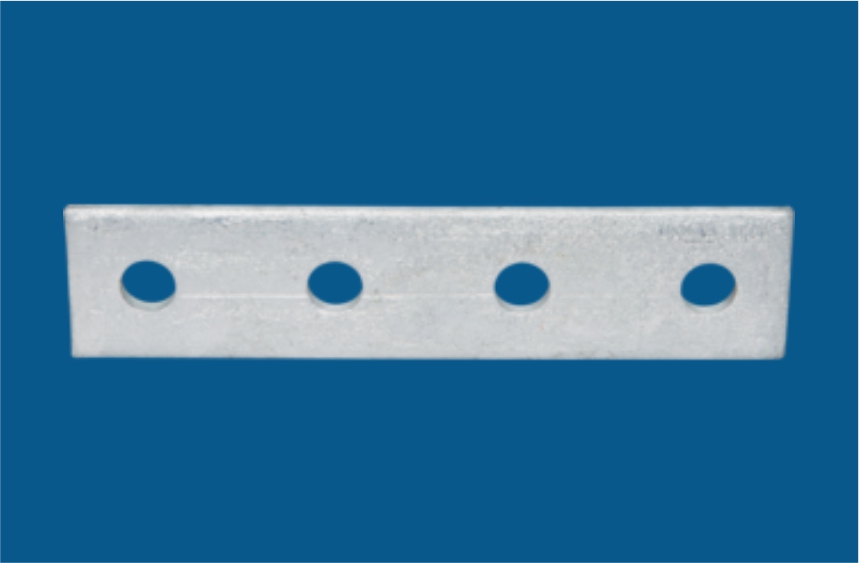

ELECMAN STRUT® Four Holes Splice Plate
MATERIAL: Carbon steel,Alloy steel,Stainless steel
FINISH: Plain, Black, Zinc plated, Hot dip galvanised
APPLICATION:
ELECMAN ® Galvanized steel flat four holes splice plate is designed to fit with all 1-5/8" wide channels. Flat Plates are manufactured from 1/4" thick carbon steel, 1-5/8" wide, all holes are 9/16" diameter, spaced 1-7/8" on center and 13/16" from the end.
FEATURES:
Wide range of size options are available for square washers with different inside diameter, shoulder thickness and lengths.
For hanging threaded rod from metal framing channel.
Galvanized finish for durability.
SPECIFICATION DATA:
ELECMAN provides full size galvanized steel flat three holes splice plate 7-1/4" * 1-5/8".
| Cat.# | Length | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6006 | 7-1/4" | 1-5/8" | 1/4" | 9/16" | 13/16" | 1-7/8" |
