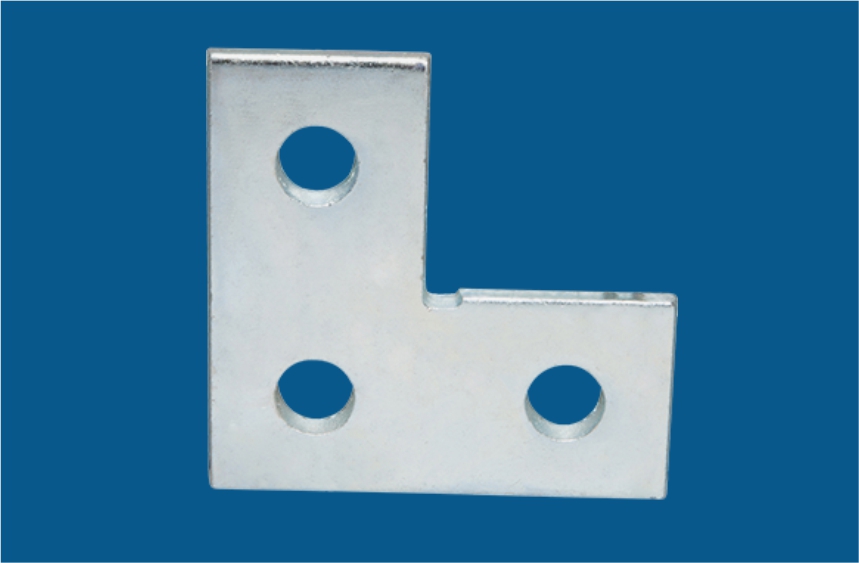

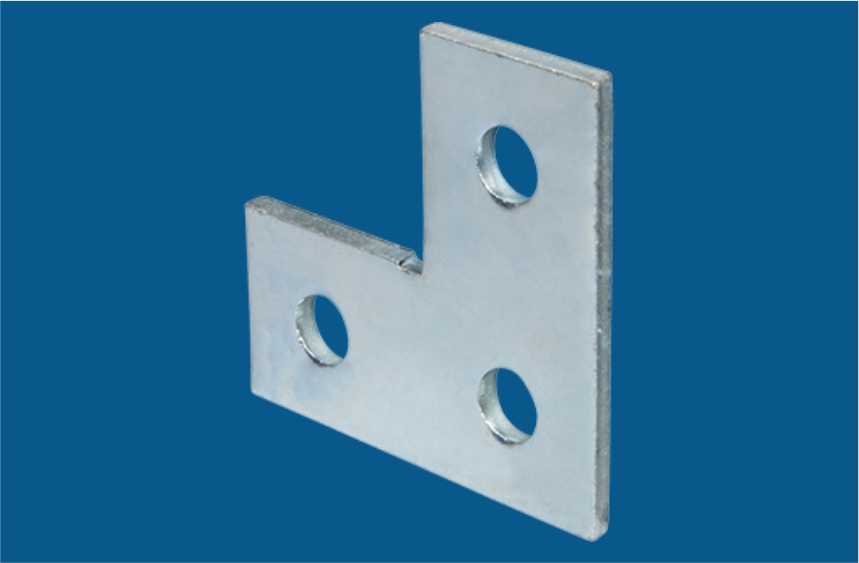

Three Holes Flat Angle Plate
Material : Carbon steel,Alloy steel,Stainless steel
Surface Finish : Plain, Black, Zinc plated, Hot dip galvanised
Type : Flat
ELECMAN STRUT® Three Holes Flat Angle Plate
MATERIAL: Carbon steel,Alloy steel,Stainless steel
FINISH: Plain, Black, Zinc plated, Hot dip galvanised
APPLICATION:
ELECMAN ® Galvanized steel flat three holes angle plate has three 9/16-Inch holes mounting for convenient installation and measures It measures 3-1/2 Inch x 3-1/2 Inch x 1/4 Inch. Flat angle plate is made of steel that provides long lasting durability and strength.
FEATURES:
Wide range of size options are available for square washers with different inside diameter, shoulder thickness and lengths.
For hanging threaded rod from metal framing channel.
Galvanized finish for durability.
SPECIFICATION DATA:

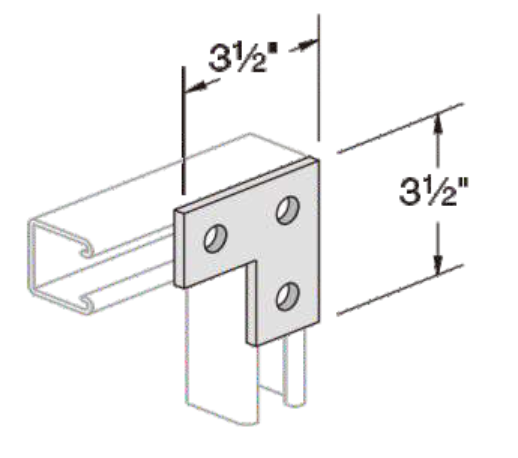

ELECMAN provides full size galvanized steel flat three holes splice plate 3-1/2" * 3-1/2".
| Cat.# | Length | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6008 | 3-1/2" | 3-1/2" | 1/4" | 9/16" | 13/16" | 1-7/8" |
