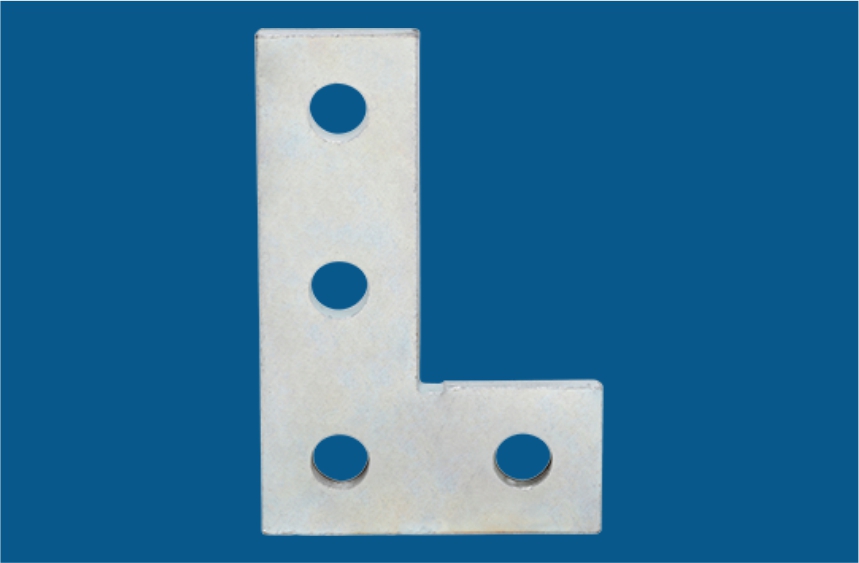

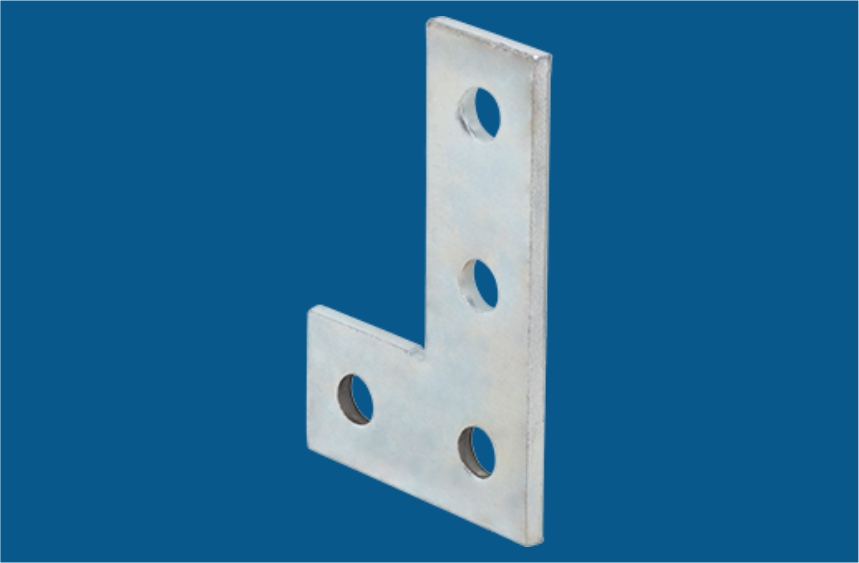

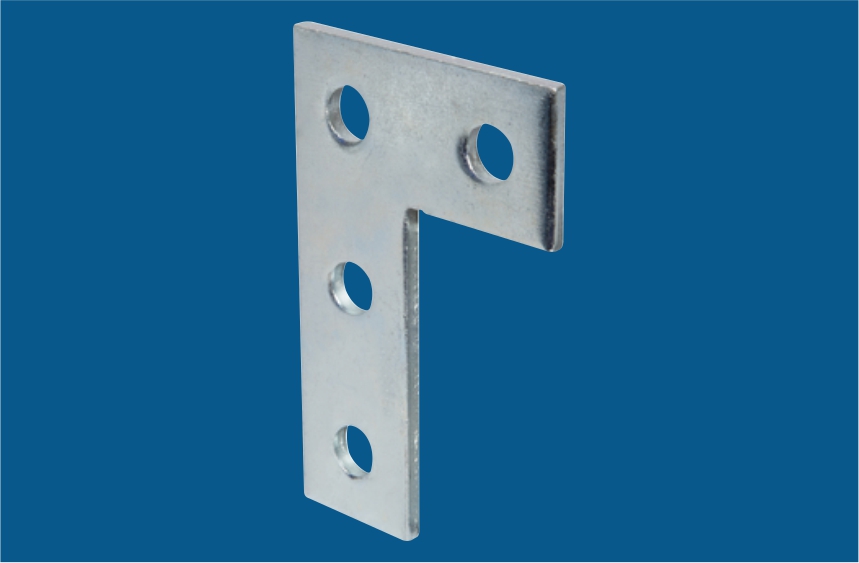

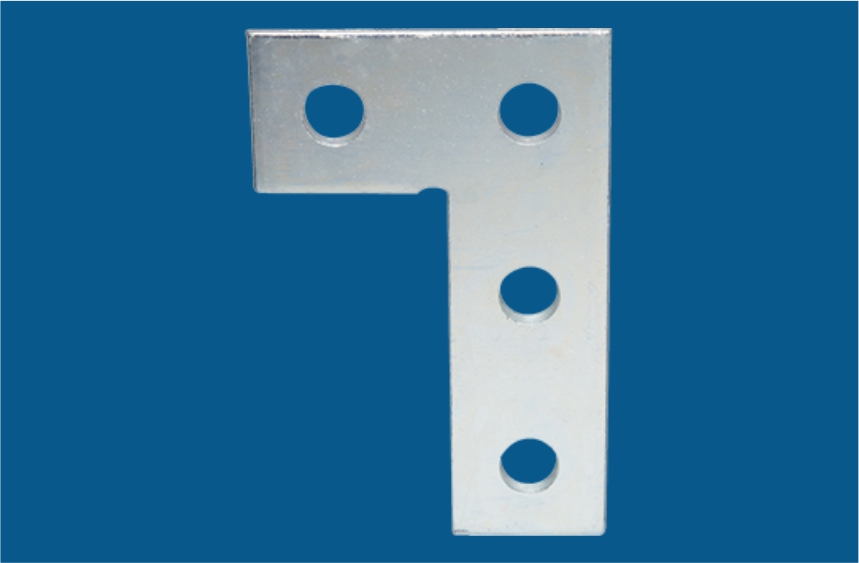

Four holes Flat Angle Plate
Material : Carbon steel,Alloy steel,Stainless steel
Surface Finish : Plain, Black, Zinc plated, Hot dip galvanised
Type : Four holes
ELECMAN STRUT® Four Holes Flat Angle Plate
MATERIAL: Carbon steel,Alloy steel,Stainless steel
FINISH: Plain, Black, Zinc plated, Hot dip galvanised
APPLICATION:
ELECMAN ® Galvanized steel flat four holes angle plate can be used to secure two pieces of strut together. Four hole angle plate is corrosion-resistant, durable, and easy to clean.
FEATURES:
Wide range of size options are available for square washers with different inside diameter, shoulder thickness and lengths.
For hanging threaded rod from metal framing channel.
Galvanized finish for durability.
SPECIFICATION DATA:

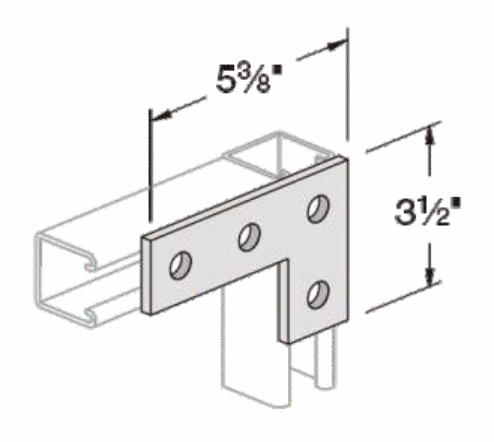

ELECMAN provides full size galvanized steel flat four holes angle plate 5-3/8" * 3-1/2".
| Cat.# | Length | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6009 | 5-3/8" | 3-1/2" | 1/4" | 9/16" | 13/16" | 1-7/8" |
