Four holes Tee Plate
Material : Carbon steel,Alloy steel,Stainless steel
Surface Finish : Plain, Black, Zinc plated, Hot dip galvanised
Type : Tee

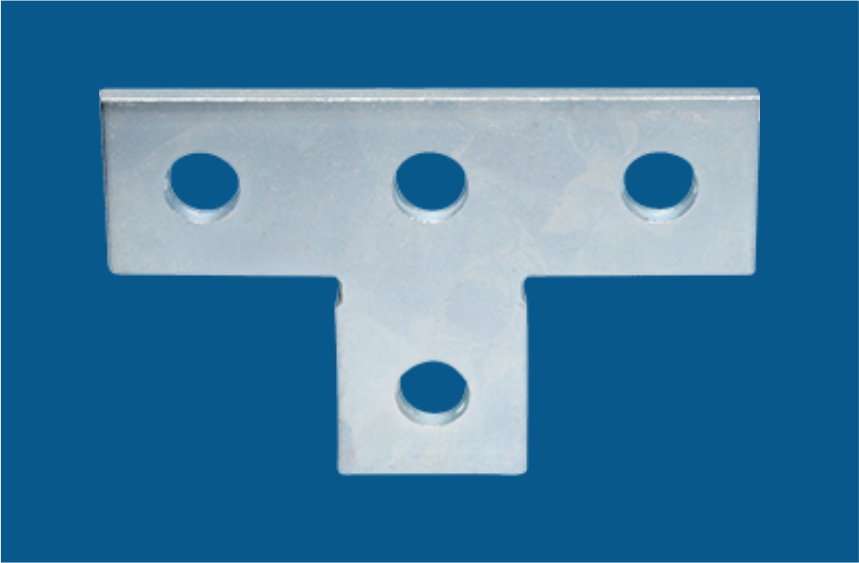

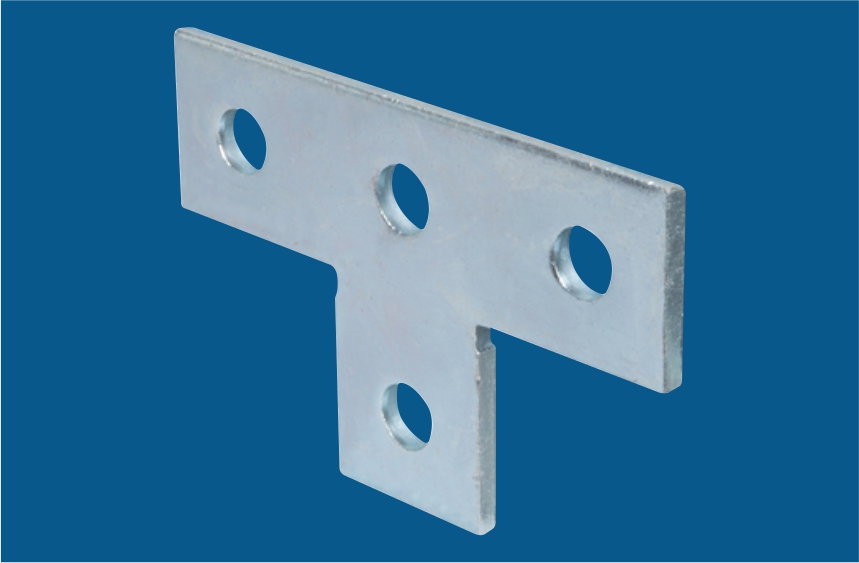

ELECMAN STRUT® Four Holes Tee Plate
MATERIAL: Carbon steel,Alloy steel,Stainless steel
FINISH: Plain, Black, Zinc plated, Hot dip galvanised
APPLICATION:
ELECMAN ® Galvanized steel flat four holes tee plate is ideal for joining two pieces of strut channel in a 90 degree Tee configuration. It can be used with all standard channel sizes, and it comes with an galvanized finish for superior protection
FEATURES:
Wide range of size options are available for square washers with different inside diameter, shoulder thickness and lengths.
For hanging threaded rod from metal framing channel.
Galvanized finish for durability.
SPECIFICATION DATA:
ELECMAN provides full size galvanized steel flat three holes splice plate 5-3/8" * 3-1/2".
| Cat.# | Length | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6012 | 5-3/8" | 3-1/2" | 1/4" | 9/16" | 13/16" | 1-7/8" |
