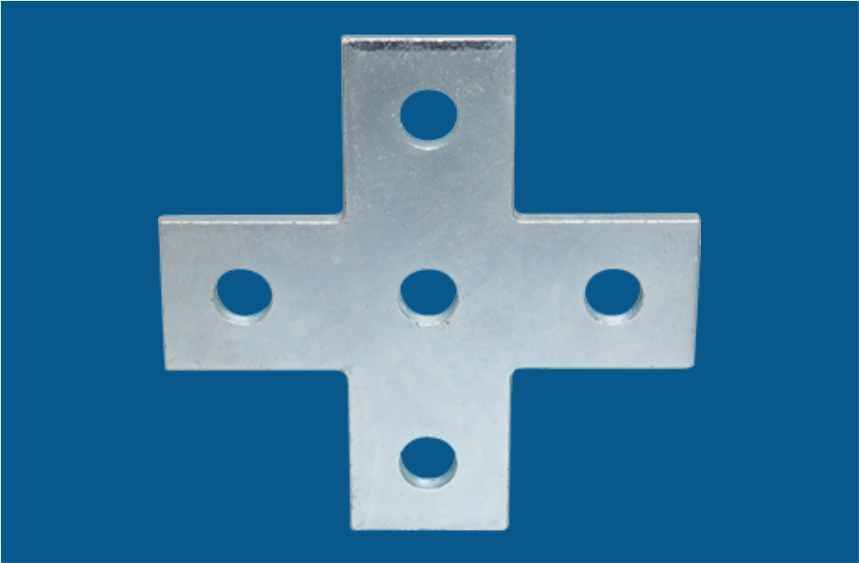

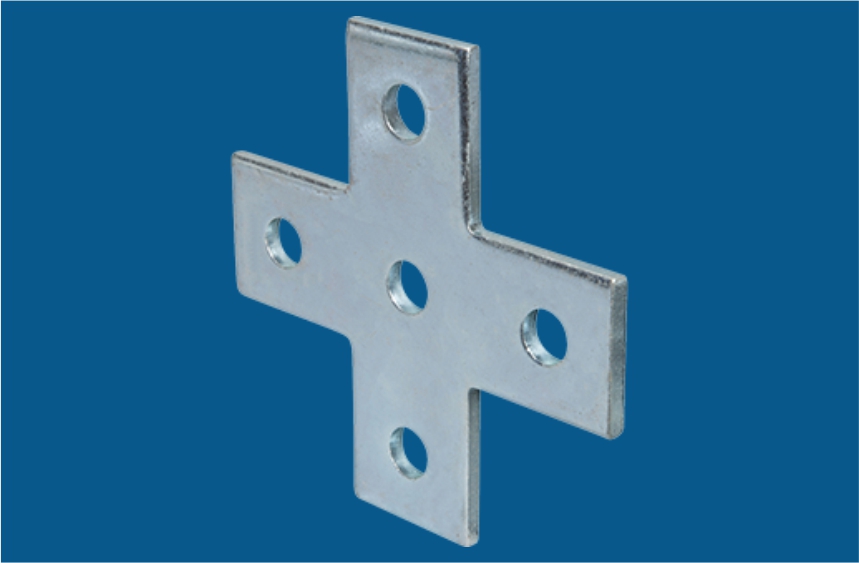

Five Holes Cross Plate
Material : Carbon steel,Alloy steel,Stainless steel
Surface Finish : Plain, Black, Zinc plated, Hot dip galvanised
Type : Cross
ELECMAN STRUT® Four Holes Cross Plate
MATERIAL: Carbon steel,Alloy steel,Stainless steel
FINISH: Plain, Black, Zinc plated, Hot dip galvanised
APPLICATION:
ELECMAN ® Galvanized steel flat five holes cross plates are designed for building four-arm joints based on strut channel. The cross plates are most handy in building strut channel frames. Strut channel frames can be used with the system of roof feet and supports.
FEATURES:
Wide range of size options are available for square washers with different inside diameter, shoulder thickness and lengths.
For hanging threaded rod from metal framing channel.
Galvanized finish for durability.
SPECIFICATION DATA:
ELECMAN provides full size galvanized steel flat three holes splice plate 5-3/8" * 5-3/8".
| Cat.# | Length | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6013 | 5-3/8" | 5-3/8" | 1/4" | 9/16" | 13/16" | 1-7/8" |
