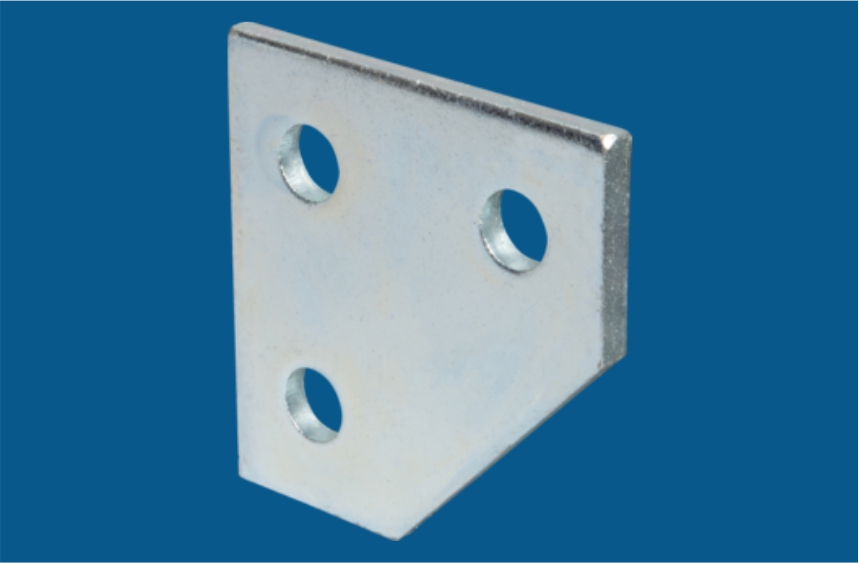

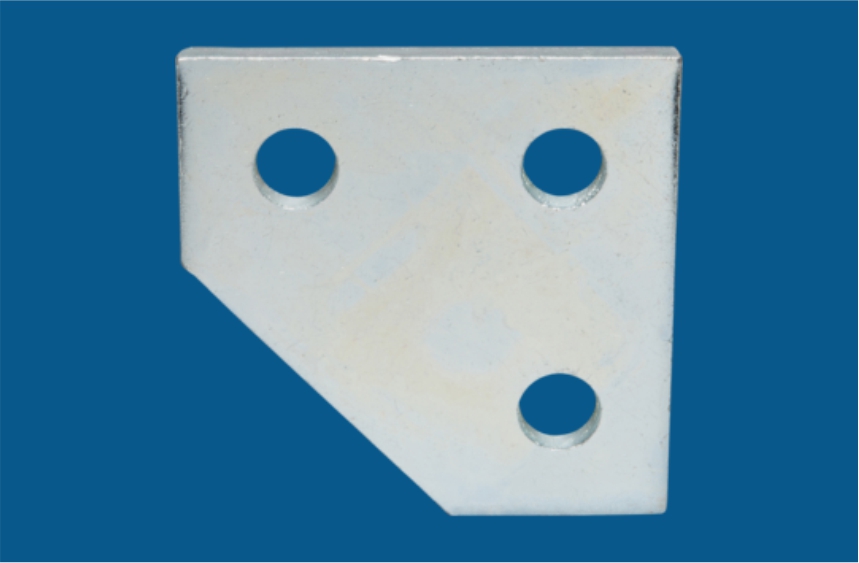

Three Holes Flat Corner Connector
Material : Carbon steel,Alloy steel,Stainless steel
Surface Finish : Plain, Black, Zinc plated, Hot dip galvanised
Type : Flat Corner
ELECMAN STRUT® Three Holes Flat Corner Connector
MATERIAL: Carbon steel,Alloy steel,Stainless steel
FINISH: Plain, Black, Zinc plated, Hot dip galvanised
APPLICATION:
ELECMAN ® Galvanized steel flat three holes corner plate is allow to easily connect multiple pieces of strut channel together or securely attach your channel to a wall or other surface.
FEATURES:
Wide range of size options are available for square washers with different inside diameter, shoulder thickness and lengths.
For hanging threaded rod from metal framing channel.
Galvanized finish for durability.
SPECIFICATION DATA:

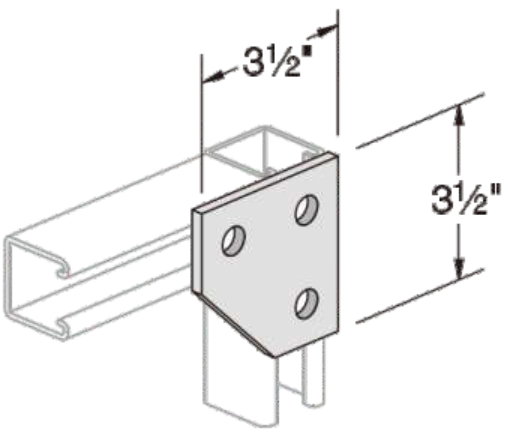

ELECMAN provides full size galvanized steel flat three holes splice plate 3-1/2" * 3-1/2".
| Cat.# | Length | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6014 | 3-1/2" | 3-1/2" | 1/4" | 9/16" | 13/16" | 1-7/8" |
