Three Holes Joint Connector
Material : Carbon steel,Alloy steel,Stainless steel
Surface Finish : Plain, Black, Zinc plated, Hot dip galvanised
Type : Joint

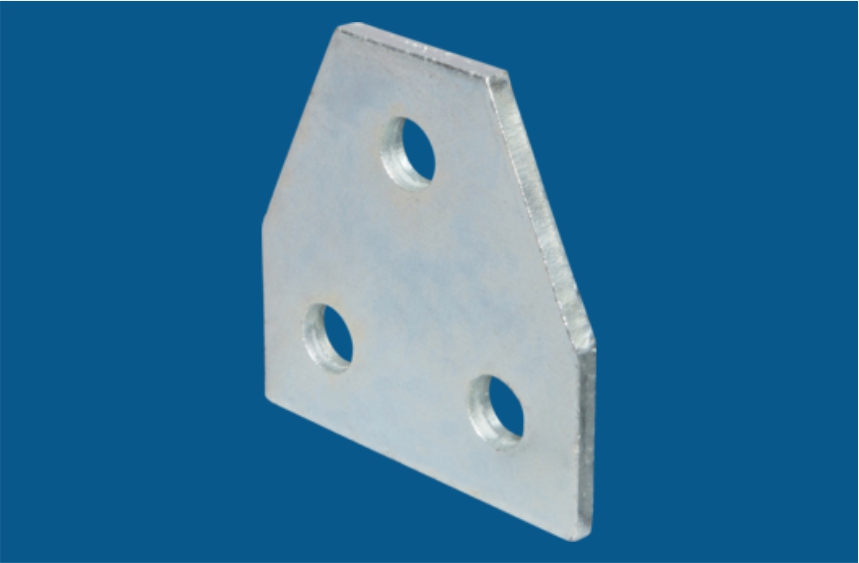

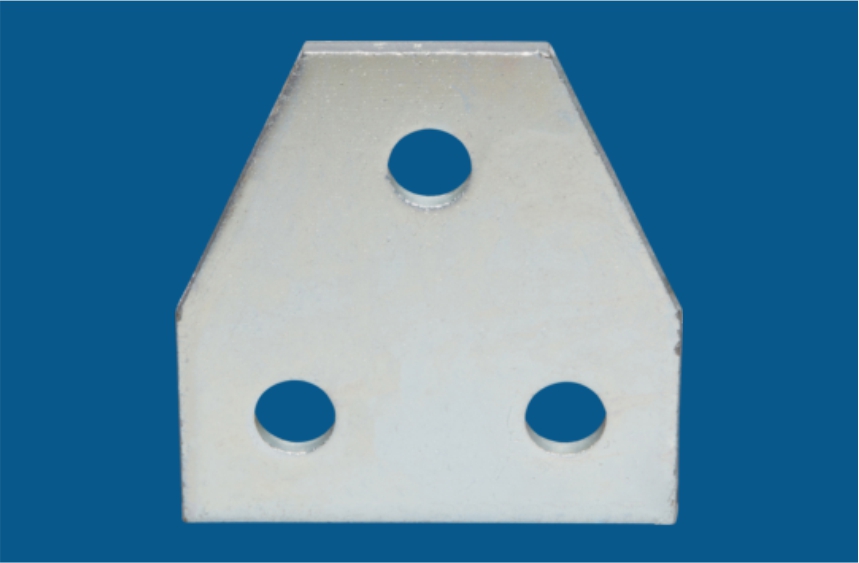

ELECMAN STRUT® Three Holes Joint Connector
MATERIAL: Carbon steel,Alloy steel,Stainless steel
FINISH: Plain, Black, Zinc plated, Hot dip galvanised
APPLICATION:
ELECMAN ® Galvanized steel flat three holes joint plate is the best solution for fabrication and reinforcement of flat joints between strut channel. The joint plate allows adding two perpendicular strut channel, to the main channel.
FEATURES:
Wide range of size options are available for square washers with different inside diameter, shoulder thickness and lengths.
For hanging threaded rod from metal framing channel.
Galvanized finish for durability.
SPECIFICATION DATA:

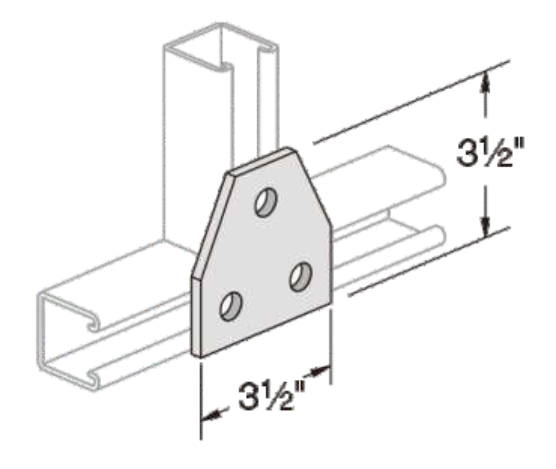

ELECMAN provides full size galvanized steel flat three holes joint plate 3-1/2" * 3-1/2".
| Cat.# | Length | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6017 | 3-1/2" | 3-1/2" | 1/4" | 9/16" | 13/16" | 1-7/8" |
