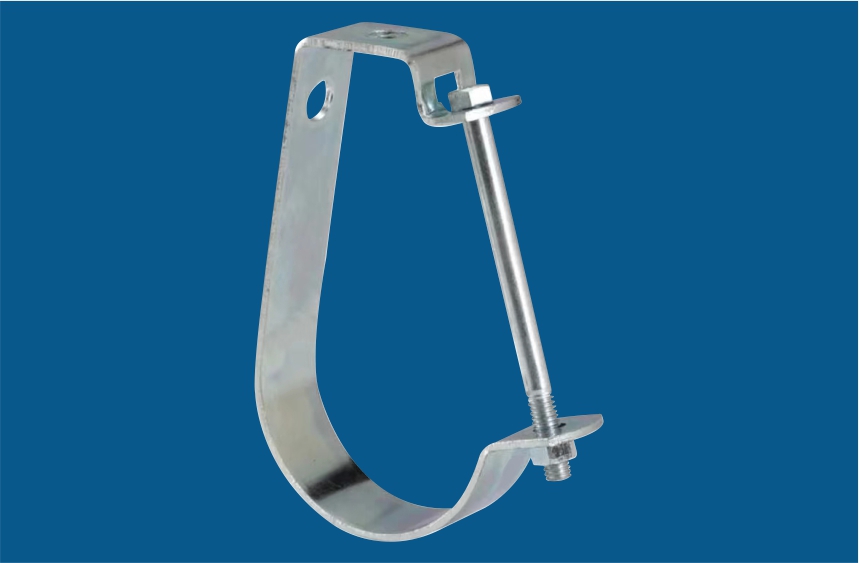

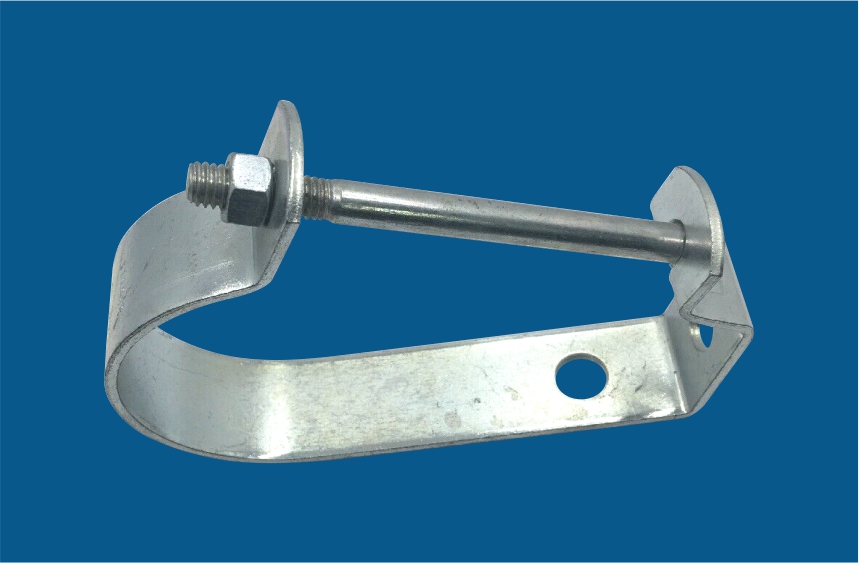

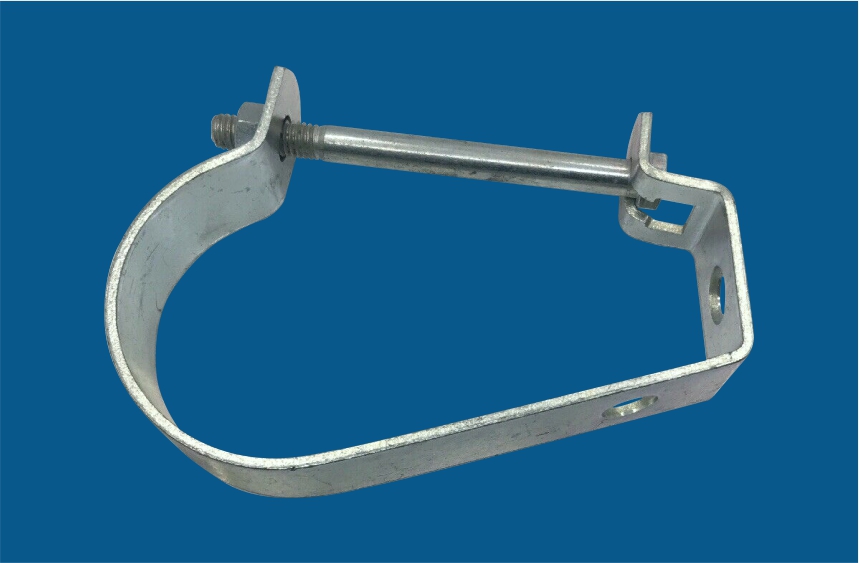

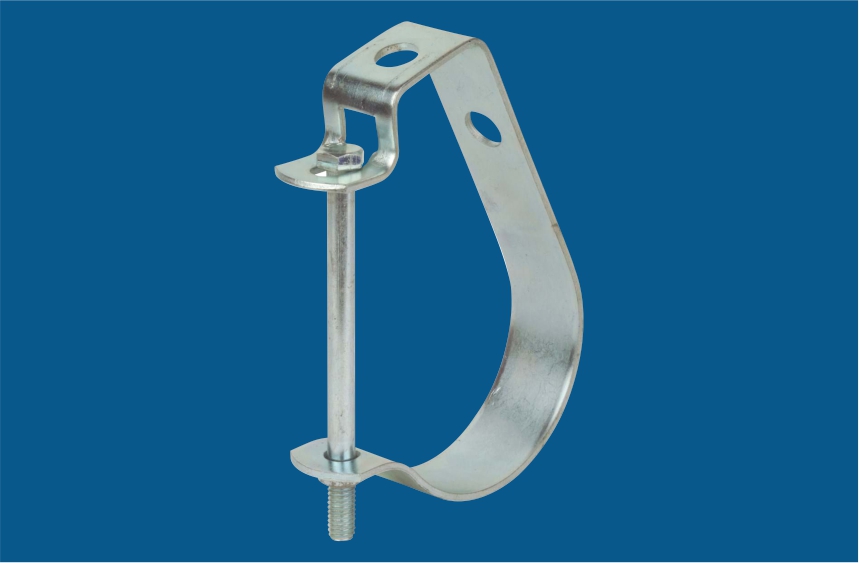

Adjustable J-Type Conduit Hanger
Material : Steel
Surface Finish : Zinc Plated, Hot-Dipped Galvanized
Type : Adjustable
ELECMAN ® ADJUSTABLE J HANGER
Material:Low carbon steel
Finish:Zinc plated
| CAT# | Trade Size | A Rod Size | B | C | D | E Hole Diameter | F Bolt Size | Load Rating/LBS |
| ES-8006A | 1/2" | 3/8" | 2-5/8" | 1" | 2" | 12/32" | 1/4" * 2-1/4" | 400 |
| ES-8006B | 3/4" | 3/8" | 2-7/8" | 1" | 2-1/4" | 12/32" | 1/4" * 2-1/4" | 400 |
| ES-8006C | 1" | 3/8" | 3" | 1" | 2-3/8" | 12/32" | 1/4" * 2-1/2" | 400 |
| ES-8006D | 1-1/4" | 3/8" | 3-1/4" | 1" | 2-1/2" | 12/32" | 1/4" * 2-3/4" | 400 |
| ES-8006E | 1-1/2" | 3/8" | 3-1/2" | 1" | 2-5/8" | 12/32" | 1/4" * 3" | 400 |
| ES-8006F | 2" | 3/8" | 3-3/4" | 1-1/8" | 2-5/8" | 12/32" | 1/4" * 3-1/2" | 400 |
| ES-8006G | 2-1/2" | 1/2" | 4-3/8" | 1-1/8" | 3-5/8" | 9/16" | 3/8" * 4-1/2" | 800 |
| ES-8006H | 3" | 1/2" | 4-7/8" | 1-1/8" | 4" | 9/16" | 3/8" * 5" | 800 |
| ES-8006I | 3-1/2" | 1/2" | 5-1/8" | 1-1/8" | 4-1/4" | 9/16" | 3/8" * 6" | 800 |
| ES-8006J | 4" | 5/8" | 6-1/8" | 1-1/8" | 5-1/8" | 9/16" | 3/8" * 6" | 800 |
| ES-8006K | 5" | 5/8" | 6-3/4" | 1-1/8" | 5-3/4" | 9/16" | 3/8" * 7-1/2" | 800 |
| ES-8006L | 6" | 3/4" | 7-3/4" | 1-1/4" | 6-1/2" | 9/16" | 3/8" * 8-1/2" | 1000 |
| ES-8006M | 8" | 7/8" | 9-1/4" | 1-1/4" | 8" | 9/16" | 3/8" * 10" | 1200 |
