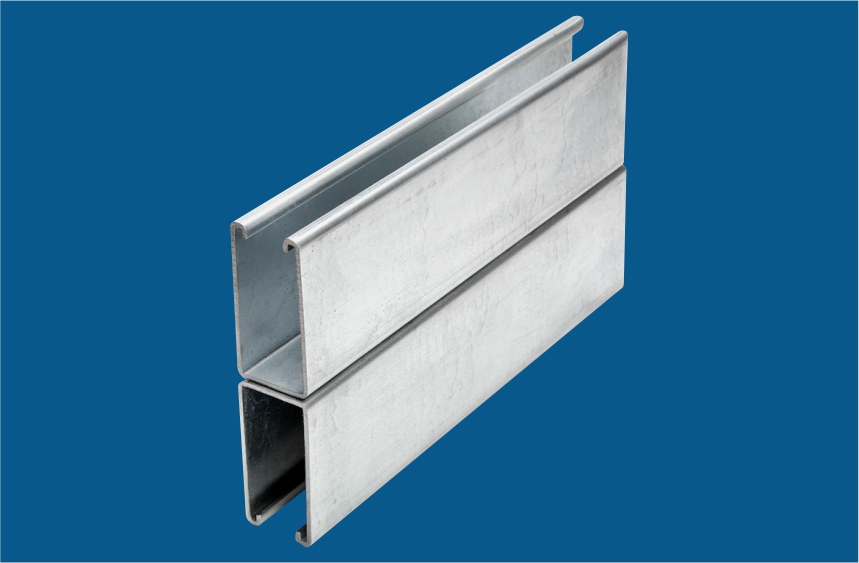

Back to Back Strut Channel 41 x 165 x2.5mm
Material : Carbon steel, Stainless steel, Aluminum
Surface Finish : Pre-Galvanized, Hot-Dipped Galvanized, Electro-Galvanized, Green Power Coated,Plain, Aluminum, Stainless Steel
Type : Back to back

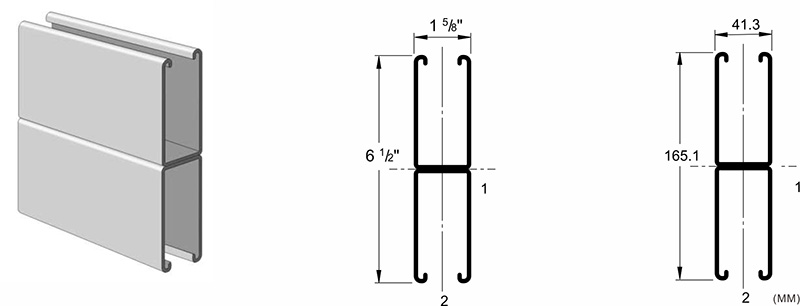

STRUT CHANNEL - ES-101
ES-101(1-5/8" x 6-1/2" x 12 ga)
Thickness: 12 ga(2.6mm)
Standard Lengths: 10' (3.05m) & 20' (6.09m)
Finishes:Pre-Galvanized, Hot-Dipped Galvanized, Electro-Galvanized, Green Power Coated,Plain, Aluminum, Stainless Steel
| SECTION PROPERTIES | 1-1 AXIS | 2-2 AXIS | ||||||
| CAT. | WT/FT | AREA | Ix | Sx | Rx | Iy | Sy | Ry |
| LBS. | SQ.IN. | in4 | in3 | in | in4 | in3 | in | |
| ES-101 | 6.08 | 1.788 | 6.222 | 1.914 | 1.865 | 0.863 | 1.063 | 0.695 |

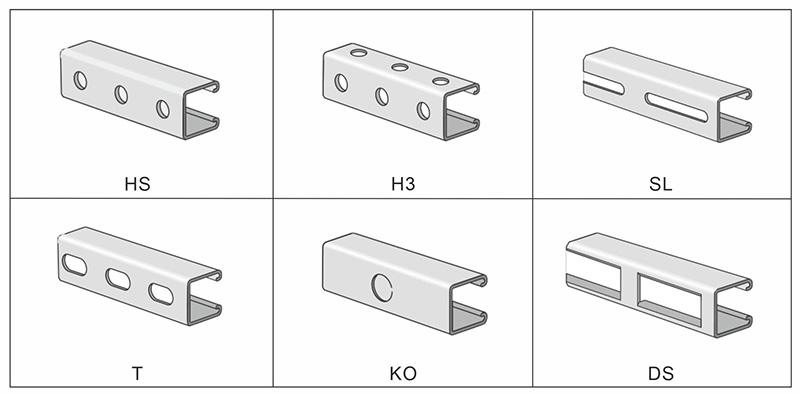

Solid strut channel or strut channels with holes or slots are both available, the strut channels with holes or slots,
usually called slotted strut channel, ELECMAN can provide different types strut channels.
