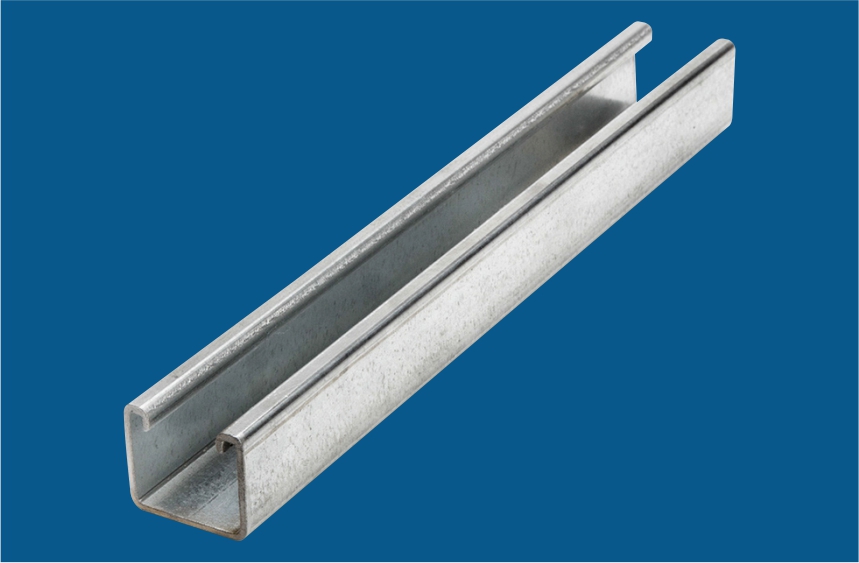

Strut Channel 41 x 35 x 2.5mm

Material : Carbon steel, Stainless steel, Aluminum

Surface Finish : Pre-Galvanized, Hot-Dipped Galvanized, Electro-Galvanized, Green Power Coated,Plain, Aluminum, Stainless Steel

Type : C

STRUT CHANNEL - ES-300

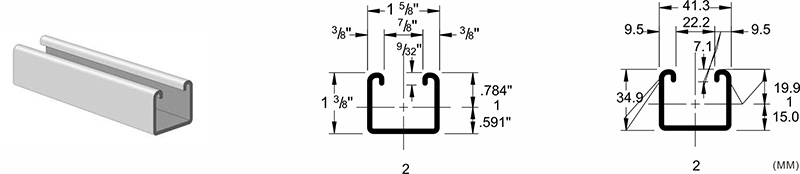

ES-300(1-5/8" x 1-3/8" x 12 ga)

Thickness: 12 ga(2.6mm)

Standard Lengths: 10' (3.05m) & 20' (6.09m)

Finishes: Pre-Galvanized, Hot-Dipped Galvanized, Electro-Galvanized, Green Power Coated,Plain, Aluminum, Stainless Steel



SECTION PROPERTIES 1-1 AXIS2-2 AXIS
CAT.WT/FTAREAIxSxRxIySyRy
LBS.SQ.IN.in4in3inin4in3in
ES-3001.700.5000.1180.1510.4870.2040.2510.639

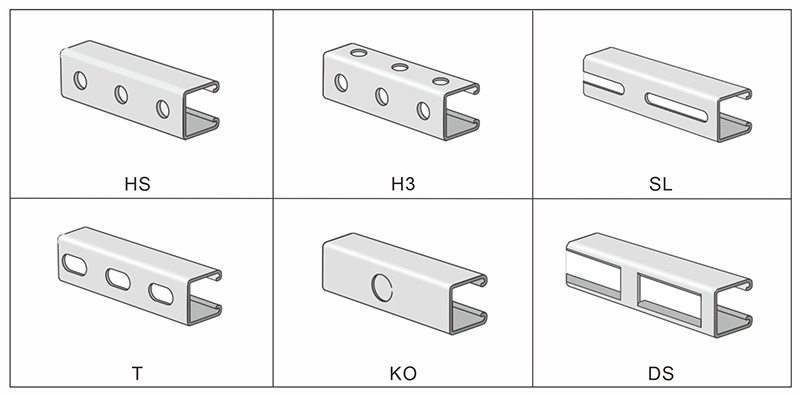

Solid strut channel or strut channels with holes or slots are both available, the strut channels with holes or slots,

usually called slotted strut channel, ELECMAN can provide different types strut channels.
