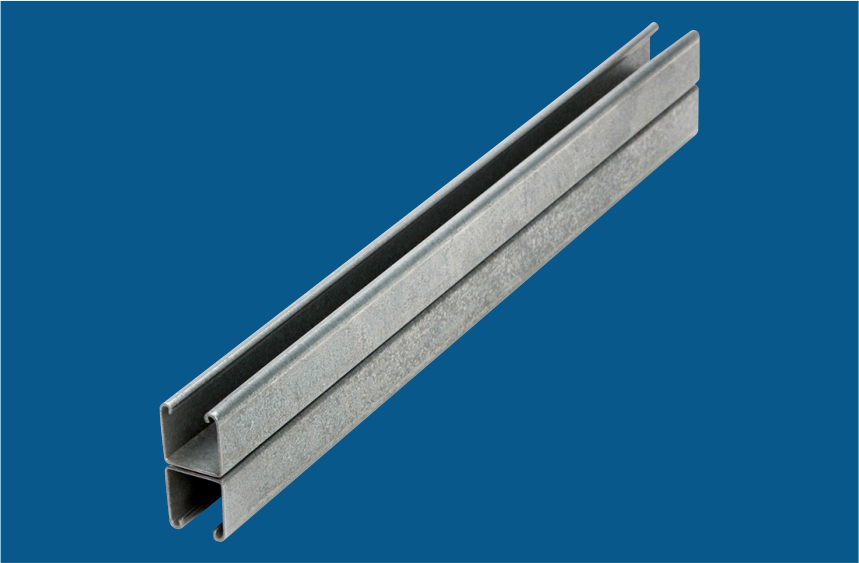

Back to Back Strut Channel 21 x 41 x 1.0mm
Material : Carbon steel, Stainless steel, Aluminum
Surface Finish : Pre-Galvanized, Hot-Dipped Galvanized, Electro-Galvanized, Green Power Coated,Plain, Aluminum, Stainless Steel
Type : Back to back

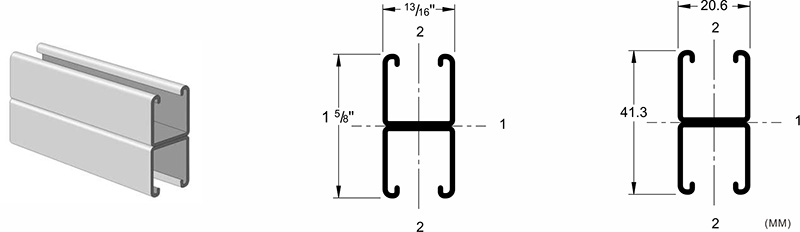

BACK TO BACK STRUT CHANNEL - ES-601
ES-601(13/16" x 1-5/8" x 19 ga)
Thickness: 19 ga(1.0mm)
Standard Lengths: 10' (3.05m) & 20' (6.09m)
Finishes: Pre-Galvanized, Hot-Dipped Galvanized, Electro-Galvanized, Green Power Coated,Plain, Aluminum, Stainless Steel
| SECTION PROPERTIES | 1-1 AXIS | 2-2 AXIS | ||||||
| CAT. | WT/FT | AREA | Ix | Sx | Rx | Iy | Sy | Ry |
| LBS. | SQ.IN. | in4 | in3 | in | in4 | in3 | in | |
| ES-601 | 0.70 | 0.206 | 0.042 | 0.051 | 0.450 | 0.042 | 0.056 | 0.332 |
