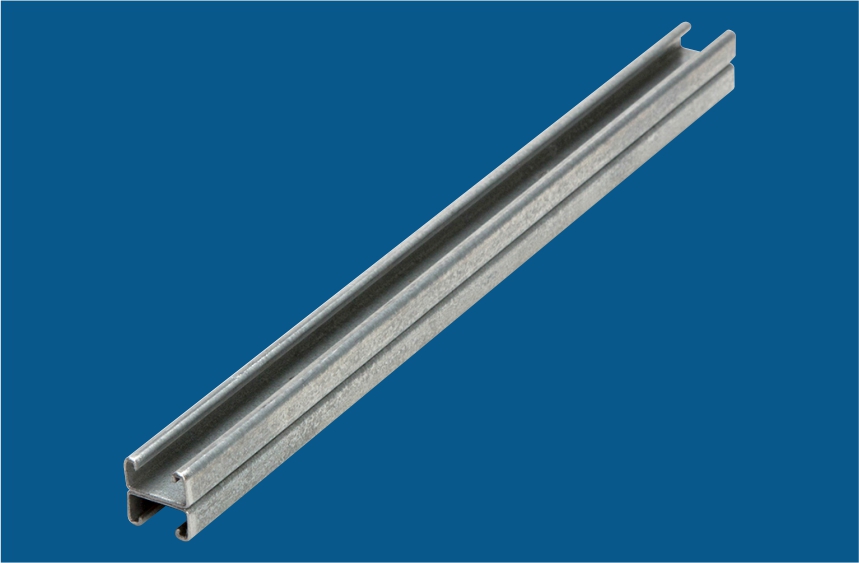

Back to Back Strut Channel 21 x 21 x 1.0mm
Material : Carbon steel, Stainless steel, Aluminum
Surface Finish : Pre-Galvanized, Hot-Dipped Galvanized, Electro-Galvanized, Green Power Coated,Plain, Aluminum, Stainless Steel
Type : Back to back

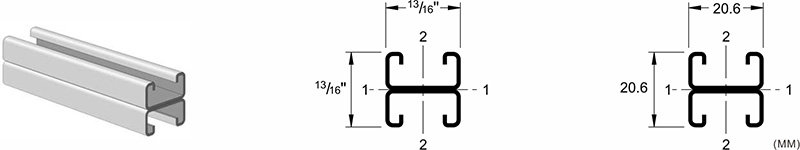

BACK TO BACK STRUT CHANNEL - ES-701
ES-701(13/16" x 13/16" x 19 ga)
Thickness: 19 ga(1.0mm)
Standard Lengths: 10' (3.05m) & 20' (6.09m)
Finishes: Pre-Galvanized, Hot-Dipped Galvanized, Electro-Galvanized, Green Power Coated,Plain, Aluminum, Stainless Steel
| SECTION PROPERTIES | 1-1 AXIS | 2-2 AXIS | ||||||
| CAT. | WT/FT | AREA | Ix | Sx | Rx | Iy | Sy | Ry |
| LBS. | SQ.IN. | in4 | in3 | in | in4 | in3 | in | |
| ES-701 | 0.48 | 0.141 | 0.007 | 0.016 | 0.215 | 0.013 | 0.032 | 0.304 |
