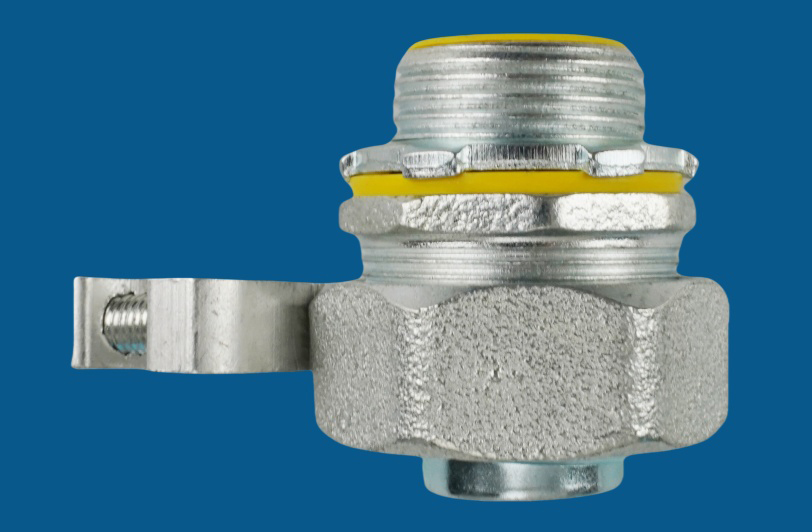

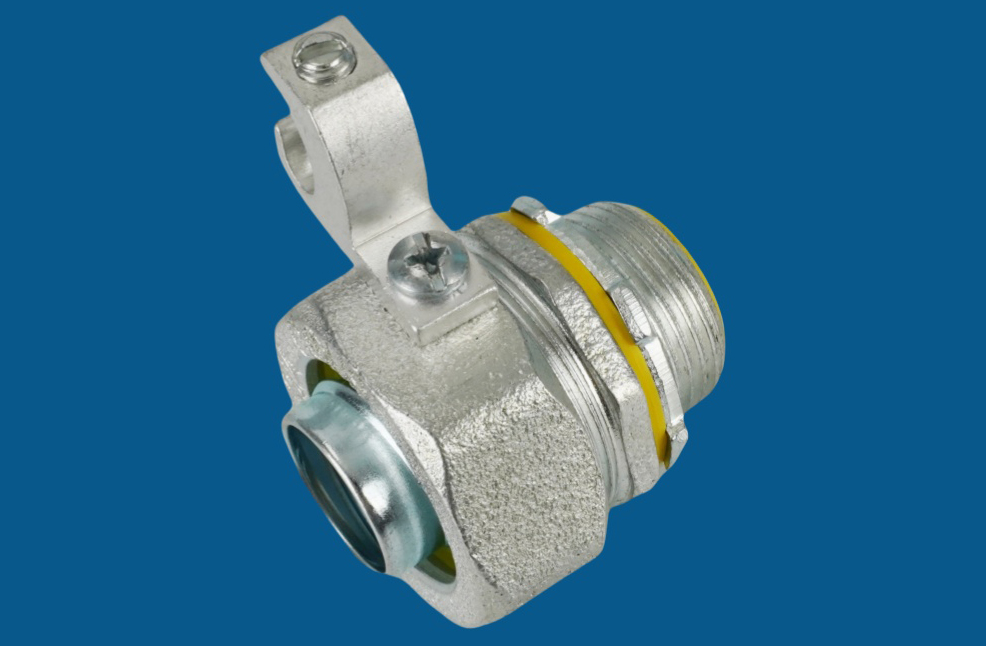

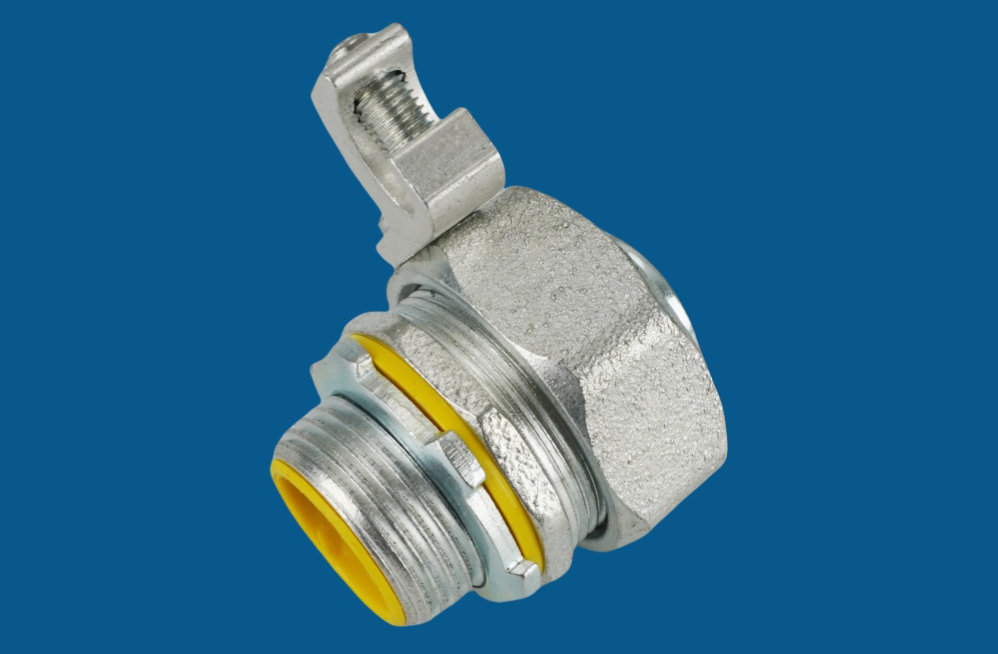

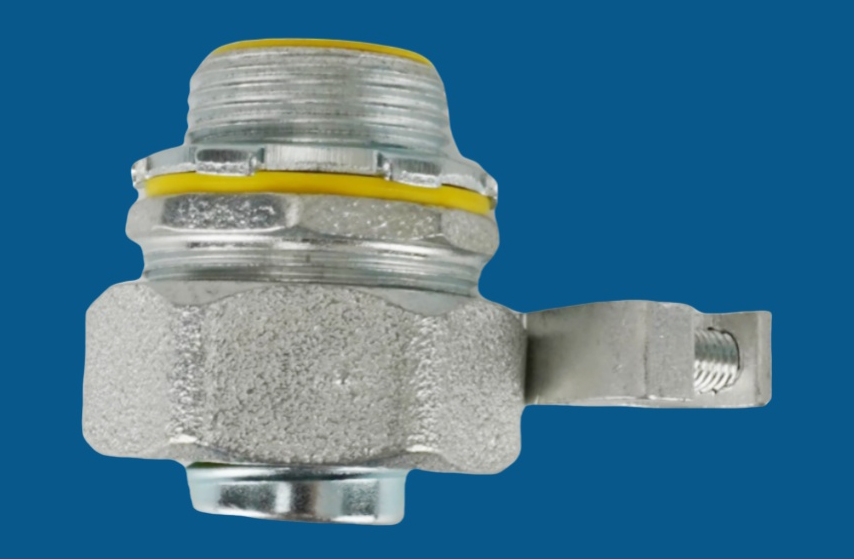

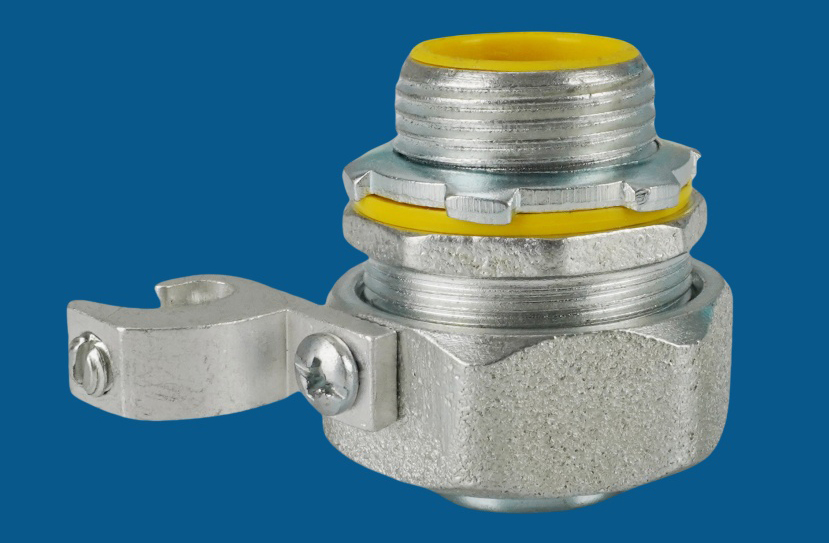

ELECMAN® Malleable Iron Liquid Tight Connector Straight Type with Aluminum Lug

Malleable Iron Insulated Straight Liquid Tight Connectors with Aluminum Lug are specialized fittings used to securely connect flexible metallic liquid-tight conduits and Type B flexible non-metallic liquid-tight conduits to electrical boxes or enclosures. They are suitable for both indoor and outdoor applications, especially where an external copper or aluminum bonding jumper is required for grounding.

MATERIAL: Malleable iron

LUG MATERIAL: Aluminum

FINISH: Zinc plated

TYPE: Straight

CERTIFICATE:

UL Listed, File No.: E547878

APPLICATIONS:

· Used in outdoor or indoor environments where conduit systems require protection from moisture, dust, and mechanical stress.

· Suitable for connecting both flexible metallic liquid-tight conduit and Type B flexible non-metallic liquid-tight conduit.

· Essential when an external bonding jumper (copper or aluminum) is needed for grounding or electrical continuity.

FEATURES:

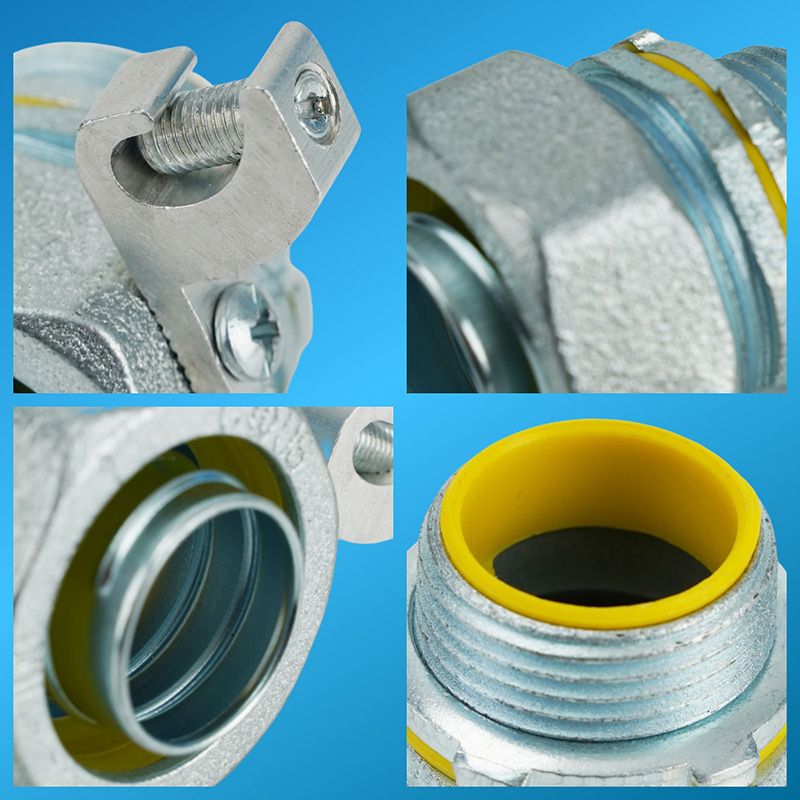

• Durable Construction:
  Made of malleable iron, providing strong mechanical protection for the raceway.

• Corrosion Resistance:
  Zinc electroplated finish offers added protection against corrosion.

• Insulated Throat:
  Features a 105°C rated insulated throat to safeguard conductors from abrasion and heat.

• Sealing Washer:
  Includes a sealing washer to maintain a reliable liquid-tight seal, especially in unthreaded openings.

• Versatile Compatibility:
  Suitable for use with both flexible metallic liquid-tight conduit and Type B flexible non-metallic liquid-tight conduit.

• Aluminum Lay-In Lug:
  Equipped with an aluminum lay-in lug for easy connection of copper or aluminum grounding conductors.

• Secure Grounding:
  The combination of the aluminum lug and heavy-duty locknut ensures a dependable grounding path.

• Thread Type:
  Features NPT (National Pipe Thread) male threads for secure and standard installation.

•


PACKING INFORMATION:

Inner Packaging: Paper box or self sealing plastic bag

Outer Packaging: Corrugated cardboard box
