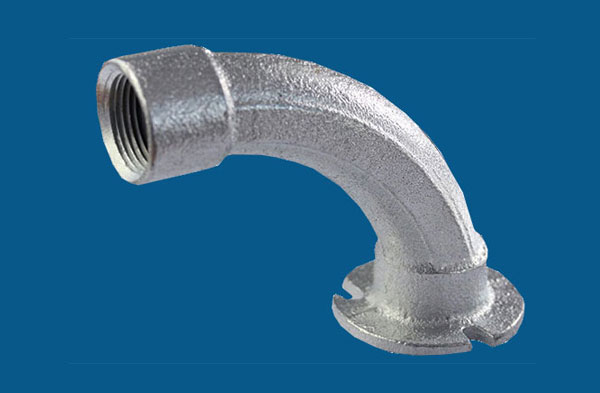

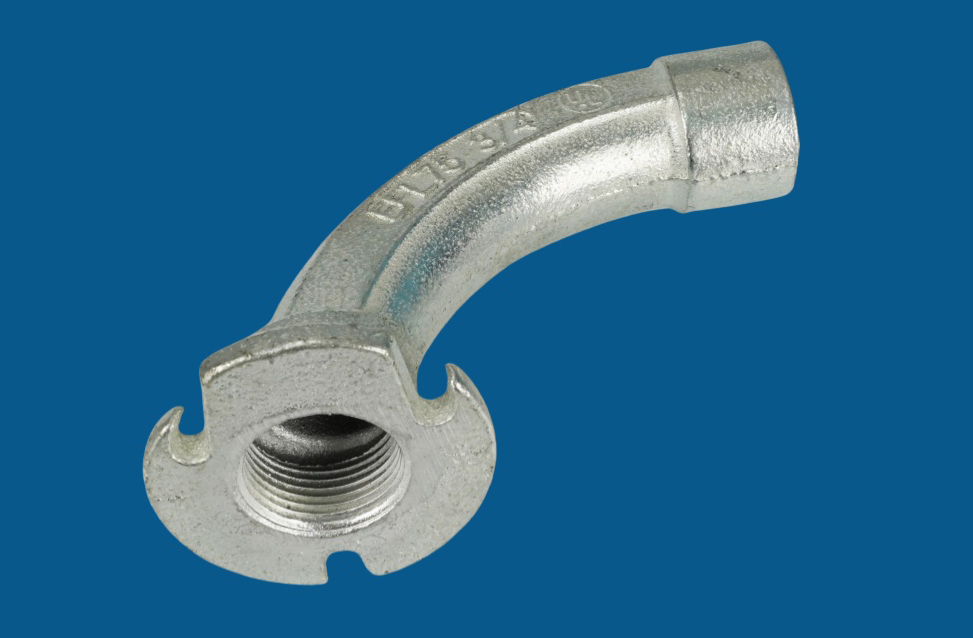

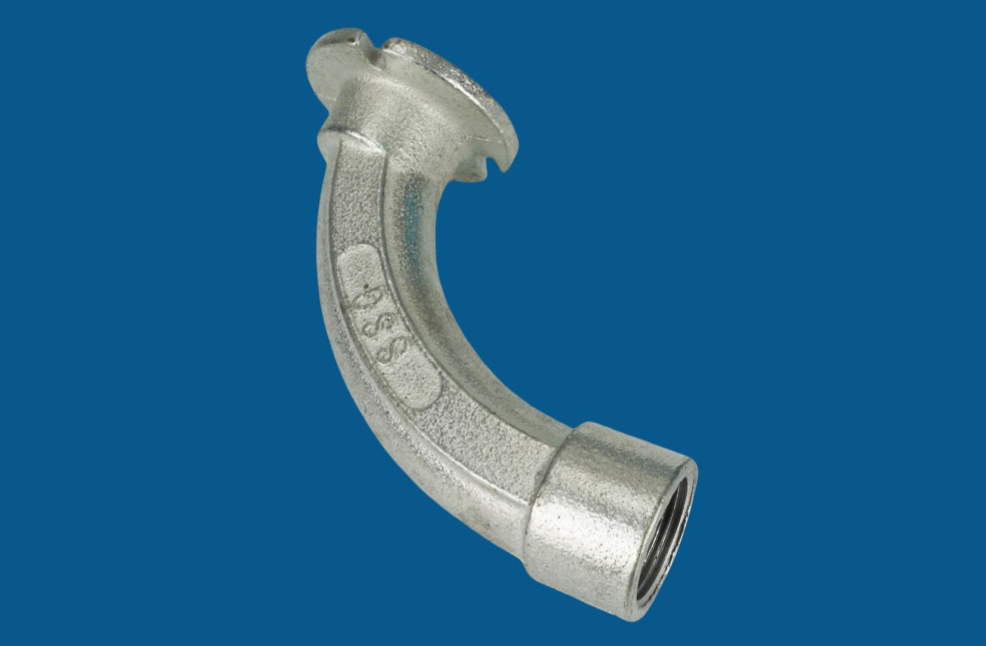

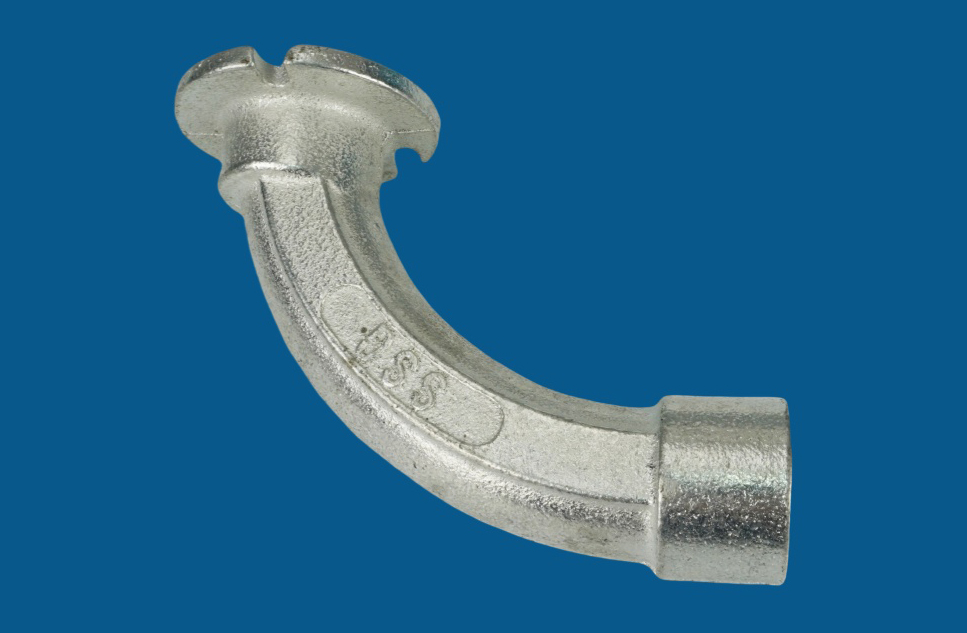

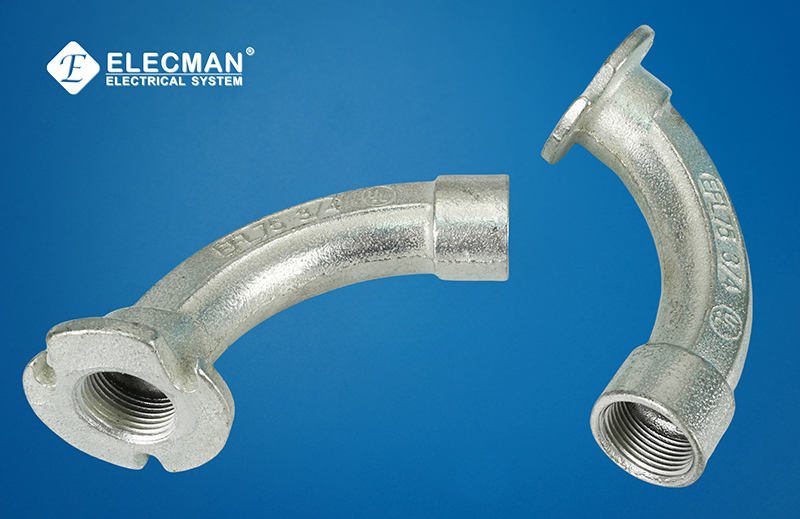

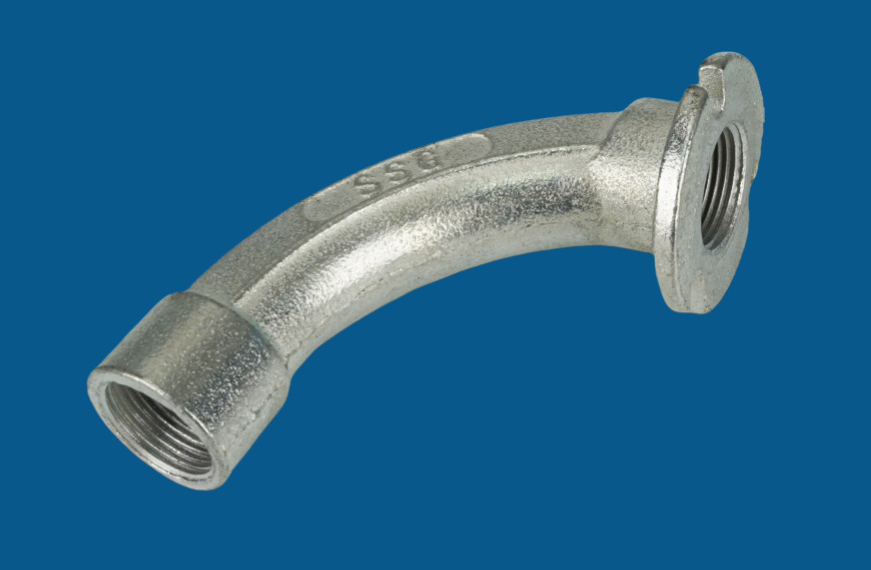

Concrete Slab Inserts-90° Type
Material : Malleable iron
Surface Finish : Zinc plated
Type : 90° type
PRODUCT:Concrete Slab Inserts
MATERIAL: Malleable iron
TYPE: 90° type
APPLICATION:
ELECMAN®Concrete slab inserts are used to connect Rigid conduit to wood forms being used to make walls, floors and ceilings in poured concrete structures the exposed threaded access point on these pipe inserts create a quick and easy
means of continuing the conduit run in the finished concrete shell structure.
FEATURES:
·Multiple slots to ensure the connectors remain fastened to wood during the concrete pour
·Malleable iron construction create solid grounding
·Smooth interior surface avoids snagging wires when they are pulled after the concrete pour
| Cat.# | Trade Size |
| CISN050 | 1/2" |
| CISN075 | 3/4" |
| CISN100 | 1" |
PACKING INFORMATION
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
