Squeeze Connectors-90° type
Material : Zinc die cast
Surface Finish : Polishing
Type : 90° type

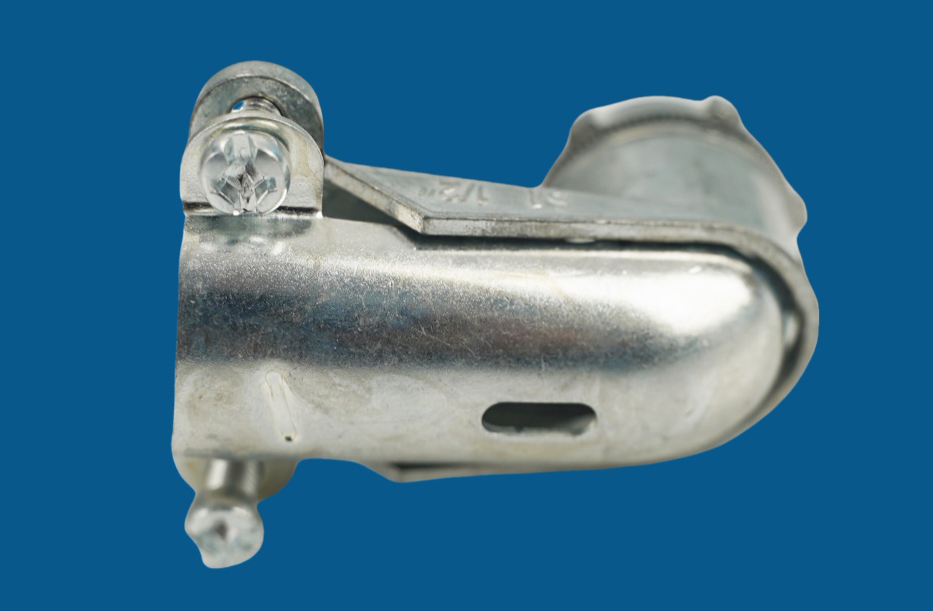

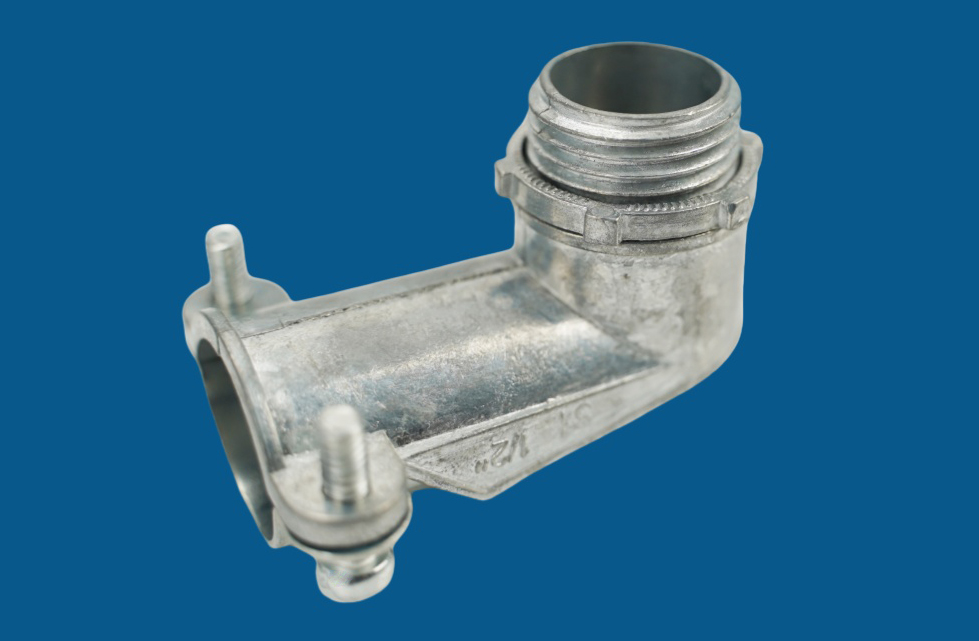

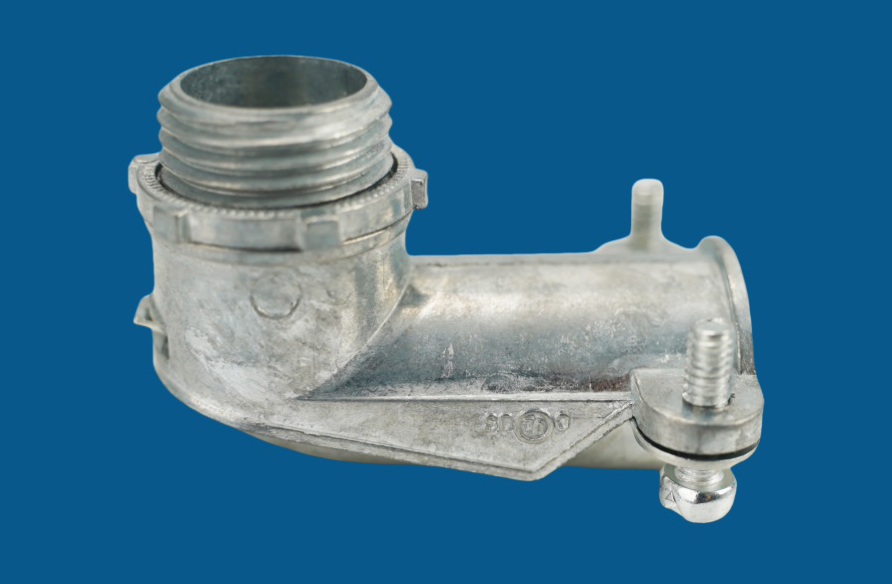

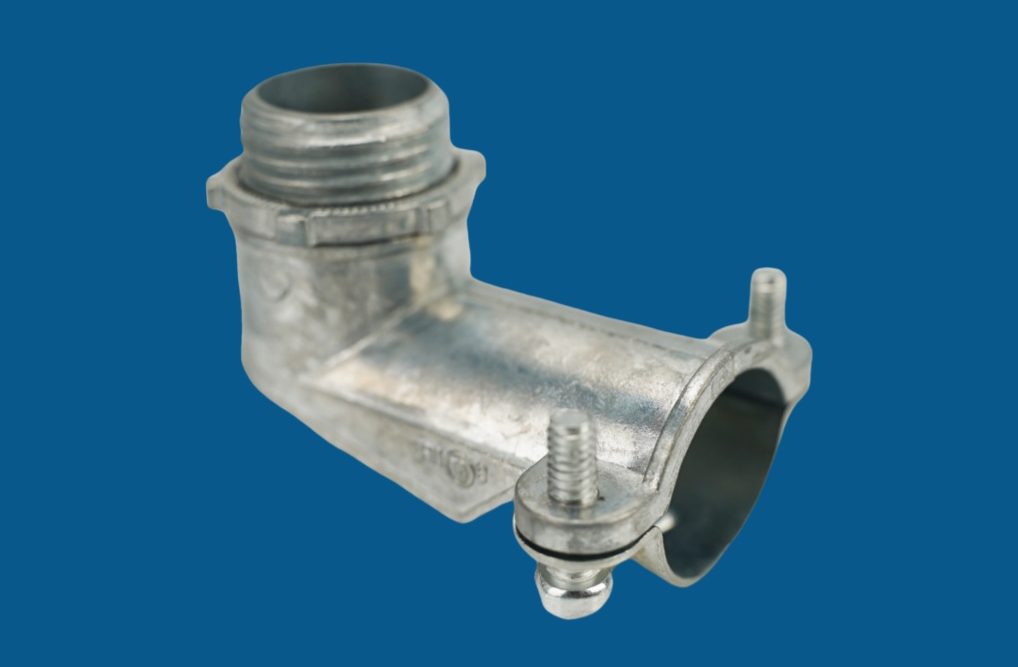

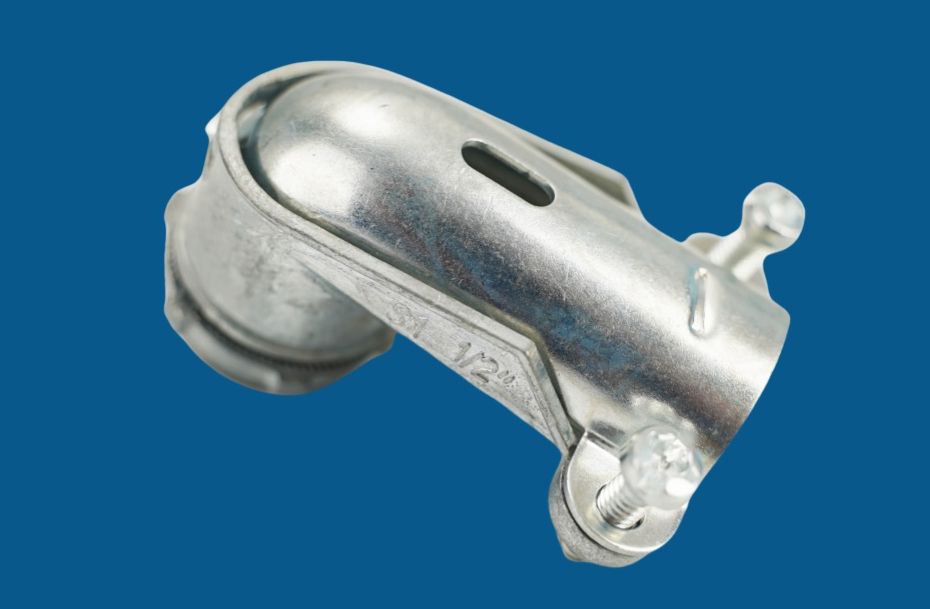

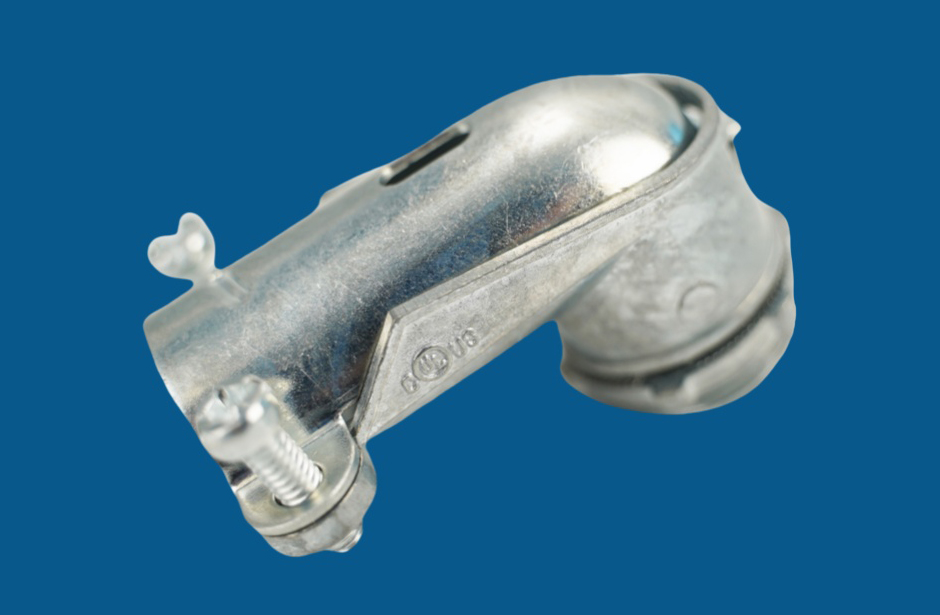

ELECMAN® Squeeze Connectors-90° type
PRODUCT: Squeeze connector
MATERIAL: Zinc die cast
TYPE: 90°
APPLICATION:

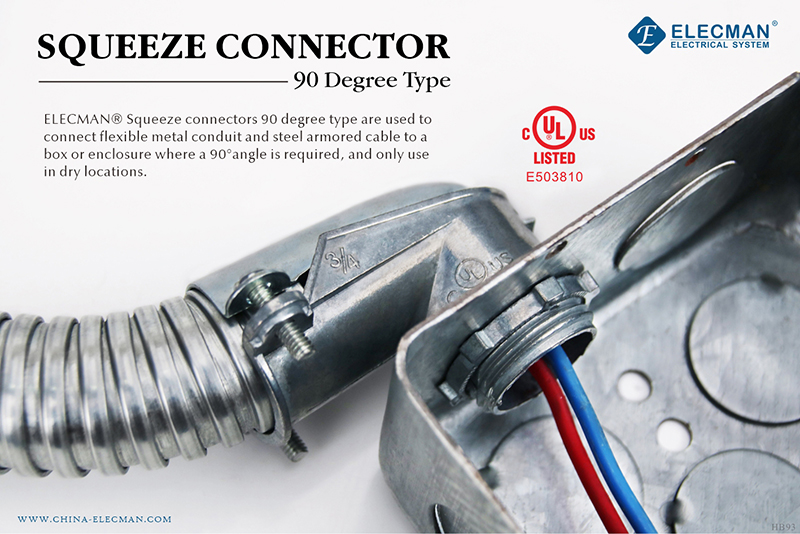

ELECMAN®Squeeze connectors 90° type are used to connect flexible metal conduit, armored cable, metal, clad cable through a 3/8" or 1/2" knock-out in a steel box, load center, or other metal enclosure where a 90°angle is required, and only use in dry locations.
FEATURES:
·Assembled with die cast locknut and tri-combo screws
·Insulated type are available.
| Cat.# | Trade Size |
| SQN050 | 1/2" |
| SQN075 | 3/4" |
| SQN100 | 1" |
| SQN125 | 1-1/4" |
| SQN150 | 1-1/2" |
| SQN200 | 2" |
PACKING INFORMATION
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
SQUEEZE CONNECTOR 90 DEGREE UL CERTIFICATION.pdf.pdf
