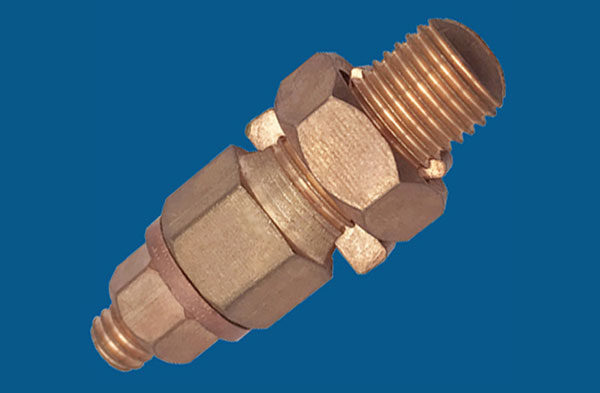

Split Bolt Connectors-With extra stud
Material : Cooper alloy
Surface Finish :
Type : With extra stud

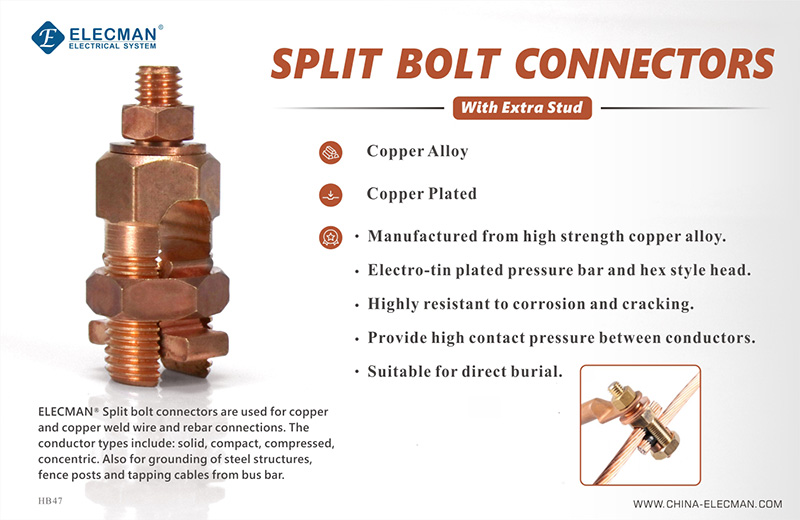

ELECMAN ® Split Bolt Connectors-With extra stud
PRODUCT: Split Bolt Connector
MATERIAL: Cooper alloy
TYPE: With extra stud
APPLICATION:
ELECMAN®Split bolt connectors with extra stud are used for copper and copperweld wire and rebar connections. the conductor types inculde: solid, compact, compressed, concentric. also for grounding of steel structures, fence posts and tapping cables from bus bar.
FEATURES:
·Manufactured from high strength copper alloy
·Electro-tin plated pressure bar and hex style head
·Provide high contact pressure between conductors
·Highly resistant to corrosion and cracking
·Suitable for direct burial

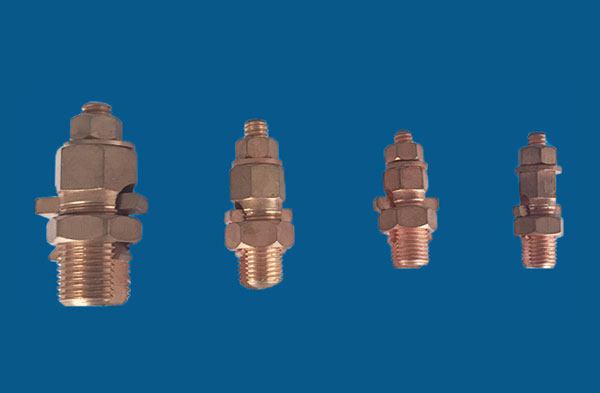

| Cat.# | Conductor Range | Corredera | Wire Diameter Range |
| AWG | Inch | ||
| SBCD-8 | 8 - 6 | 7/32" | 0.129 - 0.184 |
| SBCD-6 | 6 - 3 | 1/4" | 0.162 - 0.260 |
| SBCD-3 | 3 - 2 | 5/16" | 0.229 - 0.291 |
| SBCD-2 | 2 - 1/0 | 3/8" | 0.258 - 0.367 |
| Note: For the size of all wires, if there is no special explanation , all are American Wire Gauge (AWG) | |||
PACKING INFORMATION
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
