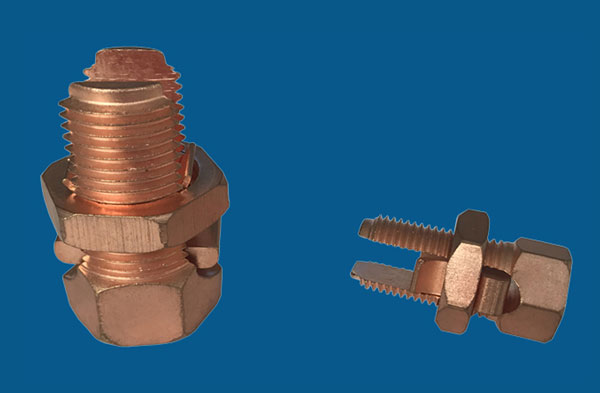

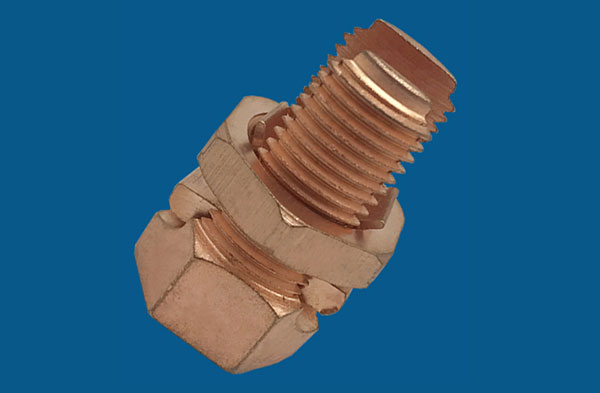

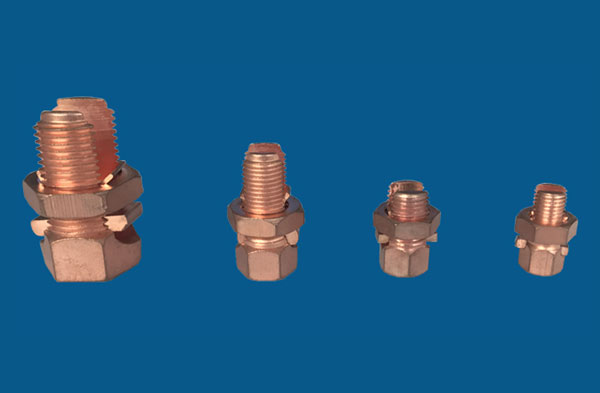

Split Bolt Connectors-H type
Material : Cooper alloy
Surface Finish :
Type : type H, high Strength
ELECMAN ® Split Bolt Connectors-H type
PRODUCT: Split Bolt Connector
MATERIAL: Cooper alloy
TYPE: H
APPLICATION:
ELECMAN®Split bolt connectors are used for copper and copperweld wire and rebar connections. the conductor types inculde: solid, compact, compressed, concentric.
FEATURES:
·Manufactured from high strength copper alloy
·Electro-tin plated pressure bar and hex style head
·Provide high contact pressure between conductors
·Highly resistant to corrosion and cracking
·Suitable for direct burial
| Cat.# | Range of Equal Main& Tap | Min.Tap W/ One Max. Main | Wire Diameter Range | Recommended Torque(IN-LB) |
| Inch | ||||
| SBCH-10 | 10 Str. - 16 Str. | 16 Str. | 0.057 - 0.116 | 80 |
| SBCH-8 | 8 Str. - 12 Str. | 14 Str. | 0.081 - 0.146 | 80 |
| SBCH-6 | 6 Sol.- 10 Sol. | 10 Sol. | 0.116 - 0.184 | 165 |
| SBCH-4 | 4 Sol.- 8 Sol. | 8 Sol. | 0.128 - 0.258 | 165 |
| SBCH-3 | 2 Sol.- 6 Sol. | 8 Sol. | 0.162 - 0.258 | 275 |
| SBCH-2 | 2 Str.- 6 Sol. | 10 Str. | 0.162 - 0.316 | 275 |
| SBCH-1/0 | 1/0 Str. - 6 Sol. | 10 Sol. | 0.162 - 0.375 | 385 |
| SBCH-2/0 | 2/0 Str - 6 Str. | 10 Sol. | 0.184 - 0.419 | 385 |
| SBCH-3/0 | 3/0 Str. - 4 Str. | 6 Sol. | 0.198 - 0.470 | 500 |
| SBCH-4/0 | 250 Kcmil - 4 Str. | 4 Sol. | 0.232 - 0.575 | 650 |
| Note: For the size of all wires, if there is no special explanation , all are American Wire Gauge (AWG) | ||||
PACKING INFORMATION
INTERNAL PACKING: Small carton box or self sealing plastic bag
EXTERNAL PACKING: Corrugated Carton
